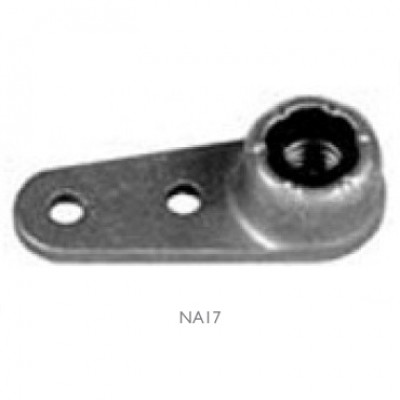

NA17 MS21080, NAS1025N K2000 MS21051, NAS682A, NAS1025A MK2000 MS21071, NAS696A Elastic-Insert Anchor Nut All Metal Anchor Nut (K1000-Full Size / MK1000-Miniature) |
The item is not the pictured item but is the correct one by description.
These miniature nut plates are great for applications that require a smaller footprint. The only thing to note is they are a little more difficult to install. What worked for me was to install a short machine screw to hold the nut plate with a cleco in the far end. Then, remove the cleco and use a rivet squeezer on the far end first. Remove the machine screw and install the second rivet.
Great service! Claudia went beyond normal expectations to find a source (NAS) of the one-leg anchor nut dimensions. Reasonably priced, quickly shipped.
These anchors are very light and very strong.
This all-metal fastener did just what I wanted it to do.
Worked great, small and compact, fits into tight spaces because most do not have a big fiber insert but rather a crimped metal one.

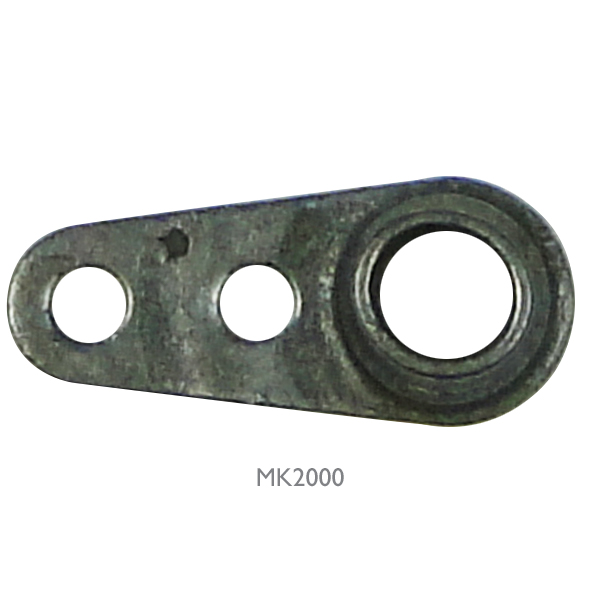

Yes, our part # MK2000-08 is MS21071L08 ANCHOR NUT.

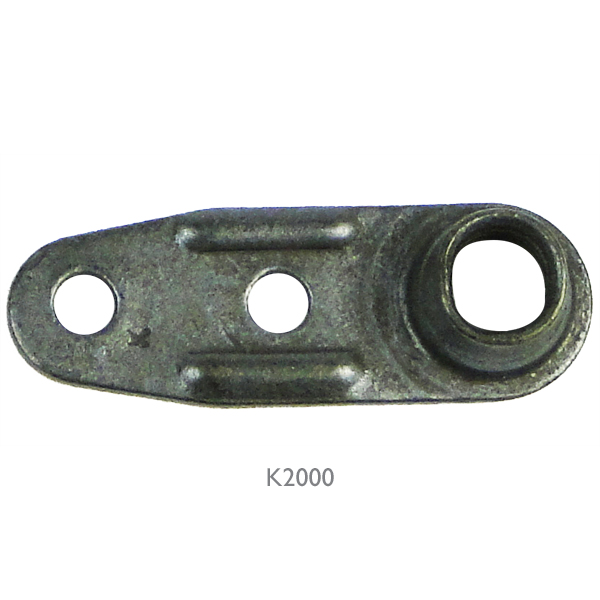

K2000-4 is MS21051L4.
0.716 inches long, 0.250 inches high, and Between 0.235 inches and 0.297 inches wide.
0.935" long, .250" high, .277" wide.
