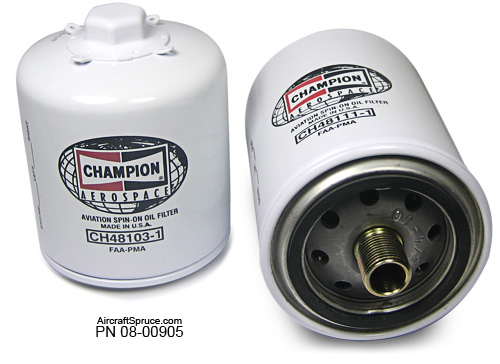

CHAMPION SPIN-ON OIL FILTERS

From $38.80 to $678.00
Description Part Number Buy
Individual
Buy
12 Pack
CH48103-1 Champion Oil Filter
08-00905
$42.50
Quantity
$485.00
Quantity
CH48104-1 Champion Oil Filter
08-00906
$42.50
Quantity
$481.00
Quantity
CH48108-1 Champion Oil Filter
08-00907
$42.50
Quantity
$470.00
Quantity
CH48109-1 Champion Oil Filter
08-00908
$42.50
Quantity
$476.00
Quantity
CH48110-1 Champion Oil Filter
08-00909
$42.50
Quantity
$485.00
Quantity
CH48111-1 Champion Oil Filter
08-00910
$42.50
Quantity
$481.00
Quantity
CH48114-1 Champion Oil Filter
08-07538
$56.75
Quantity
$678.00
Quantity
CFO-100-1 Champion Oil Filter
08-05921
$42.85
Quantity
--
CFO-101 Champion Oil Filter
08-03701
$38.80
Quantity
--
Subtotal $0.00
Add to Wishlist

Overview

Customers told Champion Aerospace the height of a standard oil filter can make it difficult for them to install the filter in certain engine applications. So, operating on the premise that size really does matter, they made their Champion oil filter can 1/2" shorter and, in the process, added design improvements that now make their filters stronger and more effective than ever before.

Champion Aerospaceís full-pleat, resin-impregnated micronic filter media traps all harmful particles, including metallic chips which result from abnormal engine wear. Because the oil flows through many layers of locked-in fibers, there is no migration of fiber material to clog engine oil passages or affect bearing surfaces. According to industry-approved tests, the Champion oil filter traps and holds more dirt and harmful particles during its normal operating time than any other similar filter.
  • Customers Also Viewed
  • Frequently Purchased With

Reviews

standard of the industry

Stuart T Verified Purchase

CH48109-1 CHAMPION OIL FILTER

September 8, 2021

We stock these filters

Lynn E Verified Purchase

CH48110-1 CHAMPION OIL FILTER

August 26, 2021

Best filter available for my Bonanza

R T Verified Purchase

CH48109-1 CHAMPION OIL FILTER

August 26, 2021

Good product as usual

William Verified Purchase

CH48110-1 CHAMPION OIL FILTER

August 24, 2021

Good oil filter

Jim C Verified Purchase

CH48110-1 CHAMPION OIL FILTER

August 20, 2021

Excellent as usual !!

George K Verified Purchase

CH48110-1 CHAMPION OIL FILTER

August 15, 2021

Easy to install, clear instructions for use, never had any leaks/issues

David T Verified Purchase

CH48110-1 CHAMPION OIL FILTER

August 13, 2021

Product is exactly what its supposed to be, oil filters. Aircraft Spruce however was fantastic. The filters came way quicker than I thought they would. I wasnt expecting them for a week with free delivery. The filters showed up in a couple days! Great job! Thank you

What A Verified Purchase

CH48103-1 CHAMPION OIL FILTER 12 PK

August 12, 2021

Tempest filters were out of stock, so I ordered champion. They will work fine.

Robertson C Verified Purchase

CH48110-1 CHAMPION OIL FILTER

August 7, 2021

Perfect fit, great filters!

David S Verified Purchase

CH48109-1 CHAMPION OIL FILTER

August 6, 2021

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Can you tell me what the -1 means in the CH48108-1? The filter that I currently have is just ES48108

The -1 at the end of a Champion oil filter indicates that it is the newest version of the filter, which is shorter than the original oil filter. The original size has not been available for several years. If you are replacing the ES48108, then the CH48108-1 (part number 08-00907) is the correct replacement.

Q: What is the difference between the Champion Oil Filter # CH48108-1 and the CH48109-1?

The CH48108-1 & CH48109-1 have the same mounting thread, but the CH48109-1 is a taller filter than the CH48108-1.

Q: Can I use a CH48104 in place of a CH48103 if I have the necessary clearance?

The CH48103-1 and CH48104-1 are interchangeable.

Q: Can the Champion CH48108, CH48109, and CH48110 oil filters be used interchangeably?

The CH48108-1 & CH48109-1 can be used interchangeably. The CH48109-1 is just longer than the CH48108-1, and both units have female threads for installation. The CH48110-1 has male threads and is interchangeable with the CH48111-1.

Q: What is the overall length of the CH48103-1 Champion oil filter?

The overall length is approximately 4-3/4".

Q: If I remember right, the CH48110-1 is just the shorter version of the CH48111-1, correct?

Yes, that is correct. CH48110-1 is the shorter version of the CH48111-1. Both have the same thread.

Q: I bought a Cessna 177B FG 1976 and the mechanics have been using the Champion CH48103-1 part oil filter. However, the Champion chart from your website specifies this part number for the RG with IO-360 200h.p. engine, and says to use CH48110-1 for my FG type airplane with the O-360 180h.p. engine. Are these 2 oil filters interchangeable, and what are the differences?

They are not interchangeable. The CH48103-1 has female threads and the CH48110-1 has male threads. There are two Champion documents we have listed. Each has a different filter for this application. This must be a misprint. Consult your A&P if you have concerns with the filter they are using. You may also want review your aircraft, or engine, parts manual.

Q: Does the Champion CH48108-1 filter have an internal check valve? I am looking for a filter that does not have an internal check valve.

This part does have a internal check valve. All current oil filters made by Champion and Tempest will have this.

Q: What oil filter goes on a Continental IO-240-B engine?

The recommended filter for the IO-240-B is the CH48108-1 according to the Champion application chart.

Q: Does Champion make an equivalent filter to the Tempest AA48162

No, they do not.
