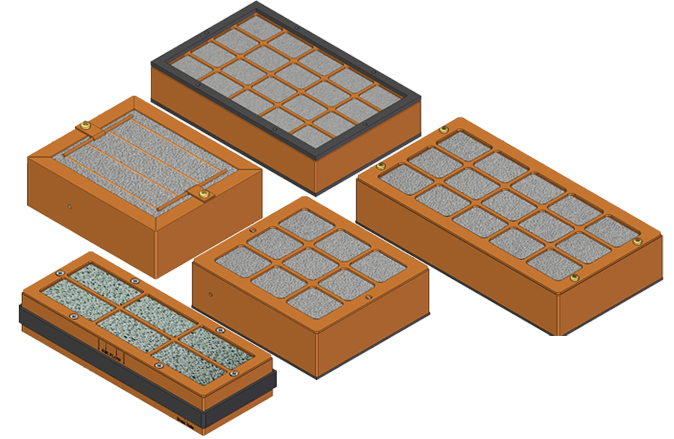

Brackett Air Filters

Quantity
Add to Wishlist

Overview

Note: if you know which air filter or element number you need, simply type it into the search to quickly locate the individual part's product page. If you don't know, please use this page as a guide to find what you need then use the drop-down selector to order the correct model number.

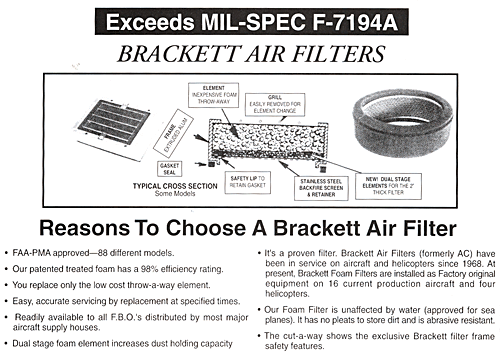

The specially treated polyurethane element in the Brackett filter assures near total protection from any foreign material entering the system. Repels water, fire retardant and has good air flow for proper fuel/air ratio. Has no pleats to collect dirt. Low-cost maintenance with increased engine life. FAA approved. Replace original air filter unit with a Brackett assembly. Thereafter, throw away element and replace with new one at minimal cost.

Partial List, request prices on unlisted Aircraft Applications.

Application Guide

BA3
Diameter: 6-5/8"x 11"
Thickness: 1"
Height: 3-5/4"
Weight: ..50 lbs (Approximate)
P/N BA3

BA4
Length: 13-1/2"
Width: 4-1/2"
Height: 1"
Weight: .14 lbs (Approximate)
P/N 08-00559

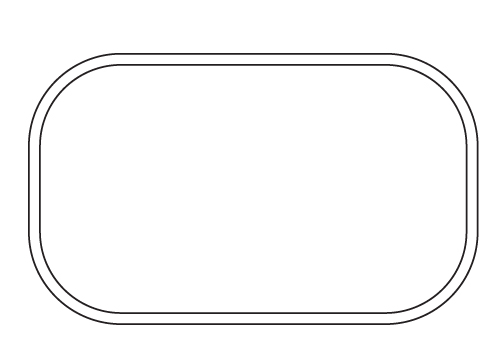

BA14
Length: 10-1/4"
Width: 3-1/2"
Height: 1"
Weight: .14 lbs (Approximate)
P/N BA14

BA16
Length: 5-15/16"
Width: 5-15/16"
Height: 1"
Weight: .04 lbs (Approximate)
P/N BA16
STC/Installation Sheet (PDF)

BA19
Length: 6-1/4"
Width: 3-3/4"
Height: 2"
Weight: .08 lbs (Approximate)
P/N BA19
STC/Installation Sheet (PDF)

BA21
Length: 17-3/8"
Width: 5-1/2"
Height: 2"
Weight: .26 lbs (Approximate)
P/N 08-01255

BA100
Length:10-7/8"
Width: 6-3/8"
Height: 2"
Weight: 1.1 lbs (Approximate)
P/N BA100
Element - BA7
STC/Installation Sheet (PDF)
View Mounting Attachment (PDF)

BA101
Length: 7-1/2"
Width: 7"
Height: 1"
Weight: .58 lbs (Approximate)
P/N BA101
Element - BA8
STC/Installation Sheet (PDF)
View Mounting Attachment (PDF)

BA102
Outer Diameter: 8-1/8"
Height: 4-1/8"
Weight: .62 lbs (Approximate)
Thickness: 1"
P/N 08-21102
Element - BA2
P/N 08-01249
STC/Installation Sheet (PDF)

BA103
Outer Diameter: 8-7/8"
Height: 5-3/4"
Weight: .70 lbs (Approximate)
Thickness: 1"
P/N 08-01250
Element - BA9
P/N 08-01251
STC/Installation Sheet (PDF)

BA104
Outer Diameter: 6-5/8 x 11"
Height: 3-5/8"
Weight: .50 lbs (Approximate)
Thickness: 1"
P/N BA104
Element - BA3
STC/Installation Sheet (PDF)

BA105
Outer Diameter: 8"
Height: 3-3/4"
Weight: .44 lbs (Approximate)
Thickness: 1"
P/N BA105
Element - BA10
STC/Installation Sheet (PDF)

BA106
Outer Diameter: 6"
Height: 3-1/2"
Weight: .34 lbs (Approximate)
Thickness: 1"
P/N BA106
Element - BA11
STC/Installation Sheet (PDF)

BA107
Outer Diameter: 6"
Height: 7-1/4"
Weight: .60 lbs (Approximate)
Thickness: 1"
P/N 08-05888
Element - BA12
P/N 08-02112
STC/Installation Sheet (PDF)

BA108
Outer Diameter: 6"
Height: 9-1/4"
Weight: 1.26 lbs (Approximate)
Thickness: 1"
P/N BA108
Element - BA13
STC/Installation Sheet (PDF)

BA109
Outer Diameter: 10-1/4"
Height: 3-1/2"
Weight: .56 lbs (Approximate)
Thickness: 1"
P/N BA109
Element - BA22
STC/Installation Sheet (PDF)

BA110
Outer Diameter: 8-1/8"
Height: 3-1/8"
Weight: .42 lbs (Approximate)
Thickness: 1"
P/N BA110
Element - BA23
P/N 08-02123
STC/Installation Sheet (PDF)

BA111
Outer Diameter: 4-5/8"
Height: 5-3/4"
Weight: .36lbs (Approximate)
Thickness: 1"
P/N BA111
Element - BA24
STC/Installation Sheet (PDF)

BA112
Outer Diameter: 6"
Height: 8-1/2"
Thickness: 1"
P/N 08-21112
Element - BA13
STC/Installation Sheet (PDF)

BA113
Outer Diameter: 6-1/2"
Thickness: 2"
Weight: .34 lbs. (Approximate)
P/N BA113
Element - BA25
STC/Installation Sheet (PDF)
NOTE: This is for the Navion A, but only those with the (E) Series Engine.

BA115
Outer Diameter: 10"
Height: 3-3/8"
Thickness: 1"
Weight: .54 lbs. (Approximate)
P/N BA115
Element - BA15
STC/Installation Sheet (PDF)

BA118
Outer Diameter: 6-3/16"
Inner Diameter: 4-2/5"
Height: 6-1/4"
Thickness: 7/8"
Weight: .56 lbs. (Approximate)
P/N 08-00118
Element - BA18
P/N 08-02118
STC/Installation Sheet (PDF)

BA120
Outer Diameter: 7-7/8"
Height: 2-5/8"
Thickness: 3/4"
Weight: .38 lbs. (Approximate)
P/N BA120
Element - BA20
STC/Installation Sheet (PDF)

BA121
Outer Diameter: 5-1/3"
Height: 3-1/2"
Thickness: 7/8"
Weight: .28 lbs. (Approximate)
P/N BA121
Element - BA27
STC/Installation Sheet (PDF)

BA151
Length: 9-7/8"
Width: 8-9/16"
Height: 2"
Weight: .76 lbs. (Approximate)
P/N 08-01243

Element - BA151E
P/N 08-01244

STC/Installation Sheet (PDF)

BA162
Length: 6-1/2"
Width: 3-3/4"
Height: 3/4"
Weight: .06lbs. (Approximate)
-----------

Element - BA162E
P/N 08-01257

STC/Installation Sheet (PDF)

BA2010
Length: 6"
Width: 6-1/2"
Height: 1"
Weight: .60 lbs (Approximate)
P/N BA2010
Element - BA6108
STC/Installation Sheet (PDF)
View Mounting Attachment (PDF)

BA2110
Length:10"
Width: 4-1/32"
Height: 2"
Weight: .74 lbs (Approximate)
P/N BA2110
Element - BA2305
STC/Installation Sheet (PDF)
View Mounting Attachment (PDF)

BA2210L
Length: 9"
Width: 4-1/4"
Height: 2"
Weight: .90 lbs (Approximate)
P/N BA2210L
Element - BA2205L
STC/Installation Sheet (PDF)
View Mounting Attachment (PDF)
BA2210R
Length: 9"
Width: 4-1/4"
Height: 2"
Weight: .90 lbs (Approximate)
P/N BA2210R
Element - BA2205R
STC/Installation Sheet (PDF)
View Mounting Attachment (PDF)

BA2310
Length:10"
Width: 4-1/32"
Height: 2"
Weight: .78 lbs (Approximate)
P/N BA2310
Element - BA2305
STC/Installation Sheet (PDF)

BA2410
Length:11-1/16"
Width: 5-13/16"
Height: 2"
Weight: 1.0 lbs (Approximate)
P/N BA2410
Element - BA2405
STC/Installation Sheet (PDF)

BA2510
Length:8-15/16"
Width: 6-1/2"
Height: 2"
Weight: 1.06 lbs (Approximate)
P/N BA2510
Element - BA2505
STC/Installation Sheet (PDF)
View Mounting Attachment (PDF)

BA2610L
Length: 10-13/32"
Width: 4-25/32"
Height: 2"
Weight: .50 lbs (Approximate)
P/N 08-05890
Element - BA2605L
P/N 08-00877
STC/Installation Sheet (PDF)
BA2610R
Length: 10-13/32"
Width: 4-25/32"
Height: 2"
Weight: .50 lbs (Approximate)
P/N 08-05903
Element - BA2605R
P/N 08-00878
STC/Installation Sheet (PDF)
BA2910
Length: 10"
Width: 4-1/2"
Height: 2"
Weight: .90 lbs (Approximate)
P/N 08-05891
Element - BA2905
STC/Installation Sheet (PDF)
View Mounting Attachment (PDF)

BA3110
Length: 8"
Width: 5"
Height: 2"
Weight: .84 lbs (Approximate)
P/N 08-01256
Element - BA7305
STC/Installation Sheet (PDF)
View Mounting Attachment (PDF)

BA3110A
Length: 8"
Width: 5"
Height: 2"
Weight: .70 lbs (Approximate)
P/N BA3110A
Element - BA7305
STC/Installation Sheet (PDF)
View Mounting Attachment (PDF)

BA3210
Length: 8"
Width: 6-1/2"
Height: 2"
Weight: .84 lbs (Approximate)
P/N BA3210
Element - BA3205
STC/Installation Sheet (PDF)
View Mounting Attachment (PDF)

BA3310
Length: 11-13/16"
Width: 7-9/16"
Height: 2"
Weight: 1.36 lbs (Approximate)
----------
Element - BA3305
P/N 08-01260
STC/Installation Sheet (PDF)
View Mounting Attachment (PDF)

BA3510
Length: 10-7/8"
Width: 5-5/8"
Height: 2"
Weight: 1.06 lbs (Approximate)
----------
Element - BA3505
P/N 08-03505
STC/Installation Sheet (PDF)
View Mounting Attachment (PDF)

BA3810
Diameter: 9-1/4"
Height: 2"
Weight: 1.06 lbs (Approximate)
----------
Element - BA3805
P/N 08-05892
STC/Installation Sheet (PDF)

BA3910
Length: 8-1/2"
Width: 5-5/8"
Height: 1"
Weight: .50 lbs (Approximate)
P/N BA3910
Element - BA3905
STC/Installation Sheet (PDF)

BA4010
Length: 10"
Width: 7"
Height: 3/4"
Weight: .64 lbs (Approximate)
P/N BA4010
Element - BA4005
STC/Installation Sheet (PDF)

BA4106
Length: 5"
Width: 5-1/2"
Height: 1"
Weight: .44 lbs (Approximate)
P/N BA4106
Element - BA4108
Gasket - BA4101
STC/Installation Sheet (PDF)
View Mounting Attachment (PDF)

BA4210
Length: 5"
Width: 5-1/2"
Height: 1"
Weight: .44 lbs (Approximate)
P/N BA4210
Element - BA4108
STC/Installation Sheet (PDF)
View Mounting Attachment (PDF)

BA4310
Length: 6"
Width: 5"
Height: 2"
Weight: .64 lbs (Approximate)
P/N 08-05893
Element - BA4305
STC/Installation Sheet (PDF)
View Mounting Attachment (PDF)

BA4510
Length: 10"
Width: 5-1/2"
Height: 2"
Weight: 1.00 lbs (Approximate)
----------
Element - BA4505
P/N 08-01258
STC/Installation Sheet (PDF)
View Mounting Attachment (PDF)

BA4810
Length: 10"
Width: 6-1/2"
Height: 2"
Weight: .98 lbs (Approximate)
----------
Element - BA4805
P/N 08-01245
STC/Installation Sheet (PDF)

BA5110
Length: 6"
Width: 6-1/2"
Height: 1"
P/N BA5110
Element - BA6108
STC/Installation Sheet (PDF)
View Mounting Attachment (PDF)

BA5110A
Length: 6"
Width: 6-1/2"
Height: 1"
Weight: .60 lbs (Approximate)
P/N BA5110A
Element - BA6108
STC/Installation Sheet (PDF)
View Mounting Attachment (PDF)

B5710
Length: 7-3/4"
Width: 6-15/16"
Height: 1"
Weight: .78 lbs (Approximate)
P/N BA5710
Element - BA5705
STC/Installation Sheet (PDF)
View Mounting Attachment (PDF)

BA5810
Length: 9"
Width: 5-5/8"
Height: 2"
Weight: .88 lbs (Approximate)
P/N 08-00879
Element - BA5805
STC/Installation Sheet (PDF)
View Mounting Attachment (PDF)

BA6110
Length: 6"
Width: 6-1/2"
Height: 1"
Weight: .62 lbs (Approximate)
P/N BA6110
Element - BA6108
STC/Installation Sheet (PDF)
View Mounting Attachment (PDF)

BA6210
Length: 8-23/64"
Width: 5"
Height: 2"
Weight: .84 lbs (Approximate)
P/N BA6210
Element - BA6205
STC/Installation Sheet (PDF)
View Mounting Attachment (PDF)

BA6210-1
Length: 8-1/4"
Width: 5"
Height: 2"
Weight: .74 lbs (Approximate)
P/N 08-01246
Element - BA6205
STC/Installation Sheet (PDF)

BA6310
Length: 6-3/4"
Width: 10-1/2"
Height: 1"
Weight: .50 lbs (Approximate)
P/N BA6310
Element - BA6305
STC/Installation Sheet (PDF)

BA7010
Length: 6-1/2"
Width: 5-7/8"
Height: 2"
Weight: .72 lbs (Approximate)
P/N 08-01247
Element - BA7005
P/N 08-01248
STC/Installation Sheet (PDF)
View Mounting Attachment (PDF)

BA7110
Length: 9-3/4"
Width: 5"
Height: 2"
Weight: .90 lbs (Approximate)
P/N BA7110
Element - BA7112
STC/Installation Sheet (PDF)
View Mounting Attachment (PDF)

BA7210
Length: 10"
Width: 5"
Height: 2"
Weight: .40 lbs (Approximate)
P/N BA7210
Element - BA7112
STC/Installation Sheet (PDF)
View Mounting Attachment (PDF)

BA7310
Length: 7-3/4"
Width: 5"
Height: 2"
Weight: .74 lbs (Approximate)
P/N BA7310
Element - BA7305
STC/Installation Sheet (PDF)
View Mounting Attachment (PDF)

BA7410
Length:10"
Width: 5"
Height: 2"
Weight: .92 lbs (Approximate)
P/N BA7410
Element - BA7112
STC/Installation Sheet (PDF)
View Mounting Attachment (PDF)

BA7510
Length:8-1/4"
Width: 5"
Height: 2"
Weight: .84 lbs (Approximate)
P/N BA7510
Element - BA7305
STC/Installation Sheet (PDF)
View Mounting Attachment (PDF)

BA7610
Length:10-7/16"
Width: 4"
Height: 2"
Weight: .84 lbs (Approximate)
P/N BA7610
Element - BA7605
STC/Installation Sheet (PDF)

BA7710
Length: 8-5/16"
Width: 6-1/8"
Height: 2"
Weight: .84 lbs (Approximate)
P/N BA7710
Element - BA7705
STC/Installation Sheet (PDF)
View Mounting Attachment (PDF)

BA7810
Length:8-1/4"
Width: 4-15/16"
Height: 2"
Weight: .54 lbs (Approximate)
P/N BA7810
Element - BA7805
STC/Installation Sheet (PDF)

BA8010
Length: 9"
Width: 7-1/16"
Height: 1"
Weight: .86 lbs (Approximate)
P/N BA8010
Element - BA8005
STC/Installation Sheet (PDF)
View Mounting Attachment (PDF)

BA8110
Length: 9-7/8"
Width: 6-1/2"
Height: 2"
P/N BA8110
Element - BA8103-1
STC/Installation Sheet (PDF)
View Mounting Attachment (PDF)

BA8210
Length: 11-13/32"
Width: 10"
Height: 2"
P/N 08-00888
Element - BA8205
STC/Installation Sheet (PDF)

BA8210-1
Length: 11-13/32"
Width: 10"
Height: 2"
Weight: 1.58 lbs. (Approximate)
P/N 08-01254
Element - BA8205
STC/Installation Sheet (PDF)

BA8310
Length: 27"
Width: 8-1/2"
Height: 1"
---------
Element - BA8305
P/N 08-08305
STC/Installation Sheet (PDF)

BA8410
Length: 10-1/4"
Width: 6-3/4"
Height: 2"
P/N BA8410
Element - BA8405
STC/Installation Sheet (PDF)

BA8610
Length: 8"
Width: 4-5/8"
Height: 2"
Weight: .44 lbs. (Approximate)
----------
Element - BA8605
P/N 08-08605
STC/Installation Sheet (PDF)

BA8710
Length: 10"
Width: 6-3/8"
Height: 2"
P/N 08-05895
Element - BA8705
STC/Installation Sheet (PDF)
View Mounting Attachment (PDF)

BA8810
Outer Diameter: 5"
Weight: .24 lbs. (Approximate)
P/N 08-05896
Element - BA8805
P/N 08-08805
STC/Installation Sheet (PDF)

BA8910
Length: 7"
Width: 6"
Height: 1"
Weight: .60 lbs. (Approximate)
P/N 08-05906
Element - BA8905
P/N 08-08905
STC/Installation Sheet (PDF)
View Mounting Attachment (PDF)

BA9110 (BA-S108K)
Length: 8-1/2"
Width: 5-1/4"
Height: 1"
Weight: .28 lbs. (Approximate)
P/N 08-05898
Element - BA9105 (S108K-05)
STC/Installation Sheet (PDF)
Replacement Element
BA2605L
BA7112
BA7605
BA7
BA11**
BA22
BA13
BA24
BA2505
BA8405
BA4108
BA6108
* On 2205 Elements, specify 2205R (right) or 2205L (left).
  • Accessories
  • Customers Also Viewed
  • Frequently Purchased With

Reviews

Filters air as advertised.

Corporate A Verified Purchase

BRACKETT AERO BA-7005 ELEMENT FOR BA-7010

July 4, 2022

Great

Keith C Verified Purchase

BRACKETT ELEMENT BA6108 FOR BA2010, BA5110, BA5110A BA6110

June 30, 2022

Good product, reasonable price

John S Verified Purchase

BRACKETT AERO BA-4108 ELEMENT FOR BA-4106

June 30, 2022

Part number required for aircraft. Removed and replaced.

Jay C Verified Purchase

BRACKETT AERO BA-17 ELEMENT FOR BA-117

June 24, 2022

Westminster C Verified Purchase

BRACKETT AERO BA-106 COMPLETE ASSEMBLY

June 23, 2022

Great!

Joseph P Verified Purchase

BRACKETT AERO BA-7305 ELEMENT FOR BA-7510

June 22, 2022

Much better than the cloth style filter my cub had on it before. Super simple to install.

Benjamin G Verified Purchase

BRACKETT AERO BA-4106 COMPLETE ASSEMBLY

June 21, 2022

Part arrived quickly and correct.

John W Verified Purchase

BRACKETT AERO BA-111 COMPLETE ASSEMBLY

June 21, 2022

Magaero L Verified Purchase

BRACKETT AERO BA-4108 ELEMENT FOR BA-4106

June 21, 2022

Works fine and good price

Chris K Verified Purchase

BRACKETT ELEMENT BA6108 FOR BA2010, BA5110, BA5110A BA6110

June 18, 2022

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the difference between Brackett BA5110 and BA5110A?

Per the supplier: The BA-5110A has airlocks for mounting and they are STC'd for different aircraft than the BA-5110.

Q: How can I obtain the foam gasket seal which goes in between the filter housing and the carb heat box? A new assembly comes with one but don't see the gasket seals listed as replacement parts. Specifically, I'm looking for the gasket seal for Model BA-4106, Rev. D.

Yes, you can order just the gasket. Search part number BA4101 (BRACKETT AERO 4101 GASKET FOR BA-4106) on our website to order.

Q: Does the filter assembly produce type come with a filter element or will that have to be ordered separately?

The assembly will have an element included.

Q: Do you have the BA235E?

Yes, BA253E is our part number 08-14690. You can type 08-14690 directly into the search bar to go to the ordering page.

View in Catalog

View Image View in Catalog
