Donaldson | OEM | Description | PN | Buy |
---|---|---|---|---|
P107150 | C-294510-0201, 13203 | C-150/152 & Various others Engine Intake air filter | 08-06027 | $240.95 |
P107172 | C-294510-0301, 13219 | C-170/172 Engine Intake air filter | 08-06024 | $236.95 |
P15-1936 | PS600073 / 561-020 | Piper PA-32R *(Engine Intake air filter) | 08-06029 | $161.90 |
P107336 | C-294510-0401 | C-172XP/ 337 Engine Intake air filter | 08-06038 | $233.95 |
AM102035FP | C-294510-0501 | Engine Intake air filter | 08-06052 | $365.00 |
P106150 | 0750038-4 | C-180/182/185 Engine Intake air filter | 08-06023 | $243.95 |
P131367 | C-294510-0901 | TR182/182R Engine Intake air filter | 08-06042 | $748.00 |
AM102135FP | 1250704-3 | C-206/207/210 Engine Intake air filter | 08-06033 | $340.00 |
AM102235FP | 1250704-4 | C-210 Engine Intake air filter | 08-06046 | $331.00 |
P107210 | 1250846-1 | T206/T207/T210 Engine Intake air filter | 08-06047 | $357.00 |
P131364 | C-294510-0801 | T210N/P Engine Intake air filter | 08-06049 | $290.95 |
P108421 | 99100181 | T310/320/335/401/402/421 Engine Intake air filter | 08-06056 | $218.95 |
P109337 | C-294510-0701 | 337/T337 Engine Intake air filter | 08-06051 | $398.00 |
AM102735EA | 9910018-2 | 310/401/402 Engine Intake air filter | 08-06054 | $227.95 |
AM102935EA | 9910200-1 | 310R Engine Intake air filter | 08-06055 | $311.00 |
P128156 | 9913001-1 | 340/414 Engine Intake air filter | 08-06028 | $189.75 |
P128157 | 9910141-1 | 404 Engine Intake air filter | 08-06057 | $295.95 |
EBG03-0001 | C-294501-0101 | Instrument Air Filter Assembly, Cover & Filter element | 08-06059 | $744.00 |
P105290 | C-294501-0203 | Replaceable instrument Instrument air filter only, part of EBG03-0002 assy | 08-06060 | $81.75 |
AM103435IA | C-294501-0301 | Instrument Air Filter | 08-06035 | $140.75 |
AM103535IA | C-294501-0302 | Instrument Air Filter | 08-06036 | $132.75 |
P130374 | 45-91210, 13917 | Debonair & Early Bonanza Engine Intake air filter | 08-06062 | $561.00 |
P105304 | 35-380035-5, -1 | Bonanza Engine Intake air filter | 08-06032 | $281.95 |
P137627 | 35-380035-7 | Bonanza Engine Intake air filter | 08-06026 | $180.75 |
P136680 | 105-389000-3 | B76 Engine Intake air filter | 08-06063 | $266.95 |
P133881 | P13-3881 | B77 Engine Intake air filter | 08-06064 | $291.95 |

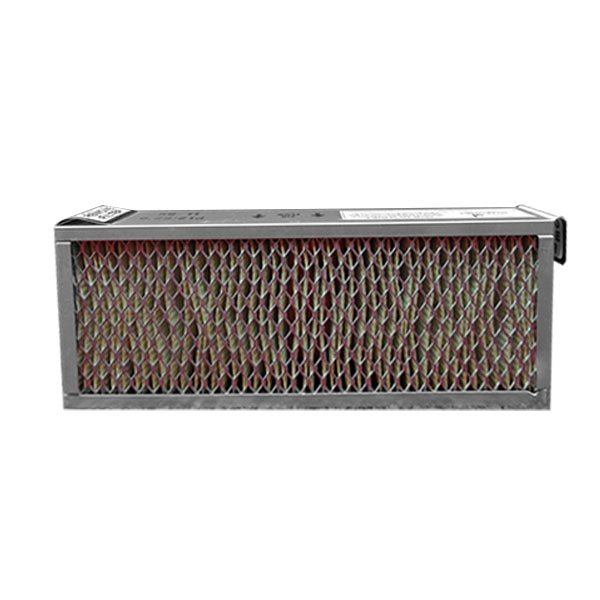

P128219 | P12-8219, 122601, AM101020FP | 95-55, A55, B55 Baron Engine Intake air filter | 08-06065 | $117.75 |
P127996 | P12-7996, 121128-2, AM101120FP | C55, D55, E55 & 58 Baron Engine Intake air filter | 08-06066 | $182.75 |
P12-8167 | 96-389005-1 | E55 & 58 Baron Engine Intake air filter | 08-06025 | $158.90 |
P108700 | 50-389070-15 | Duke Engine Intake air filter | 08-06067 | $295.95 |

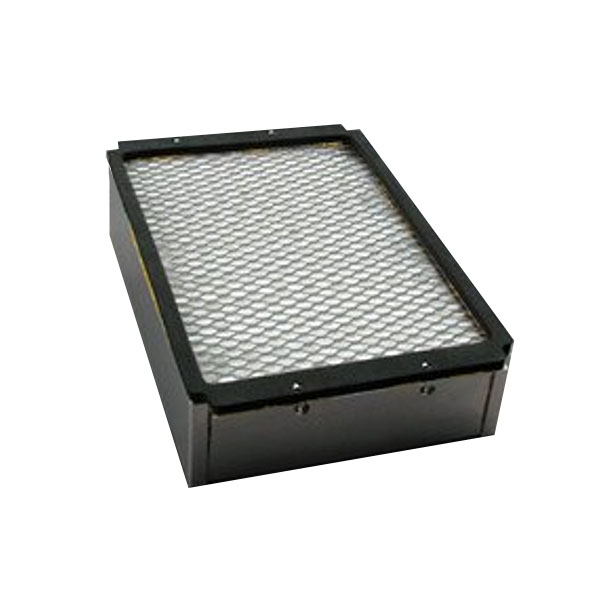

P124439 | 50-389070-23 | 58P Baron Engine Intake air filter | 08-06069 | $118.99 |
P105798 / AM101720FP | 50-389070-11 | A65, 70, B80 Engine Intake air filter | 08-06070 | $157.75 |
EBG03-0003 | 205538-089 | Instrument air filter | 08-06072 | $302.00 |
EBG03-0018 | 101-380039-1 | King Air Instrument air filter | 08-06034 | $107.75 |
P136602 | 560-584 | PA-28-236 Engine Intake air filter | 08-06074 | $296.95 |
P138683 | 560-904 | PA-28-236 Engine Intake air filter | 08-06075 | $637.00 |
P106590 | 560-747 | PA-31 Engine Intake air filter | 08-06076 | $170.75 |
460-609 | PA-31P Engine Intake air filter | 08-06077 | $439.00 | |
P136739 | 560-947 | PA-32 Engine Intake air filter | 08-06078 | $433.00 |
P138580 | 86881-2, 560-953 | PA-44T Engine Intake air filter | 08-06080 | $802.00 |
AM108365FP | P13-6287 | M20K Engine Intake air filter | 08-06081 | $362.00 |
204418-156 | 77852 | Lycoming Engine Spin on oil Filter adapter | 08-06037 | $346.00 |
P11-0172 | C-294510-0601 | Engine Intake air filter | 08-06228 | $626.00 |
P198281 | P198281, CA3559 | 172R & 172S Engine Intake Filter | 08-07051 | $196.99 |
P198290 | P198290, CA3717 | 182S Engine Intake Filter | 08-07052 | $244.95 |
P197268 | P197268 | T206H Engine Intake Filter | 08-07053 | $383.00 |
P13-0234 | 125997-010, BA6210 | M20J Engine Intake Filter | 08-07054 | $227.95 |
ED04011 | 600417-501 | M20K (s/n 25-1000 and up) engine intake Filter | 08-07055 | $249.95 |
ED04028 | 600417-503 | M20M/R/S Engine Intake Filter | 08-07056 | $200.75 |
P10-5225 | C-294501-0103 | Various Instrument Air Filter | 08-07057 | $89.75 |
P617058 | 460-632 | Oval Piper Filter PA28/PA34 | 08-07276 | $169.75 |
P617053 | 460-630 | Round Piper Filter PA28/PA44 | 08-07277 | $158.75 |
P617774 | 460-629 | Round Piper Filter PA23-250 (s/n 27-2505 and up)/PA32 | 08-07278 | $146.75 |
WF334552 | 3029268 Alternate 3028856, 3029267 P-1018 | Pratt & Whitney Canada (Various Aircraft) | 08-15979 | $351.00 |
WF336238 | 3038142 P-1139 | Pratt & Whitney Canada (Various Aircraft) | 08-15983 | $456.00 |
-- | 9546982 HBC, 6260A77 M0 | Mooney M20J & M20K Air Filter Assembly Cover & Filter | 08-15994 | $123.75 |

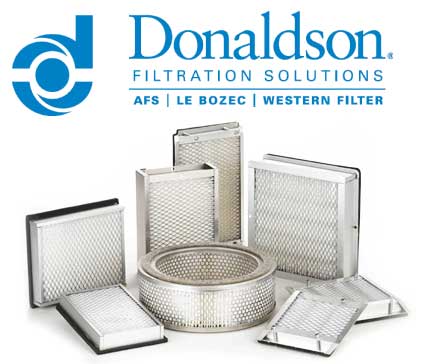

Donaldson has been the OEM source for Cessna, Piper, Beechcraft, and Maule & Mooney since the 1960's. They currently supply Cessna all of their SE Piston aircraft filters, Beech Bonanza & Baron filters, Mooney & Maul with their filters. For Piper they currently supply all of their Turbo charge aircraft with filters. Factory authorized distributor for Donaldson filters
*Images are representative of the product and may not be the exact item shown. |
Great Product
Donaldson Air Filter P10-6150
Very nice PT6 P3 filter. Much less expensive then the P&W Part.
Donaldson P3 Compressor Air Filter Element
decent price
Donaldson Oil Filter Adapter 204418-156
Quality PMA part, perfect fit replacement part.
Donaldson Oil Filter Adapter 204418-156
Great product - a little high on price
Donaldson Filter ED04011 M20K
This Donaldson filter for an A36 did not include the foam seal to seal the gasket to the airbox. It is needed and even the instructions reference making sure it is applied to the filter. Whats worse is trying to get a hold of Donaldson customer support via the contact numbers on the Donaldson box. Contacted Spruce Customer Service and waiting on a reply. In the meantime, Im in a holding pattern and the A36 is not in the air. I trust in Spruce to help me with this in a timely manner.
Donaldson Air Filter P13-7627
Donaldson Filter P198281
Good product
Donaldson Filter P198281
Donaldson Air Filter P10-7150
It fit perfect
Donaldson Air Filter P10-7150
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Per Donaldson: Yes, these filters do in fact feature our Synthetic Pleated media. AD 84-26-02 calls out paper filters or cellulose based filter media. Donaldson no longer manufacture any General Aviation filters with cellulose (paper) filter media.
The filter assembly has a foam tape seal and the fasteners are included.
It does not come with oring/packing.
The OD is 6", the ID is 4" and the height is 7".
Yes, 8130 domestic paperwork is included.
