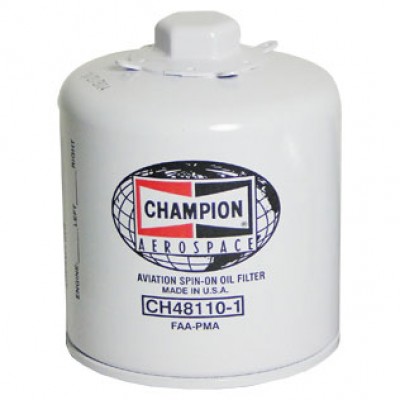

CH48110-1 Champion Oil Filter

153 Reviews 7 Answered Questions
Packaged Items
SingleCase of 6Case of 12
Quantity
Add to Wishlist View More In This Series →

Overview

Spin-On Oil Filter CH48110-1 by Champion. Replaces oil filter element. Easy to install. Saves time and clean-up. FAA Approved.

Customers told Champion Aerospace the height of a standard oil filter can make it difficult for them to install the filter in certain engine applications. So, operating on the premise that size really does matter, they made their Champion oil filter can 1/2" shorter and, in the process, added design improvements that now make their filters stronger and more effective than ever before.

Champion Aerospace’s full-pleat, resin-impregnated micronic filter media traps all harmful particles, including metallic chips which result from abnormal engine wear. Because the oil flows through many layers of locked-in fibers, there is no migration of fiber material to clog engine oil passages or affect bearing surfaces. According to industry-approved tests, the Champion oil filter traps and holds more dirt and harmful particles during its normal operating time than any other similar filter.

Features

  • Replacement elements service engine-mounted or line-installed filter systems incorporating a permanent housing assembly.
  • All sizes of replacement elements are packed 12 per case of a single part number in heavy, re-shippable corrugated-board cartons
  • Modern spin-on oil filters contain the element, incorporating the anti-drain back valve mechanism (and internal bypass valve 48108-1/48109-1), and are sealed in a disposable housing.
  • All sizes of spin-on filters are packed 12 per case of a single part number in heavy, re-shippable corrugated-board cartons.
  • Silicone impregnated filter gasket aids in future removal.
  • Shorter stud length on CH 48110-1 for tight clearance applications.
  • Heavy, corrugated steel center tube supports each convoluted pleat of the filter element and produces a substantially higher collapse-pressure rating, twice that of other similar filters.
  • Maximum full-flow design, without interference from center-bolt oil filter assemblies, provides increased oil filtration each engine-operating hour.

Specifications

Aircraft Type
Cessna, Piper, Mooney,
Beech Musketeer,
and Travel Air		 51/2"H

Documents

  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Submit a Review

Christopher C Verified Purchase

CH48110-1 Champion Oil Filter
October 2, 2025

Scott H Verified Purchase

CH48110-1 Champion Oil Filter 12 Pack
September 18, 2025

Yep. It’s an oil filter

Custom A Verified Purchase

CH48110-1 Champion Oil Filter
September 5, 2025

Mark K Verified Purchase

CH48110-1 Champion Oil Filter
September 3, 2025

Never had a problem with these filters they are my choice.

Craig M Verified Purchase

CH48110-1 Champion Oil Filter
September 3, 2025

Overpriced

Adam J Verified Purchase

CH48110-1 Champion Oil Filter
August 26, 2025

Better than Tempest, but not cheaper

Chuck W Verified Purchase

CH48110-1 Champion Oil Filter
July 13, 2025

Good product in convenient packaging

Donald A Verified Purchase

CH48110-1 Champion Oil Filter
July 12, 2025

Always used this filter on PA-28-180. Very happy with it.

Ibrahim G Verified Purchase

CH48110-1 Champion Oil Filter
July 10, 2025

Thank you Jim, I ordered this for my upcoming annual inspection on my 1969 Piper Cherokee D PA28-180. I have used the oil filter and the air filter in previous years. Both excellent products and no complaints. Sincerely JT Sickles.

Jacqueline T Verified Purchase

CH48110-1 Champion Oil Filter
July 2, 2025

Q&A

Submit

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the outer diameter of a Champion CH48110-1 oil filter?

The OD of this oil filter is approximately 3.7".

Q: Are the CH48110 and CH48110-1 the same?

Yes, these are the same.

Q: What is the difference between the ch48108 and the 48110?

The CH48110 filter has a male thread on the bottom of the filter, the CH48108 has a female thread.

Q: Im currently running a Champion 48110-2 filter - is the 48110-1 a replacement? Lycoming o-320 in a Vans RV-9

Yes, the 48110-1 has the same application as the 48110-2.

Q: What filter made by Tempest would be an equivalent to CH48110-1?

That would be AA48110-2, Part# 08-01270.

Q: What is tempest replacement for the CH48108-1?

That would be a AA48108-2 Part# 08-01268.

Q: Whats the sealing gasket material on the Champion Spin-On Oil Filters?

Silicone.
