Material | Part No. | Thread | Length | Price | Buy |
---|---|---|---|---|---|
Cad Plated | MS24693-S4 | 4-40 | 3/8 | $0.09 | |
Cad Plated | MS24693-S5 | 4-40 | 7/16 | $0.08 | |
Cad Plated | MS24693-S6 | 4-40 | 1/2 | $0.11 | |
Cad Plated | MS24693-S7 | 4-40 | 5/8 | $0.09 | |
Cad Plated | MS24693-S10 | 4-40 | 1 | $0.17 | |
Cad Plated | MS24693-S17 | 2-56 | 5/32 | $0.42 | |
Cad Plated | MS24693-S24 | 6-32 | 1/4 | $0.09 | |
Cad Plated | MS24693-S26 | 6-32 | 3/8 | $0.11 | |
Cad Plated | MS24693-S28 | 6-32 | 1/2 | $0.11 | |
Cad Plated | MS24693-S29 | 6-32 | 5/8 | $0.11 | |
Cad Plated | MS24693-S30 | 6-32 | 3/4 | $0.12 | |
Cad Plated | MS24693-S31 | 6-32 | 7/8 | $0.14 | |
Cad Plated | MS24693-S32 | 6-32 | 1 | $0.14 | |
Cad Plated | MS24693-S34 | 6-32 | 1-1/4 | $0.14 | |
Cad Plated | MS24693-S36 | 6-32 | 1-1/2 | $0.25 | |
Cad Plated | MS24693-S40 | 6-32 | 2 | $0.31 | |
Cad Plated | MS24693-S46 | 8-32 | 1/4 | $0.09 | |
Cad Plated | MS24693-S48 | 8-32 | 3/8 | $0.12 | |
Cad Plated | MS24693-S50 | 8-32 | 1/2 | $0.12 | |
Cad Plated | MS24693-S51 | 8-32 | 5/8 | $0.15 | |
Cad Plated | MS24693-S52 | 8-32 | 3/4 | $0.14 | |
Cad Plated | MS24693-S53 | 8-32 | 7/8 | $0.12 | |
Cad Plated | MS24693-S54 | 8-32 | 1 | $0.18 | |
Cad Plated | MS24693-S56 | 8-32 | 1-1/4 | $0.17 | |
Cad Plated | MS24693-S58 | 8-32 | 1-1/2 | $0.23 | |
Cad Plated | MS24693-S62 | 8-32 | 2 | $0.52 | |
Cad Plated | MS24693-S66 | 8-32 | 3 | $0.56 | |
Cad Plated | MS24693-S268 | 10-32 | 1/4 | $0.17 | |
Cad Plated | MS24693-S270 | 10-32 | 3/8 | $0.11 | |
Cad Plated | MS24693-S271 | 10-32 | 7/16 | $0.14 | |
Cad Plated | MS24693-S272 | 10-32 | 1/2 | $0.14 | |
Cad Plated | MS24693-S273 | 10-32 | 5/8 | $0.17 | |
Cad Plated | MS24693-S274 | 10-32 | 3/4 | $0.17 | |
Cad Plated | MS24693-S276 | 10-32 | 1 | $0.21 | |
Cad Plated | MS24693-S278 | 10-32 | 1-1/4 | $0.25 | |
Cad Plated | MS24693-S280 | 10-32 | 1-1/2 | $0.24 | |
Cad Plated | MS24693-S284 | 10-32 | 2 | $0.65 | |
Cad Plated | MS24693-S286 | 10-32 | 2-1/2 | $0.89 | |
Cad Plated | MS24693-S288 | 10-32 | 3 | $2.25 | |
Cad Plated | MS24693-S294 | 1/4-28 | 1/2 | $0.39 | |
Cad Plated | MS24693-S295 | 1/4-28 | 5/8 | $0.28 | |
Cad Plated | MS24693-S296 | 1/4-28 | 3/4 | $0.24 | |
Cad Plated | MS24693-S298 | 1/4-28 | 1 | $0.34 | |
Stainless Steel | MS24693-C4 | 4-40 | 3/8 | $0.09 | |
Stainless Steel | MS24693-C5 | 4-40 | 7/16 | $0.09 | |
Stainless Steel | MS24693-C6 | 4-40 | 1/2 | $0.09 | |
Stainless Steel | MS24693-C7 | 4-40 | 5/8 | $0.14 | |
Stainless Steel | MS24693-C10 | 4-40 | 1 | $0.12 | |
Stainless Steel | MS24693-C24 | 6-32 | 1/4 | $0.09 | |
Stainless Steel | MS24693-C26 | 6-32 | 3/8 | $0.12 | |
Stainless Steel | MS24693-C27 | 6-32 | 7/16 | $0.11 | |
Stainless Steel | MS24693-C28 | 6-32 | 1/2 | $0.15 | |
Stainless Steel | MS24693-C29 | 6-32 | 5/8 | $0.12 | |
Stainless Steel | MS24693-C30 | 6-32 | 3/4 | $0.17 | |
Stainless Steel | MS24693-C32 | 6-32 | 1 | $0.17 | |
Stainless Steel | MS24693-C46 | 8-32 | 1/4 | $0.14 | |
Stainless Steel | MS24693-C48 | 8-32 | 3/8 | $0.15 | |
Stainless Steel | MS24693-C49 | 8-32 | 7/16 | $0.14 | |
Stainless Steel | MS24693-C50 | 8-32 | 1/2 | $0.14 | |
Stainless Steel | MS24693-C51 | 8-32 | 5/8 | $0.18 | |
Stainless Steel | MS24693-C52 | 8-32 | 3/4 | $0.15 | |
Stainless Steel | MS24693-C53 | 8-32 | 7/8 | $0.21 | |
Stainless Steel | MS24693-C54 | 8-32 | 1 | $0.20 | |
Stainless Steel | MS24693-C56 | 8-32 | 1-1/4 | $0.25 | |
Stainless Steel | MS24693-C268 | 10-32 | 1/4 | $0.21 | |
Stainless Steel | MS24693-C270 | 10-32 | 3/8 | $0.14 | |
Stainless Steel | MS24693-C271 | 10-32 | 7/16 | $0.21 | |
Stainless Steel | MS24693-C272 | 10-32 | 1/2 | $0.23 | |
Stainless Steel | MS24693-C273 | 10-32 | 5/8 | $0.25 | |
Stainless Steel | MS24693-C274 | 10-32 | 3/4 | $0.28 | |
Stainless Steel | MS24693-C276 | 10-32 | 1 | $0.31 | |
Stainless Steel | MS24693-C278 | 10-32 | 1-1/4 | $0.33 | |
Stainless Steel | MS24693-C293 | 1/4-28 | 7/16 | $0.39 | |
Stainless Steel | MS24693-C294 | 1/4-28 | 1/2 | $0.40 | |
Stainless Steel | MS24693-C295 | 1/4-28 | 5/8 | $0.62 | |
Stainless Steel | MS24693-C296 | -- | -- | $2.42 | |
Stainless Steel | MS24693-C298 | 1/4-28 | 1 | $0.58 | |
Black Brass | MS24693-BB10 | 4-40 | 1 | $2.17 | |
Black Brass | MS24693-BB34 | 6-32 | 1-1/4 | $0.24 | |
Black Brass | MS24693-BB36 | 6-32 | 1-1/2 | $0.45 |
These non-structural screws have a flat countersunk head, 100° cross recessed head.
(-C #'s) Cleaned and descaled, corrosion restistant steel (-S #'s) Cadmium plated carbon steel (-BB #'s) Black chemical finish brass |
Great product
SS MACHINE SCREW MS24693C28
met all expectations
SS MACHINE SCREW MS24693C50
Lovely screws. However, the packages were correct but the screws were the wrong size. Contacted Spruce and they quickly resent new packages but they were still incorrectly packaged screws. 632R6s in 632R8 labeled packages. Unusual for Spruce as, they are usually right on, with very few mistakes.
SS MACHINE SCREW MS24693C28
MACHINE SCREW SS MS24693C272
SS MACHINE SCREW MS24693C276
ok
MS24693S5 CAD MACHINE SCREW
SS MACHINE SCREW MS24693C270
SS MACHINE SCREW MS24693C271 / AN507C10R7
SS MACHINE SCREW MS24693C28
MACHINE SCREW SS MS24693C272
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Yes, these screws are threaded the entire length.
The MS24694 countersunk screw length is measured from the top of screw head to the bottom of the screw.
Yes, they are a little magnetic. Not as magnetic as CAD plated steel screws.

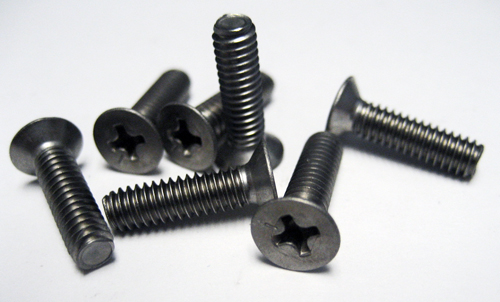

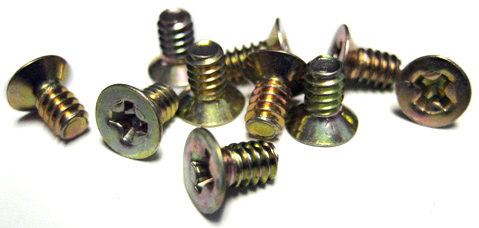

Cadmium plated are gold in color. Stainless are silver. That is why there are two different colors shown.
