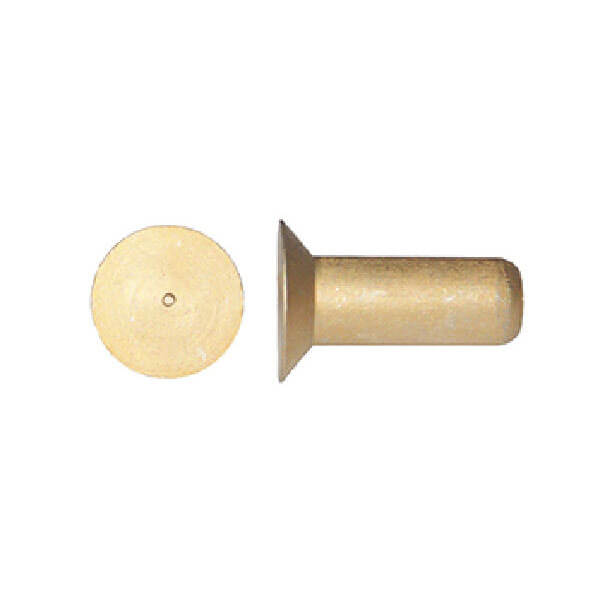

Solid Aluminum Rivets - Countersunk Head - AN426

From $23.50 to $132.75
Part No. Type Dia. x Length Qty./Lb. Price Buy / Lb
(.13, .25, 1, etc)
AN426AD-3-2
2117 Hard3/32 x 1/86406$100.75
Quantity
AN426AD-3-3
2117 Hard3/32 x 3/165003$71.75
Quantity
AN426AD-3-3.5
2117 Hard3/32 x 7/325618$68.95
Quantity
AN426AD-3-4
2117 Hard3/32 x 1/44103$68.95
Quantity
AN426AD-3-5
2117 Hard3/32 x 5/163478$64.75
Quantity
AN426AD-3-6
2117 Hard3/32 x 3/83018$54.75
Quantity
AN426AD-3-7
2117 Hard3/32 x 7/162666$58.75
Quantity
AN426AD-3-8
2117 Hard3/32 x 1/22161$57.75
Quantity
AN426AD3-9
2117 Hard3/32 x 9/16--$55.90
Quantity
AN426AD-3-10
2117 Hard3/32 x 5/81817$43.50
Quantity
AN426AD-3-12
2117 Hard3/32 x 3/41640$43.75
Quantity
AN426AD-3-14
2117 Hard3/32 x 7/81567$43.50
Quantity
AN426AD-3-16
2117 Hard3/32 x 11378$54.75
Quantity
AN426AD-4-2
2117 Hard1/8 x 1/8--$104.75
Quantity
AN426AD-4-3
2117 Hard1/8 x 3/162810$55.90
Quantity
AN426AD-4-4
2117 Hard1/8 x 1/42308$43.50
Quantity
AN426AD-4-5
2117 Hard1/8 x 5/161958$41.50
Quantity
AN426AD-4-6
2117 Hard1/8 x 3/81700$43.85
Quantity
AN426AD-4-7
2117 Hard1/8 x 7/161502$35.50
Quantity
AN426AD-4-8
2117 Hard1/8 x 1/21346$33.85
Quantity
AN426AD-4-9
2117 Hard1/8 x 9/161219$31.50
Quantity
AN426AD-4-10
2117 Hard1/8 x 5/81025$29.70
Quantity
AN426AD-4-12
2117 Hard1/8 x 3/4885$33.85
Quantity
AN426AD-4-13
2117 Hard1/8 x 13/16797$39.50
Quantity
AN426AD-4-14
2117 Hard1/8 x 7/8631$42.50
Quantity
AN426AD-4-16
2117 Hard1/8 x 1592$33.50
Quantity
AN426AD-4-20
2117 Hard1/8 x 1-1/4467$46.50
Quantity
AN426AD-4-22
2117 Hard1/8 x 1-3/8328$44.50
Quantity
AN426AD-5-3
2117 Hard5/32 x 3/161800$39.50
Quantity
AN426AD-5-4
2117 Hard5/32 x 1/41440$38.50
Quantity
AN426AD-5-5
2117 Hard5/32 x 5/161226$33.85
Quantity
AN426AD-5-6
2117 Hard5/32 x 3/81079$30.50
Quantity
AN426AD-5-7
2117 Hard5/32 x 7/16946$31.50
Quantity
AN426AD-5-8
2117 Hard5/32 x 1/2849$29.95
Quantity
AN426AD-5-9
2117 Hard5/32 x 9/16770$33.85
Quantity
AN426AD-5-10
2117 Hard5/32 x 5/8649$29.70
Quantity
AN426AD-5-12
2117 Hard5/32 x 3/4494$32.60
Quantity
AN426AD-5-16
2117 Hard5/32 x 1450$31.50
Quantity
AN426AD-5-22
2117 Hard5/32 x 1-3/8368$35.85
Quantity
AN426AD-6-4
2117 Hard3/16x1/41134$37.95
Quantity
AN426AD-6-5
2117 Hard3/16 x 5/16846$32.50
Quantity
AN426AD-6-6
2117 Hard3/16 x 3/8--$32.85
Quantity
AN426AD-6-7
2117 Hard3/16 x 7/16728$26.95
Quantity
AN426AD-6-8
2117 Hard3/16 x 1/2--$23.50
Quantity
AN426AD-6-9
2117 Hard3/16 x 9/16550$27.50
Quantity
AN426AD-6-10
2117 Hard3/16 x 5/8451$26.95
Quantity
AN426AD-6-14
2117 Hard3/16 x 7/8390$32.50
Quantity
AN426A-3-2
1100 Soft3/32 x 1/86406$132.75
Quantity
AN426A-3-3
1100 Soft3/32 x 3/165003$93.75
Quantity
AN426A-3-4
1100 Soft3/32 x 1/44103$63.75
Quantity
AN426A-3-5
1100 Soft3/32 x 5/163478$64.75
Quantity
AN426A-3-6
1100 Soft3/32 x 3/83018$65.75
Quantity
AN426A-3-7
1100 Soft3/32 x 7/162666$57.75
Quantity
AN426A-3-8
1100 Soft3/32 x 1/22161$71.75
Quantity
AN426A-3-10
1100 Soft3/32 x 5/81817$68.75
Quantity
AN426A-3-12
1100 Soft3/32 x 3/41640$40.75
Quantity
AN426A-3-14
1100 Soft3/32 x 7/81567$75.75
Quantity
AN426A-3-16
1100 Soft3/32 x 11378$61.75
Quantity
AN426A-4-3
1100 Soft1/8 x 3/162810$60.75
Quantity
AN426A-4-4
1100 Soft1/8 x 1/42308$46.65
Quantity
AN426A-4-5
1100 Soft1/8 x 5/161958$46.60
Quantity
AN426A-4-6
1100 Soft1/8 x 3/81700$46.55
Quantity
AN426A-4-7
1100 Soft1/8 x 7/161502$39.50
Quantity
AN426A-4-8
1100 Soft1/8 x 1/21346$36.60
Quantity
AN426A-4-9
1100 Soft1/8 x 9/161219$46.50
Quantity
AN426A-4-10
1100 Soft1/8 x 5/81025$34.50
Quantity
AN426A-4-12
1100 Soft1/8 x 3/4885$43.50
Quantity
AN426A-4-14
1100 Soft1/8 x 7/8631$38.50
Quantity
AN426A-4-16
1100 Soft1/8 x 1592$48.50
Quantity
AN426A-4-20
1100 Soft1/8 x 1-1/4467$43.50
Quantity
AN426A-5-4
1100 Soft5/32 x 1/41440$40.75
Quantity
AN426A-5-5
1100 Soft5/32 x 5/161226$28.50
Quantity
AN426A-5-6
1100 Soft5/32 x 3/81079$34.50
Quantity
AN426A-5-7
1100 Soft5/32 x 7/16946$29.90
Quantity
AN426A-5-8
1100 Soft5/32 x 1/2849$31.50
Quantity
AN426A-5-9
1100 Soft5/32 x 9/16770$35.50
Quantity
AN426A-5-10
1100 Soft5/32 x 5/8649$28.50
Quantity
AN426A-5-12
1100 Soft5/32 x 3/4494$42.50
Quantity
AN426A-5-14
1100 Soft5/32 x 7/8--$28.50
Quantity
AN426A-5-16
1100 Soft5/32 x 1450$36.60
Quantity
AN426A-5-22
1100 Soft5/32 x 1-3/8368$68.75
Quantity
AN426A6-4
1100 Soft3/16 x 1/4--$43.50
Quantity
AN426A-6-5
1100 Soft3/16 x 5/16846$32.50
Quantity
AN426A-6-7
1100 Soft3/16 x 7/16728$28.50
Quantity
AN426A-6-9
1100 Soft3/16 x 9/16550$33.85
Quantity
AN426A-6-10
1100 Soft3/16 x 5/8451$28.50
Quantity
AN426A-6-14
1100 Soft3/16 x 7/8390$42.50
Quantity
Subtotal $0.00
Add to Wishlist

Overview

Note: quantities must be entered in decimal format. (i.e. 0.25 for 1/4, 0.50 for 1/2, etc). Minimum Purchase 1/8 lb. (qty .13).

"A" rivets are "soft". They are fabricated from 1100-grade aluminum and have a tensile strength of 16,000 PSI. "AD" rivets are fabricated from 2117 aluminum and heat treated to the T4 condition. They have a shear strength of 26,000 PSI and a tensile strength of 38,000 PSI. Prices below are for 1lb. quantities. All rivets can be purchased in 1/4 lb. (use qty .25) and 1/8 lb. (use qty .13) packages. AN470 (MS20470) AN426 (MS20426).

AN426 are 100 rivets.

10% Discount for 5 lbs of rivets or more (per PN).

In The Box

  • Price per Lb.
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

im using T rivets for a custom peterbilt rebuild. the counter sink tool and squeezer invaluble for my project. on issue, no one in sales had a clue how to order correctly the dies, being, the squeezer has a adjustable anvil. no instruction how to adjust it,the sales rep didnt know either.. overall glad i came here the catalog had me reading for over a hour to search out other needs to following issue..

Mike S Verified Purchase

SOLID ALUM RIVET AN426A-6-10

July 25, 2022

It’s a rivet, just be careful countersinking not to blow past it depth. Once set up correctly Easy squeeze

Nick A Verified Purchase

SOLID ALUM RIVET MS20426AD-3-4

July 5, 2022

Great product

John L Verified Purchase

SOLID ALUM RIVET AN426A-6-14

June 2, 2022

David M Verified Purchase

ALUM RIVET MS20426A-5-5

May 17, 2022

David M Verified Purchase

ALUM RIVET AN426A-5-6

May 17, 2022

George E Verified Purchase

SOLID ALUM RIVET MS20426AD-3-4

April 22, 2022

Yohei N Verified Purchase

AN426AD3-9 HARD SOLID RIVET

April 13, 2022

Just what I needed.

Shaun P Verified Purchase

ALUMINUM RIVET MS20426AD-4-6

March 28, 2022

Perfect. Couldnt do it without A.S.

Chautbreland Z Verified Purchase

MS20426AD4-5 ALUMINUM RIVET

March 17, 2022

Um it’s a rivet

Zachary L Verified Purchase

SOLID ALUM RIVET MS20426AD-3-4

March 11, 2022

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the countersunk degree of the head of part number AN426AD-4-8 and please confirm that this is alloy 2117-T4?

Per the tech data sheet, the rivets have 100* countersink, and the hard "AD" rivets are made from 2117-T4 aluminum.

Q: About how many solid AN426AD-3-2 Rivets are in a 1/4 pound?

Approx 1200.

Q: Which tool would I use to install these rivets?

Several tools would be needed. A rivet gun with a flush rivet set, an air compressor, and a bucking bar to start. There are also rivet squeezers, and benchtop rivet fixtures. There are several tools and accessories to choose from.

Q: On AN426AD what does the AD stand for?

AD rivets are fabricated from 2117 aluminum and heat treated to the T4 condition. They have a shear strength of 26,000 PSI and a tensile strength of 38,000 PSI.

Q: What is the length tolerance for AN426AD-4-3 ?

This is +/- .010.

Q: Hello, can you please tell me the head diameter of Rivet AN426AD-5-5 ??? And are they plain-faced? I would prefer rivets without trade marks stamped on their heads.

|The diameter is .275" and there are no markings on the head.

Q: I will be calling in an order for AN426AD-5-5 flush-head rivets. I will be needing about three hundred rivets.. How many in a 1/4-pound bag, approximately?? Any idea?

Approx 306 rivets per 1/4 lb of AN426AD-5-5.

Q: What is the smallest amount of rivets that you allow to be purchased by weight?

0.13 LBS.

Q: What is the countersunk head angle of the product ALUMINUM RIVET MS20426A-4-4?

These have a 100 degree countersink.
