ALL-METAL FLOATING ANCHOR NUTS

From $0.73 to $3.35
Thread Part No.
One Lug
Buy
One Lug
Part No.
Two Lug
Buy
Two Lug
4-40MS21061L04$3.35
Quantity
--------
6-32MS21061L06$1.81
Quantity
MS21059L06$0.87
Quantity
8-32MS21061L08$1.19
Quantity
MS21059L08$1.07
Quantity
10-32MS21061L3$1.13
Quantity
MS21059L3$0.73
Quantity
1/4-28MS21061L4$2.45
Quantity
MS21059L4
$1.47
Quantity
Subtotal $0.00
Add to Wishlist

Overview

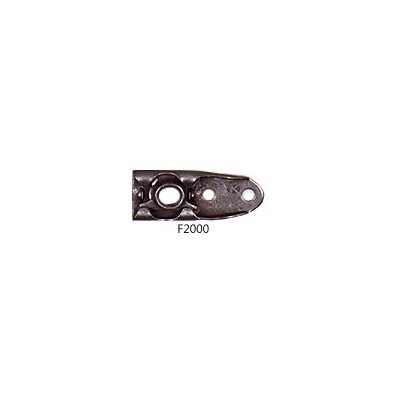

All metal floating anchor nuts. MS21059 ( F5000 ) and MS21061 ( F2000 ).

Anchor nuts are designed for blind mounted applications where it is impractical to use hex nuts or where it is desirable to have an attached nut for ease of maintenance.
  • Customers Also Viewed
  • Frequently Purchased With

Reviews

Need for lower cowling. I had to give it a good cleaning which I used StrutWipe, also sold by AS.

Mark G Verified Purchase

NUT,FLOATING ANCHOR MS21059L08

July 9, 2021

Very fast service and accurate shipping.

Carlos C
March 10, 2021

Excellent, work like they should not like the 80 of #8 I received the last time

Henri M
February 25, 2021

I ordered these with two other parts which were out of stock. I was OK with that but needed the anchor nuts sooner. They came the next day! And of course they are very good quality. Thank you ACS!

John B
August 4, 2020

Perfect for providing an attached nut that moves just enough to insure alignment.

Donald S
February 28, 2020

These were for the rear seat rear legs in a cessna 172L. The originals had gotten stripped out over time, and werent the floating type. These floating anchors allowed more wiggle room in getting everything to go together. I was a little disappointed with the shipping time. Ordered them around 430 pm est on a monday with priority mail shipping, and they arrived Thursday afternoon about 3 PM. I thought they would arrive a day sooner.

Edward V
January 19, 2020

A little confusing to find the standard two lug floating nut plate as they are listed in the right hand column and the picture is the second picture which must be selected. But these are the nut plates which are the same size as the standard non-floating and work well.

Melinda
September 4, 2017

The picture shows a single lug and is a little confusing regarding the number for a two lug floating nut plate

Louie L
March 26, 2017

Itps C Verified Purchase

NUT,FLOATING ANCHOR MS21059L08

June 14, 2021

The part pictured in the listing does not match the part that was sent.

Bob
September 13, 2019

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the bolt hole size for the MS21059L4 anchor nut?

This is for a 1/4-28 threaded fastener, so the hole would have to be at least 1/4" for the fastener to engage the threads of the anchor nut.

Q: What is the rivet size used to attatch the anchor nut? Thanks

The F5000 anchor nuts we offer require 3/32" diameter rivets for installation.

Q: What is the center to center distance of the two mounting holes for the various sizes of 2-lug nut plates?

The rivet hole spacing is .688" for anchor nuts up to 10-32 threads, and 1" spacing for 1/4-28 to 3/8-24 threaded units.

Q: What is the bolt hole size for the MS21059l8 anchor nut?

The bolt hole accepts a 8-32 threaded bolt. The rivet holes accept a 3/32" diameter rivet.

Q: What are the dimensions for the MS21061L08?

1.051 inches long, 0.250 inches height, between 0.290 inches and 0.422 inches wide.
