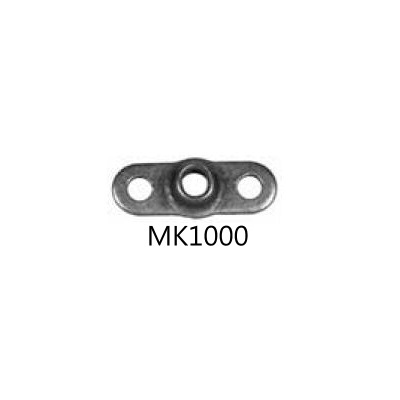

Anchor nuts are designed for blind mounted applications where it is impractical to use hex nuts or where it is desirable to have an attached nut for ease of maintenance.
MS21069L4 ANCHOR NUT
Great material. Unbeatable price.
NUT,TWO LUG ANCHOR MS21069L06
Everything arrived on time as ordered
Great for where you need a smaller nut plate.
Available in a minature and full size rivet spacing. Both are equally tough.
Excellent nut plate for limited space applications and maximum structural strength is not required.
High quality item, but it is very fragile looking. Definitely, not for heavy duty use. For my purposes, I ended up ordering Part #AN366F-1032A MS21078-3, which served my purposes much better.
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Yes, these all metal anchor nuts are self locking. You can use MK1000-08 for your application.
Yes, the MK1000-04 has 4-40 threads.
The thickness for the nut plate where the rivet passes through would be .047". As for what the grip length for the rivets that you need would depend on your application of which you are trying to rivet these to.
The mounting holes are .098". 3/32" rivets are used to attach them.
