Mitchell Gauges

From $89.95 to $208.95
Description Part Number Price Buy
MITCHELL FUEL PRESSURE 15 PSI
10-10150
$208.95
Quantity
MITCHELL FUEL PRESSURE 30 PSI
10-10152
$207.95
Quantity
MITCHELL FUEL PRESSURE 80 PSI
10-03621
$208.95
Quantity
MITCHELL OIL TEMP 100F-250F
10-02279
$199.75
Quantity
MITCHELL OIL TEMP 120F-300F
10-10154
$199.75
Quantity
MITCHELL OIL TEMP 40C-120C
10-10155
$199.75
Quantity
MITCHELL LIQUID TEMP 100F-250F
10-10156
$199.75
Quantity
MITCHELL RIGHT FUEL 10-180 OMH
10-10158
$199.75
Quantity
MITCHELL LEFT FUEL 10-180 OHM
10-10160
$199.75
Quantity
MITCHELL FUEL GAUGE 10-180 OHM
10-10162
$199.75
Quantity
MITCHELL VOLTMETER 8-16 VOLTS
10-10164
$180.75
Quantity
MITCHELL VOLTMETER 12-31 VOLTS
10-10165
$159.75
Quantity
MITCHELL OIL PRESSURE 100 PSI
10-10166
$199.75
Quantity
MITCHELL 0 - 9 BAR OIL GAUGE
10-10168
$199.75
Quantity
MITCHELL CHT GAUGE 100F-600F
10-10170
$207.95
Quantity
MITCHELL AMMETER 45-0-45 AMP
10-10174
$178.75
Quantity
MITCHELL AMMETER 75-0-75 AMP
10-10176
$202.95
Quantity
MITCHELL 45 AMP SHUNT
10-10184
$89.95
Quantity
MITCHELL 75 AMP SHUNT
10-10185
$100.75
Quantity
Subtotal $0.00
Add to Wishlist

Overview

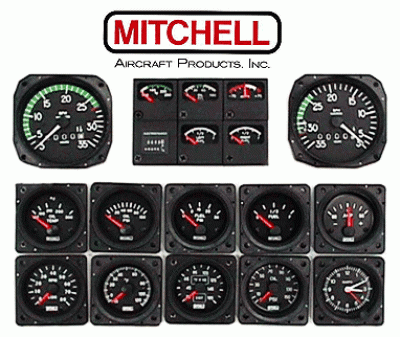

This line of miniature engine gauges from Mitchell is ideal for a wide variety of general aviation applications. They measure nearly 1-1/2 inches square and are stackable. The modular design allows them to be plugged from the front of the panel. The units are internally lighted. Complete standard panels are also available.

*FAA Approved. If individual gauges are ordered, appropriate backplate with pigtail must be ordered to mount and connect the gauge. If more than one gauge ordered to be mounted together, a special order cluster can be configured that requires custom backplates.

Note: All modular gauges after April 03, 2017 feature a new connector configuration. New style gauges will fit into existing frames but require changing the mating connector plate. Previous style connectors are now obsolete and no longer available

  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Much cleaner look and functionality than my factory gauges. Caution if you are buying this as a replacement gauge, the new style plug on the gauge will not fit the old style frame.

Ronnie M Verified Purchase

MITCHELL FUEL PRESSURE 15 PSI

December 20, 2023

Oil Pressure: Absolutely perfect for my RV9. Purchased with 2x3 gauge frame. Installation was a snap.

Mike
March 23, 2019

75 Amp Ammeter: Absolutely perfect for my RV9. Purchased with 2x3 gauge frame. Installation is a snap. Caution: Check with Mitchell before ordering to determine which back plate connector you need. the connectors for the 45 amp is different from 75 amp ammeter.

Mike
March 23, 2019

Absolutely perfect for my RV9. Purchased with 2x3 gauge frame. Installation is a snap.

Mike
March 23, 2019

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: I am trying to find the sender units that go with the following Mitchell CHT gauge, Mitchell oil temp gauge

Please review the accessories tab under this instrument for the appropriate senders.

Q: Hi are the Mitchell gauges approved for replacement in a C206 with a continental engine 1976 model?

Yes, Mitchell gauges are FAA PMA'd.

Q: Are the Mitchell engine instruments FAA Approved for installation in certificated aircraft?

Yes, these Mitchell gauges are FAA PMA'd.

Q: I am interested in the Mitchell Fuel Pressure 80 PSI gauge, part number 10-03621. Is this a cluster gauge? Does FAA approve this gauge as a primary replacement gauge?

Part number 10-03621 is a modular (cluster) gauge that is not FAA TSO'd as a primary replacement.

Q: Are the Mitchell gauges FAA approved as primary engine instruments gauges? Can I get rid of my original cluster gauge if I replace each function (oil press., oil temp., etc.) with a Mitchell gauge?

Yes, these Mitchell gauges are FAA PMA approved for use in certified aircraft.

Q: Are the Fuel pressure gauges (10-152) electrical? What sender fits it?

Yes, these gauges are electric. 0-15psi gauge: p/n 10-25058 | 0-30psi gauge: p/n 10-25060 |s ender: p/n 10-25065
