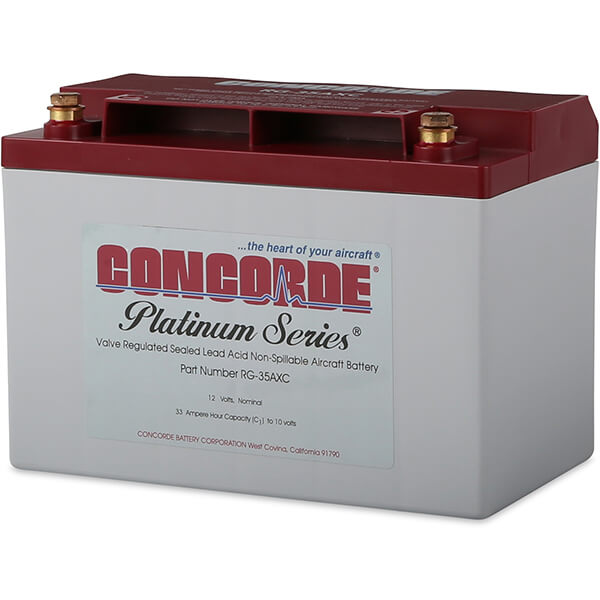

CONCORDE RG-35AXC PLATINUM SERIES SEALED LEAD ACID AIRCRAFT BATTERY

$518.00/Each
Quantity
Add to Wishlist
Part# 11-03882
MFR Model# RG-35AXC

Overview

RG-35AXC has the highest cranking power and capacity in the 35 Group.

Recombinant Gas - The RG® Series are low resistance, valve regulated lead acid (VRLA) batteries.

  • Superior starting power
  • Reliable essential power in the event of a generator failure
  • Low impedance design
  • Maintenance free
  • Constructed with non removable vent valves - no addition of electrolyte or water required
  • Aerobatic: Non spillable at any altitude or attitude
  • Factory tested to assure airworthiness
  • Shipped fully charged and ready to install
  • Manufactured with absorbed glass mat separators (AGM)
  • RG® Series batteries ship Hazmat Exempt

NOTE: This aircraft battery is not designed or intended for turbine aircraft engine starting applications. Warranty coverage applies to reciprocating aircraft engine starting, and standby / essential power installations.

*NOTE* - The STC for some aircraft is available at an additional cost please call 877-4-SPRUCE (777823) if applicable to your aircraft.

Battery Type
Voltage
Ampere Hours
Max. Weight
Our P/N
Battery Diagram PDF
RG-35AXC
Sealed,
Extra Cranking
12
33
32 lbs.
11-03882
  • Customers Also Viewed
  • Frequently Purchased With

Reviews

Shipped very quickly from Aircraft Spruce. After installation, airplane started like never before in our experience ...very quickly.

Colin B
March 2, 2021

Great battery.

Dave C
February 19, 2021

Concorde RG-35AXC is a great battery. The last one we purchased was in installed in our Cherokee 180 that flies 500 - 700 hours a year in a flying club. We installed that battery in October of 2015 and replaced it in January of 2021, so we got more than 5 years of service out of it. We replaced the battery in the Cherokee not because it failed, but because it seemed to be getting weaker on cold mornings (at, or slightly above, freezing in Dallas), and we were tired of club members reporting that they werent able to start the cold-soaked engine. In the last 20 plus years, weve probably purchased 6 of these batteries for multiple aircraft and have never gotten less than 4 - 5 years of service out of one of these batteries.

John B
February 11, 2021

The first start after install was almost instantaneous. The prop didnt make even make a full rotation before it started. I highly recommend.

Dale
February 1, 2021

Excellent product and exceptional customer service.

Mike
January 27, 2021

Love these batteries! They are by far the longest lasting and most powerful of the various batteries I have tried in my Lycoming O-540 powered Cherokee!

Robert H
January 21, 2021

Last one lasted 7 years.

Thomas K
January 11, 2021

As expected, same one I used last time

Bill S
January 4, 2021

Good start. Maintenance free

Rafael P
December 25, 2020

Replaced a Gill that only lasted just under 3 years in my M20J and am very happy. With the first start attempt on the Gill, the prop would only turn about 1 revolution and stop, then had to try a second start that would turn more revolutions. The Concorde spun the prop normally on the first start attempt - couldnt be happier.

Jeff W
December 25, 2020

Q&A

Q: Is this battery a drop-in replacement for my current Gill battery in my 182? Or will I be required to: 1) purchase a volt meter to determine if it is charged. 2) get a torque wrench that measures inch pounds to ensure the terminals are not over torqued. 3) have an a&p ia do the paperwork to approve the install 4) modify the battery box lid so it closes properly 5) get a special trickle charger that works specifically for this battery. As an owner, I just want to replace the battery and go fly. Regards, Greg

Yes, this is a drop in replacement for this aircraft. 1) We maintain the charge in the batteries while they are in stock. A volt meter is a good way to determine present state of charge. 2) Please do pay special attention to avoid over-torquing. Torque information comes with the battery. 3) You need to contact the local FSDO for this question. per the manufacturer, we have an STC and PMA. The STC is available at no charge. Per Concorde, they just need the information sheet completed and they can can email for free. 4) Some installations do require modification of the battery box cover. This is covered in the STC. 5) We only recommend the BatteryMINDers listed under the "Accessories" tab of this web page

Q: Will it hurt this battery to trickle charge it? RG-35AXC

No, trickle charging this battery should cause any harm to the battery.

Q: I just purchased a Concorde RG-35 AXC battery. In the Q&A section, it says an STC is available at no charge. How do I go about obtaining the STC?

There is a form that is available in the "Documents" tab. It is the first one listed. Please download it, fill it out, and send it to Concorde and they will send the STC at no charge.

Q: What is the CCA rating of this RG-35AXC battery?

The cold crank amps rating is 440.0.

Q: I've had the RG-35AXC for about2 1/2 years now and haven't been flying to much lately, plane has been sitting for almost a year.. I try to go out and start and run the engine once a week or so. The temps here in Miami and rather high, I mean HOT. anyway the battery appears to be really low and won't turn over the engine. What is the best way to charge it back up...right now I'm using a slow 2amp charge or should I boost that up higher???

Concorde recommends the battery minder part number 11-07739 for charging, this is an 8 amp charger.

Q: Are the Concorde RG-35A and the RG-35AXC batteries the same physical size?

Yes, they are the same size.

Q: Is the RG-35AXC a drop-in replacement for the Concord RG-35?

Yes, the application is the same for both RG-35A and the RG-35AXC. The XC model is extra cranking and provides the highest cranking power and capacity in the 35 line. It is commonly used in cold weather applications.

Q: What are the dimensions of this RG-35AXC battery? I want to make sure it fits in my battery box.

Please see the link for the "Download RG-35AXC Diagram" in the 'Overview' tab of the web page. The dimensional drawing is included in the PDF.

Q: What is the CCa of the RG-35axc?

The cold crank amps rating is 440.0.

Q: Will the RG-35AXC fit my PA-28-180?

Yes, per the application chart, the RG-35AXC should be the correct battery for your aircraft.
