Overview

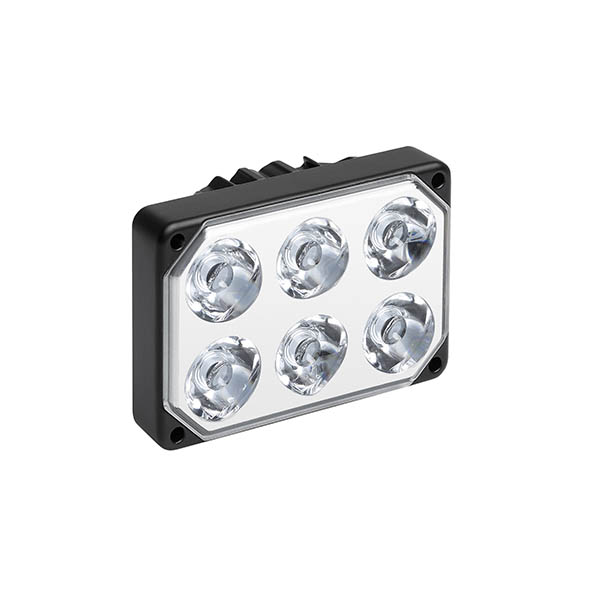

The SunBeam EQUINOX is the latest advancement in the SunBeam series, offering dual-functionality for both landing and taxi operations in a single, high-performance unit. Engineered for superior illumination and FAA-PMA/STC-certified for Part 23 aircraft, the EQUINOX is a upgrade for pilots seeking enhanced visibility, efficiency, and reliability. Enhanced Versatility & Performance Landing Mode: Delivers a powerful, focused white beam for high-speed takeoffs and landings, maximizing visibility both on the ground and in the air. Taxi Mode: Provides a wide beam spread, ensuring optimal illumination of taxiways while minimizing glare for other pilots. Built-in Pulse Mode: AeroLEDs’ signature wig-wag feature enhances daytime and nighttime recognition, reducing the risk of midair collisions and bird strikes.

Features

• Dual-Functionality: Seamlessly switch between landing and taxi modes for a tailored lighting experience.
• High-Performance Illumination: 65% more light output than competing products.
• Efficient Power Consumption: Draws only 38 watts max, using half the power of traditional systems.

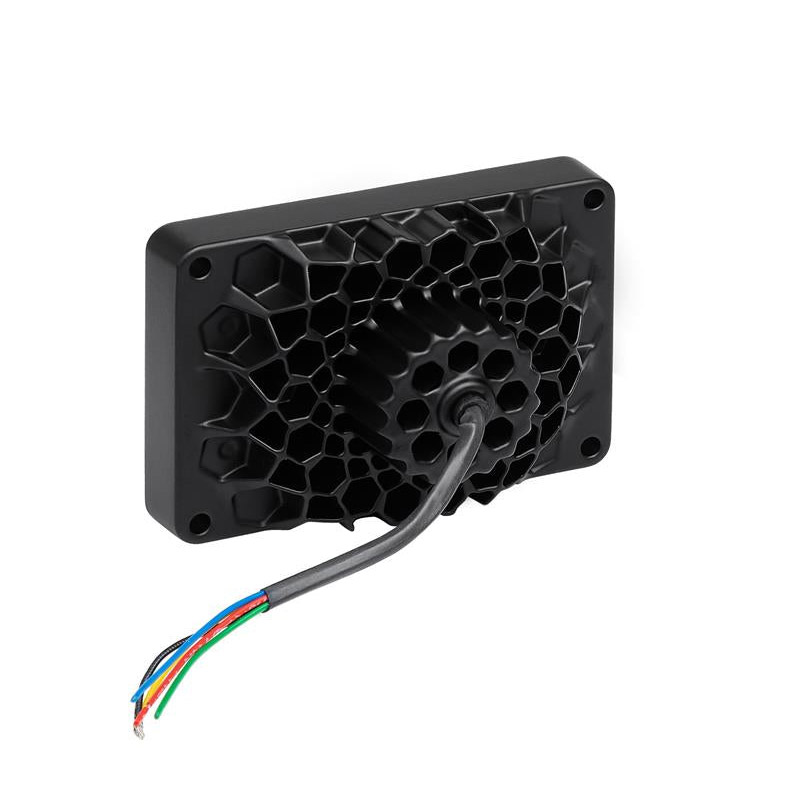

• Long-Lasting Durability: 30,000-hour lifespan with thermal protection, aluminum heat sink, and UV-hardcoated polycarbonate lens for ultimate resilience.

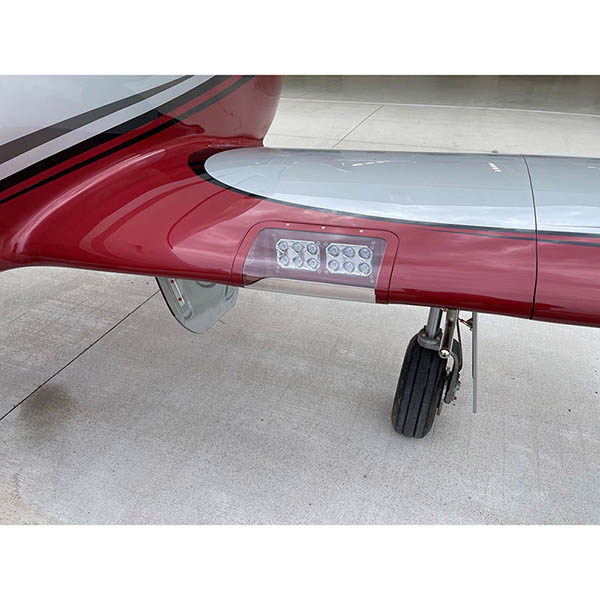

• Easy Installation: Drop-in replacement for standard rectangular landing lights.
• FAA-PMA/STC Certified: Approved for Part 23 aircraft, making it ideal for both certified and experimental aircraft.

Specifications

• Max Current 14VDC: Landing
• 3.3A Taxi
• 3.6A
• Max Current 28VDC: Landing
• 1.8A Taxi
• 1.9A
• Weight: 0.5 lbs.
• Length: 4" Width: 2.8" Depth: 2"
• WIG WAG

Documents

• Installation Manual
