|ER14-50||ER14-50 HARTZELL PLANE POWER ALTERNATOR|
|SAL12-70C||SAL12-70C HARTZELL GENERATOR CONVERSION KIT|
|SAL12-70||SAL12-70 HARTZELL GENERATOR CONVERSION KIT|
|TAL12-70||TAL12-70 HARTZELL PLANE POWER GENERATOR CONV KIT|
|TAL24-70C||TAL24-70C TWIN HARTZELL PLANE POWER GENERATOR CONV|
|TAL 24-70||TAL24-70 HARTZELL PLANE POWER GENERATOR CONV KIT|
All new design is engineered specifically for aviation offers:
(Twin-engine kits include two of each)
12/14 volt, 50 amp, replaces Generators on Small Block Continental Equipped Aircraft (view our Model Eligibility for fit information) Installation Instruction

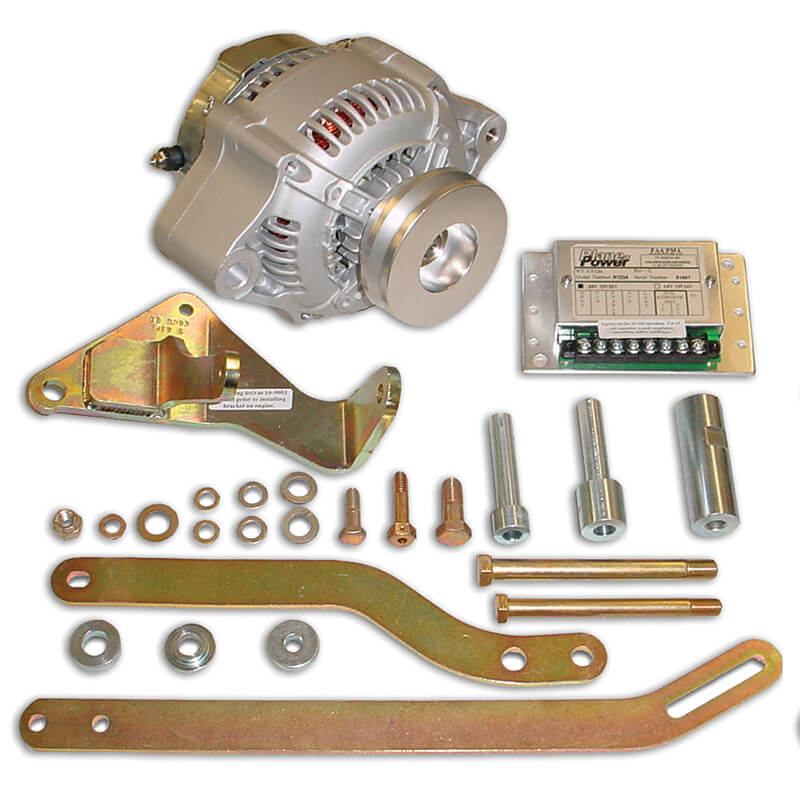

Generator Conversion kit for single-engine 12/14 volt belt driven Continental Engines. (view our Model Eligibility for fit information) Installation Instruction
Generator Conversion kit for single-engine 12/14 volt belt driven Lycoming Engines. (view our Model Eligibility for fit information) Installation Instruction
Generator Conversion kit for twin-engine 12/14 volt belt driven Lycoming Engines. (view our Model Eligibility for fit information) Installation Instruction
Generator Conversion kit for twin-engine 24/28 volt belt driven Continental Engines. (view our Model Eligibility for fit information) Installation Instruction
|TAL 24-70 |
Generator Conversion kit for twin-engine 24/28 volt belt driven Lycoming Engines. (view our Model Eligibility for fit information) Installation Instruction
Any unit being returned for core or warranty core credit shall be, as removed from the engine, complete and not disassembled. No core or warranty core credit will be allowed for automotive units. Units that are rusty or cannot be overhauled for any reason will be classified as scrap, having no value. Units which have been weld repaired, as well as units which have been disassembled and then reassembled with old parts, will also be classified as scrap, having no value. A percentage of the core value will be charged for all missing or damaged parts. At no time will the damaged or missing parts charge on any unit exceed the core value of that unit.
1. Core will only be accepted for credit 12 months from date of invoice.
2. Cores returned in excess of cores invoiced will not be accepted.
3. Cores must be of like purchase, a directly superseded unit or replaced unit when installing an STC'd product.
4. Competitive product cores are acceptable returns.
5. Cores must have a legible data tag for part and serial number verification.
Note: Customer will need to provide core for overhaul in the event our supplier does not have cores available to overhaul.
Great product. Lacking or erroneous instructions. Says you can use original light if equipped. Also had to call tech support because unit was overcharging and popping output breaker. They said a direct wire from alternator output to sense on regulator is needed instead of the the jumper from the field terminal it comes with. Other than that, the alternator and regulator are quality items.
ER14-50 HARTZELL PLANE POWER ALTERNATOR
Hsppy. With unit.
ER14-50 HARTZELL PLANE POWER ALTERNATOR
quality product and fast delivery
Better then I expected.
Great product easy installation
Installed this in a 1957 172 with O300 that had a generator. I like to fly at night and taxiing with all the lights and strobes running, near idle, will drain your battery in a blink of an eye. Bought this kit for around $800 when my antique $400 regulator died. It was either spend $400 to get back to square 1, or spend $800 and get brand new technology. A&P and I installed together. Installation was pretty easy. Access was easier than any car alternator Ive done. Hardest part was knocking a stubborn, but required bushing off the generator shaft, that was needed for the alt shaft. Plenty of instructions and diagrams, made wiring easy. Included regulator is light-years ahead of what it replaced. Did need to buy a few separate parts for this. I forget what, but its listed in the online install instructions. Youll need wire and circuit breakers, too. Spruce had everything in stock. Alternator comes alive around 600-700 rpm, much better than the gen at well over 1000 rpm. Voltage is rock solid in flight or on the ground, with literally everything running. Voltage adjustment is super easy. Weight savings was over 6 lbs. I did put an alternator noise filter on it, thinking it would reduce some static I hear at idle. I think it ended up being in the intercom, though.
Best conversion for my N35 bonanza with IO 470. Removed the old conversion that continued to show me signes older technologys proove why we need innovations in Gereral aviation. Install took 2 hours, due to, I change all the wiring. (Would have been less than 1 hour). 1 issue was the center thru bolt clearance on the engine bracket. Had to grind 0.080 slot adjacent to bolt head to allow bolt rotation for tightening this bolt. (Very minor blending though) . Alternator performance is excellent. Voltage regulator is simple and had spot on voltage, extremely stable. I should of installed this conversion a long time ago.
The kit is as advertised. All you need. The pulley is narrower than stock and the belt rides high with a stock 31.19 Continental belt. This is my only concern.
Despite calling Hartzell engine tech. And ordering the suggested kit it was missing parts, and doesnt fit the product disription
SAL12-70C HARTZELL GENERATOR CONVERSION KIT
Ordered kit to replace generator system with alternator system in a PA 30 B. Kit showed up without alternator brackets. After install system didnt work and discovered new version of instructions changed and not accurate wrt wiring. Also instructions so generic they were basically useless. Took scores of shop hours to rectify. Then we discovered the props had to be dropped to replace belts that were shorter for new alternators. Absolutely no mention of this in the instructions.. extremely disappointed and costly mistake buying this kit. And of course no offer of help from plane power.
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Per the supplier, the existing belt can be used.
Per the supplier, customer will use their current belt.
Yes, the STC paperwork is included in the box.
Yes, we offer it as part number 07-17758 ( HARTZELL PLANE POWER ALTERNATOR ONLY 10-1050C ).
Per supplier: If original output circuit breaker is rated at less than 70-amps and you wish to be able to utilize the increased capacity of the alternator, remove the breaker and replace with suitable breaker up to 70amp maximum size. Ensure wire size from alternator output terminal to output circuit breaker and from output circuit breaker to bus is rated for more than the size of breaker installed per AC43.13-1B.
Note: If aircraft has been equipped with an Amp Meter, ensure that it is of adequate size to handle the increased output capability before increasing the output wire and breaker
We do not supply circuit breakers in the kits.
If he has a lower amp rated breaker currently installed, he can continue to use it but alternator output will be limited to the amp rating of that breaker.
No, the SAL12-70 kit would replace the InterAv kit including the brackets and hardware. Be just like starting over and assuming the generator was still installed.
Yes it is included as well as it is available on the manufactures website.
Hartzell will accept that as a core as long as the data plate can be read.
