Plane Power Powerflex Voltage Regulator - R1224

Select Voltage:
14V28V
Quantity
Add to Wishlist

Overview

14V / 28V, replaces Ford, Electrodelta, Prestolite, Interav, Wico, FVR, and more voltage regulators. (Refer to Model Eligibility for your more information and additional models)

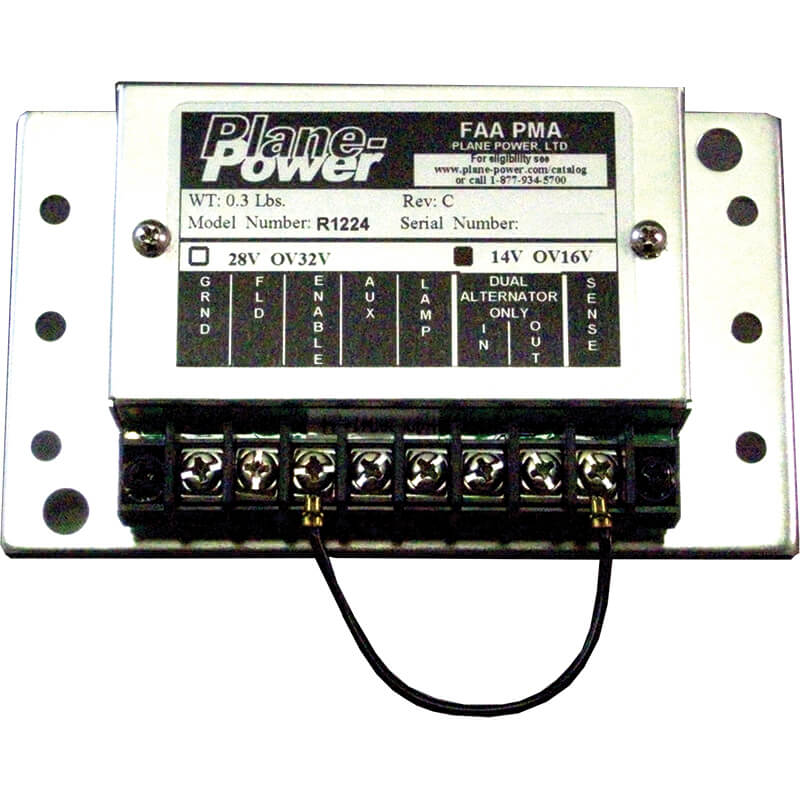

The Plane Power R1224 Voltage Regulator is a solid-state voltage regulator with over-voltage protection, field short (over current) protection, and reverse battery protection. The Plane Power R1224 Voltage Regulator also supports precision load sharing for twin applications, and an alternator inoperative lamp.

NOTE: The R1224 voltage regulator is designed to be setup in the field for 14 or 28 volt operation by configuring the two jumpers within the voltage regulator.

Attention:
Some applications require accessory part number 07-03532. See Application Guide for requirements.
  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Required one small adjustment

Ray L Verified Purchase

R1224S-14 HARTZELL PLANE-POWER VOLTAGE REGULATOR

August 29, 2023

So far it is working well. Mechanic installed just yesterday and I flew it back from Dallas to Houston. I should have made this change when I had the planepower alternator installed. Both work great together.

Thomas F Verified Purchase

R1224S-14 HARTZELL PLANE-POWER VOLTAGE REGULATOR

August 2, 2023

Does the job.

Eric T Verified Purchase

R1224S-14 HARTZELL PLANE-POWER VOLTAGE REGULATOR

May 1, 2023

Dave H Verified Purchase

R1224S-14 HARTZELL PLANE-POWER VOLTAGE REGULATOR

April 12, 2023

Very fast delivery, in stock.

Weston P Verified Purchase

R1224S-14 HARTZELL PLANE-POWER VOLTAGE REGULATOR

February 25, 2023

worked as needed bolt holes did not align but that was to be maybe expected

John M Verified Purchase

R1224S-14 HARTZELL PLANE-POWER VOLTAGE REGULATOR

January 13, 2023

When my OEM Lamar voltage regulator failed I contacted Lamar Customer Service and was told they didnt have a replacement available for my OEM regulator. This Plane-Power regulator was offered as a possibility by Spruce Customer Service and it works perfectly replaced both the OEM regulator and the OEM over voltage relay, and is much more stable than the OEM Lamar regulator ever was since I have owned the airplane.

Craig N Verified Purchase

R1224S-28 28V HARTZELL PLANE-POWER VOLTAGE REGULATOR

October 10, 2022

Only way to go on most all Aircraft .

Delta A Verified Purchase

R1224S-14 HARTZELL PLANE-POWER VOLTAGE REGULATOR

August 25, 2022

Janis F Verified Purchase

R1224S-14 HARTZELL PLANE-POWER VOLTAGE REGULATOR

August 3, 2022

Gregory H Verified Purchase

R1224S-14 HARTZELL PLANE-POWER VOLTAGE REGULATOR

June 24, 2022

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Do the Plane Power Powerflex Voltage Regulators listed on this page provide noise reduction as well?

Per the supplier: No, these units are not equipped with noise reduction.

Q: Does this Plane Power Powerflex voltage regulator replace InterAv P/N 625-61623? 14 volt Neg ground?

Yes, per the Fit Guide PDF in the "Application Guide" tab of the web page, part number R1224 (our part number 07-01305) will replace InterAv 625-61623. However, we recommend that you verify your aircraft application using the fit guide to confirm it is the correct replacement.

Q: Is the 12-1021 adapter plate included?

No, the 12-1021 adapter plate is not included but can be purchased separately.

Q: What's the difference between the R1224 and R1224B products? Which one is appropriate for E-AB aircraft? Which one is compatible with the Plane Power C14-100 alternator?

The only difference between the two products is the mounting base. Both would be appropriate for an E-AB aircraft along with the Plane Power C14-100 alternator.

Q: Does the unit come with wire connectors that fit the terminals on the regulator? Does not appear that the existing aircraft terminal ends will fit the regulator.

Yes, this will come with the connectors.

Q: What is the warranty period of the Plane Power R1224 voltage regulator?

All warranty issues / requests on this regulator must be handled direct with Plane Power:
New: 36mo/1000 operating hours whichever comes first
Overhauled: 6 months / 250 operating hours whichever comes first

Q: Does the unit come with connectors? there were none in my package

No, wire connectors are not included.

Q: What is the ring terminal size required for the terminals?

These use #8 terminals.

Q: Are these FAA/PMA?

Yes, these are FAA PMA approved.

Q: What are the General Dimensions of the Plane Power R1224 product?

Approx 3 by 5
