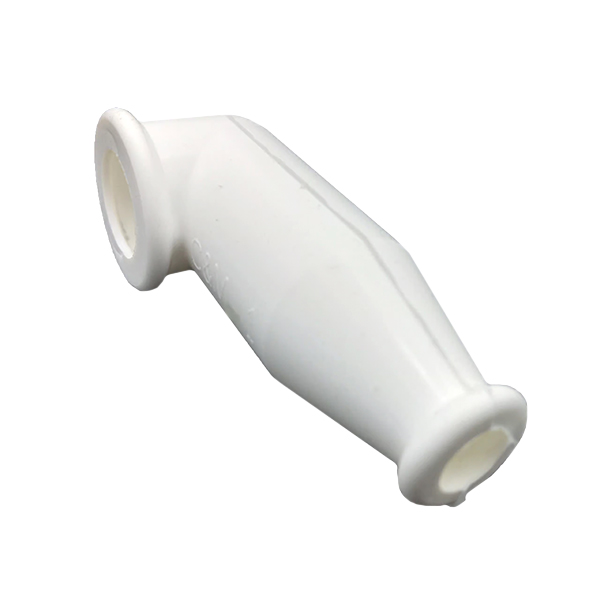

Right angle nipples made of silicone rubber MIL-R-5847, Class II, Grade 50. A-A-59178B |
A-A-59178B | A | B | C | D | E | F | G | H |
---|---|---|---|---|---|---|---|---|
Dash No. | Max. | ±.125 | ±.005 | Dia. | Dia. | Dia. | Dia. | Dia. |
-1 | 1.38" | 0.56" | 0.06" | 0.4" | 0.63" | 0.16" | 0.41" | 0.76" |
-2 | 2.5" | 1" | 0.06" | 0.56" | 0.82" | 0.31" | 0.56" | 0.95" |
-3 | 2.5" | 1" | 0.06" | 0.56" | 0.82" | 0.43" | 0.68" | 0.95" |
-4 | 2.5" | 1" | 0.06" | 0.56" | 0.82" | 0.56" | 0.82" | 0.95" |
Good quality product.
SILICON NIPPLE MS25171-2S WHT
Download A-A-59178B from everyspec for a better drawing.
perfect fast shipping
came just as expected!
Fits properly over terminal on Concord RG-35AXC battery and provides proper electrical separation.
I use them for the starter cable on Marine generators
Great product, good price
Needed these electric terminal nipples to replace the old ones on panel. Of high quality and perfect for the job.
Electric nipples of very good quality. Perfect for my project
Exactly what I needed on the Generator and battery.
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The dimensions listed are in inches.
The temp range is from -85 to 4010F, and these are commonly used on engine components.
