- Photo may represent series and not specific product
- SHARE

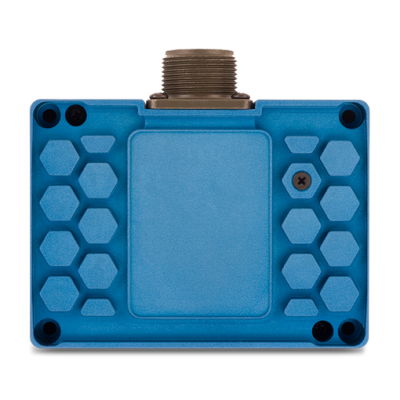

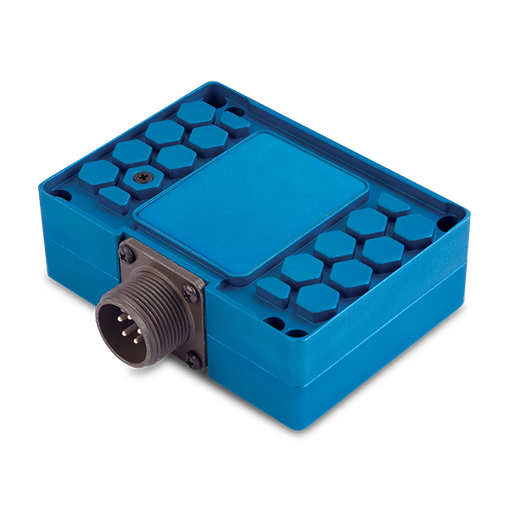

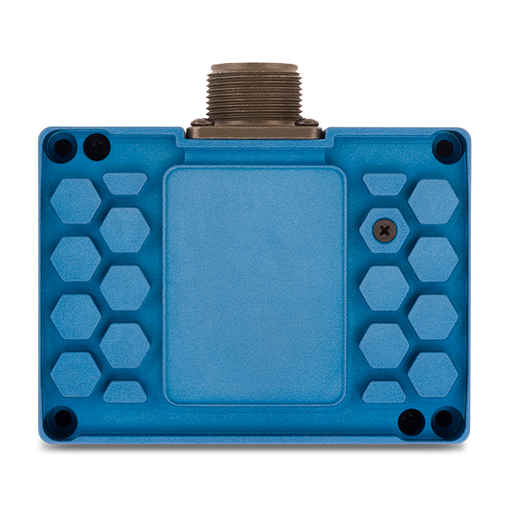

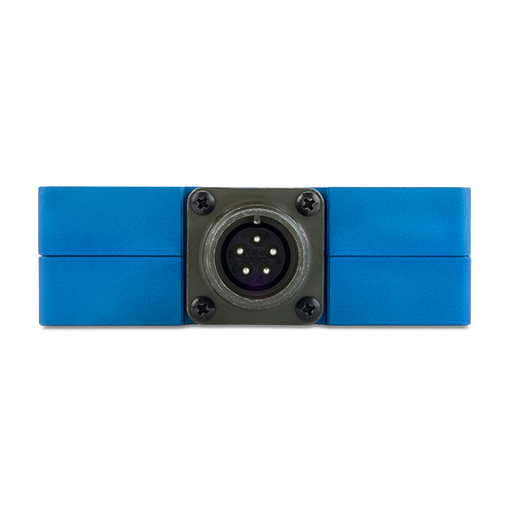

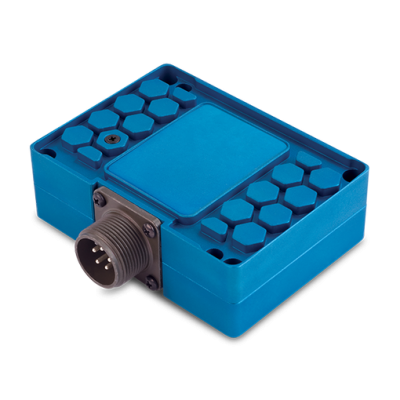

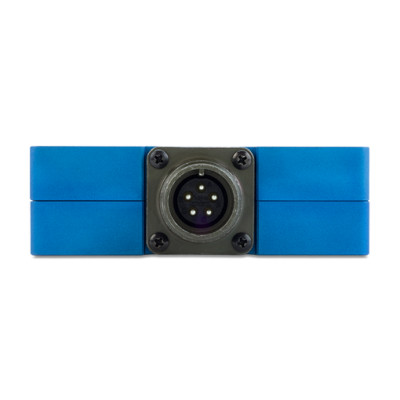

True Blue Power DC To DC Voltage Converter TC120
$1581.00/Each
Part# 11-19519
MFR Model# 6430120-3
MFR Model# 6430120-3
Overview
| The TC240 aircraft voltage converter supplies 240 watts of 5 – 18 volt power to electronic equipment, lighting and aircraft cabin accessories. Engineered with a fanless design, the TC240 converter is smaller and lighter than competing units. The 6430240-2 has a remote on/off feature, is FAA TSO certified, and is easy to install in your aircraft’s floor or cabin wall. |
Features
- Supplies 120 watts of 5 to 24-volt power to electronic equipment, including USB charging ports, lighting and cabin accessories
- Compact design — lighter and smaller than competing units
- Lightweight — 0.6 lbs
- 120 watts output power
- >90% efficiency
- Input Voltage: 24 – 32 VDC
- Input Current: 5.0 A Nominal
- Output Voltage: 5 – 24 VDC
- Input transient, overload, and short-circuit protection
- Rated from –65°F to +160°F (-55°C to +70°C)
- FAA TSO-C71 certified and RTCA DO-160G qualified
- Designed and built in Wichita, Kansas, USA
- Two-year limited warranty
Specifications
- Input Voltage: 24 – 32 VDC
- Input Current: 5.0 A Nominal
- Output Voltage: 5 – 24 VDC
- Output Power: 120 watts
- Efficiency: >90%
- Weight: 0.65 lbs (0.29 kg)
- Altitude: 55,000 ft
- Temperature: -65°F to +160°F (-55°C to +70°C)
- Protection: Input transient, overload, short-circuit protection
- Mating Connector: MS3106A-14S-5S
- Case: Anodized aluminum, blue
- Certification:
- FAA TSO-C71 certified
- RTCA DO-160G qualified
- MIL-STD-461F
- MIL-STD-704F
- MIL-STD-810F
