TYCO CIRCUIT BREAKER W23 SERIES

From $34.70 to $69.75
P & B Part No. AMP
Rating
Beech Cessna Piper Part No. Price Buy
W23X1A1G11--111-201-
105
11-03923
$52.75
Quantity
W23X1A1G22--111-202-
105
11-03926
$66.75
Quantity
W23X1A1G33--111-203-
105
11-03928
$61.90
Quantity
W23X1A1G44--111-204-
105
11-04267
$69.75
Quantity
W23X1A1G55CB-2305AS-1232-5454656
11-03929
$38.90
Quantity
W23X1A1G7.57-1/2CB-2307A--
11-04122
$37.65
Quantity
W23X1A1G1010CB-2310A-454657
11-03924
$34.70
Quantity
W23X1A1G1515CB-2315A-454658
11-03925
$34.70
Quantity
W23X1A1G2020CB-2320A-454659
11-03927
$34.70
Quantity
W23X1A1G2525CB-2325A-454660
11-04118
$34.70
Quantity
W23X1A1G3030CB-2330A-454661
11-04119
$42.85
Quantity
W23X1A1G3535CB-2335A-454663
11-04120
$34.70
Quantity
W23X1A1G4040CB-2340A-454665
11-04121
$41.90
Quantity
W23X1A1G5050CB-2350A-454662
11-03930
$37.65
Quantity
Subtotal $0.00
Add to Wishlist

Overview

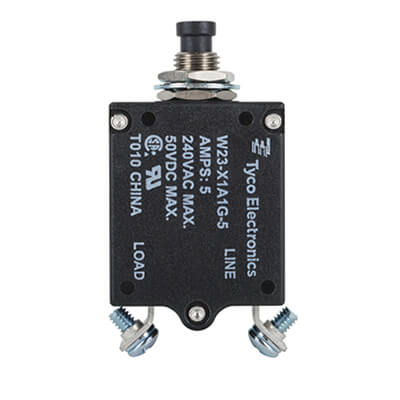

These bi-metallic single pole breakers weigh less than 2 oz. and are especially suitable for homebuilt aircraft. Used as original equipment in Beech, Cessna and Piper aircraft. Maximum operating voltages: 32 VDC and 250 VAC (to 400 Hz).

Push/Pull Actuator Thermal Circuit Breaker
    0.5 amp to 50 amp ratings may be used as on/off switch
    Cannot be reset against overload
    W23 has visible trip indicator
    Screw termination
    Trip-free operation

Documents

Reviews

ok

Brm A Verified Purchase

TE P&B CIRCUIT BREAKER W23-X1A1G-2

September 3, 2021

Great product. the order was processed quickly Thank you for the great service

Richard M Verified Purchase

TE P&B CIRCUIT BREAKER W23-X1A1G-50

July 13, 2021

it is a CB

Volar L Verified Purchase

TE P&B CIRCUIT BREAKER W23-X1A1G-40

June 22, 2021

Happy with unit.

Ricky L Verified Purchase

TE P&B CIRCUIT BREAKER W23-X1A1G-50

June 18, 2021

Chandonnet C Verified Purchase

TE P&B CIRCUIT BREAKER W23-X1A1G-30

June 9, 2021

These are excellent breakers and pricing is good here as well. I use quite a few of these for electric air conditioners (50A steady load) and they do the job well.

Plane C
April 27, 2021

This was a replacement for a defective breaker. Easy to connect and install. Works exactly as advertised. Now getting full voltage across both terminals - the reason for my voltage drop. Also arrived very promptly after order (within 3 days).

Geoff G
September 4, 2020

These breakers are exceptional, and received order quickly. I have gotten over 50 Breakers from Aircraft spruce and havent had any problems.

Tyler F
August 13, 2020

Best breakers in the market. Simple to use and pretty reasonable price

Marcos S
April 10, 2020

Timely delivery

Ken
March 7, 2020

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What size are the screws on the rear connectors of the Tyco circuit breakers W23?

W23 series circuit breakers have 8-32 threaded screws on the terminals.

Q: Are the Tyco WS23 circuit breakers FAA PMA?

These breakers do not have FAA PMA approval on their own. Many certified aircraft have these breakers as OEM and thus are approved under the airframe approval as replacement parts. Please discuss with your A&P to see if these can be installed legally in your aircraft.

Q: Is there a minimum distance between breakers for panel mounting?

Typically the distance on premade Busbars is the best to follow. You can view 11-04676 as an example.
