- Photo may represent series and not specific product
- SHARE
(Hover to zoom | Use mouse wheel for +/-)
| AN No. | MS No. | Mfgrs. PN | Contact | Toggle Circuit Code |
Price | Buy |
|---|---|---|---|---|---|---|
AN3021-1 | MS35058-21 | JBT - MS No. | SPDT | 1 | $46.50 | |
AN3021-2 | MS35058-22 | JBT - MS No. | SPST | 2 | $30.50 | |
AN3021-3 | MS35058-23 | JBT - MS No. | SPDT | 3 | $36.50 | |
AN3027-2 | MS35059-22 | JBT - MS No. | DPST | 2 | $42.50 | |
AN3027-3 | MS35059-23 | JBT - MS No. | DPDT | 3 | $60.85 | |
AN3027-7 | MS35059-27 | JBT - MS No. | DPDT | 5 | $61.75 | |
| AN3027-4 | MS35059-24 | JBT - MS No. | DPST | 7 | $61.75 |
Overview
|
Toggle switches are available with two or three operating positions, 1 hole mounting and a variety of circuitry & electrical ratings. Contacts are made of solid silver. Wide usage is found in aircraft, mobile, marine, electronic and industrial applications. Available in full "AN" standard size & Ultra Miniature 1/2" size. Leading manufacturers of toggle switches are Micro Switch, Alcoswitch, Cutler Hammer, & JBT, now Cutler Hammer. Orders will be filled with switches of the manufacturer whose product is available in local stock. Note: * Momentary Contact |

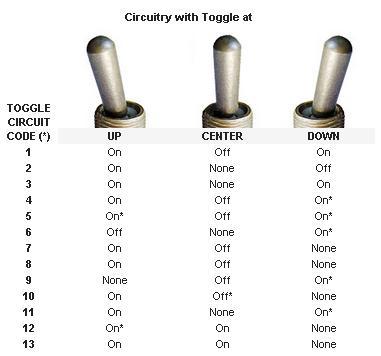

Toggle Circuit Table
|
| |  |  |  |
| UP | CENTER | DOWN | |
| 1 | On | Off | On |
| 2 | On | None | Off |
| 3 | On | None | On |
| 4 | On | Off | On* |
| 5 | On* | Off | On* |
| 6 | Off | None | On* |
| 7 | On | Off | None |
| 8 | On | Off | None |
| 9 | None | Off | On* |
| 10 | On | Off* | None |
| 11 | On | None | On* |
| 12 | On* | On | None |
| 13 | On | On | None |
| |
Tech Data
- Tech Data Sheet (PDF)

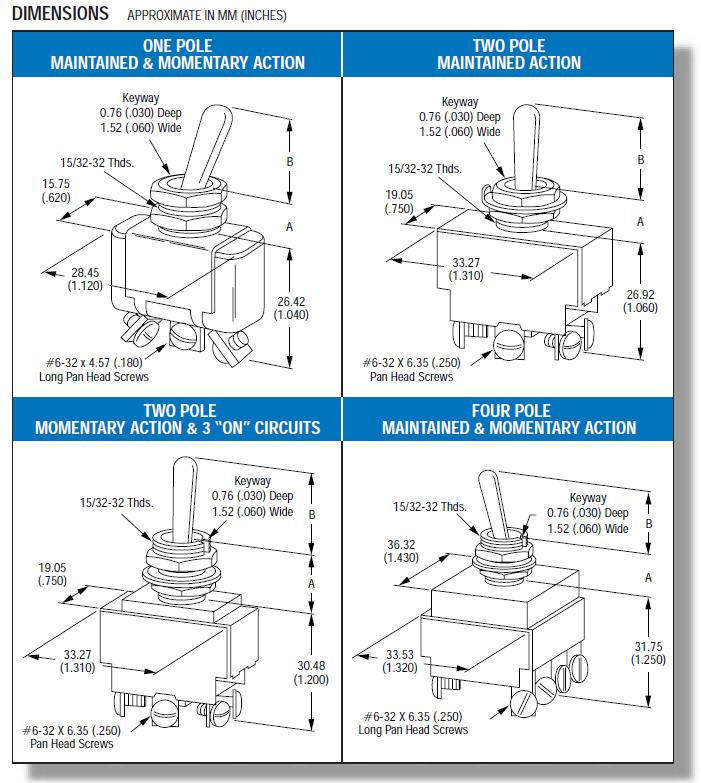

Dimensions
Reviews
I get turned on just thinking about this switch.
Verified Purchase
Toggle Switch AN3021-3
Worked great for intended use.
Verified Purchase
Toggle Switch MS35058-22
Order was for the SPDT switch for a mission critical installation of an auxillary fuel pump into my classic MGB-CT vehicle. Order was received in a timely fashion and is a quality product.
Verified Purchase
Toggle Switches AN3021-1
Professionnal quality
Verified Purchase
Toggle Switch AN3027-3
Life-Changing Lever of Destiny Before I bought this toggle switch, my life was an endless parade of uncertainty. Was the light on? Was it off? Who could say? Now, with the flick of a small metal lever, I wield the power of the gods. Need light? Click. Instant sun. Need darkness? Click. Instant brooding vampire cave. This isn’t just a switch—it’s a lifestyle. The tactile ka-chunk is more satisfying than any smartphone tap, and unlike my relationships, it has only two moods: ON and OFF. No passive-aggressive middle ground. I’ve started toggling it just for the thrill. Sometimes I sit in the dark, flick it on, whisper “behold,” and pretend I’m summoning fire for the first time in human history. My cat hates it. I love it. If you buy one, be prepared: you will toggle more than you ever thought possible. My toaster? No toggle. My fridge? No toggle. But I’m eyeing everything now with a toggle switch in mind. In short—solid switch, 10/10 would toggle again.
I received it quickly and my cat now has a nice scratch pad using the plastic bag it was in, inside a sturdy box? Thanks very much for your help. Great place for aircraft parts.
Verified Purchase
Toggle Switch MS35059-22
Exactly as described.... just that reading the chart correctly was interesting.
Verified Purchase
Toggle Switch MS35058-22
Std switch. Not mounted yet to be able to comment further.
Verified Purchase
Toggle Switch MS35058-22
Std switch. Not mounted yet to be able to comment further.
Verified Purchase
Toggle Switch MS35059-22
Std switch. Not mounted yet to be able to comment further.
Verified Purchase
Toggle Switches AN3021-1
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
This is a 20 amp switch.
Yes, these are the approximate dimensions: 1-1/8" L x 5/8" W x 5/8" H.
Correct. With "None" in the center position, the switch will toggle only all the way up to all the way down.
Yes, push the lever to either position to activate, and the lever will spring back to center off, if not held in position.
Yes, these switched will work in 14v dc systems.
The hole size for the toggle switches to fit through the panel is 1/2".
The * represents momentary on. Essentially it's on at contact and then once released it is back off. It does not stay on.
The keyway slot is on the down/off position.
Enter 12 in the input box in the "Buy" column in the ordering grid. Then, click the "Add to Cart" orange button below and the items will be instantly added to the shopping cart.
Yes, included are 2 hex nuts, 1 lock ring, and 1 lock washer.
