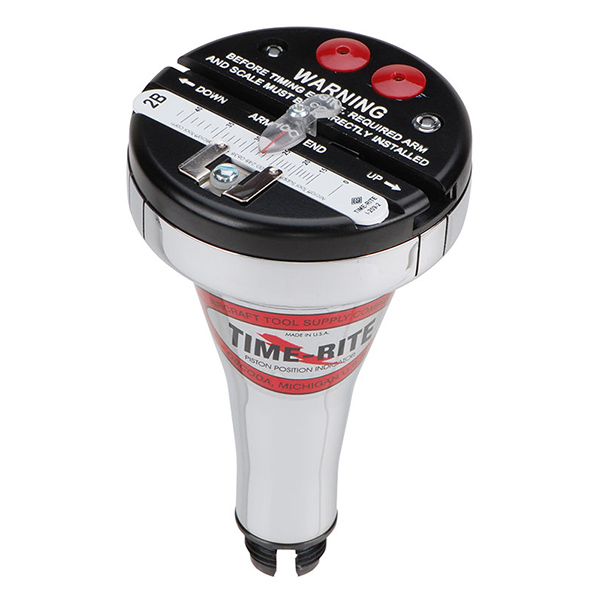

Time-Rite is an instrument designed for precision timing of aircraft engines by direct measurement of piston travel.
The features of the Time-Rite design a moveable slide pointer, and an adjustable calibrated scale, eliminate the need for finding top dead center and compensate for the variables involved in accurate piston positioning.
Calibrated scales are available for most types of engines, and scale calibrations are obtained in cooperation with, and are approved by the engine manufactures.
Because of the difference in spark plug locations and piston dome shapes, different pivot arms are available to adapt the Time-Rite to most aircraft engines. All arms are easily interchanged. Carries a Lifetime ATS-Pro warranty
Note: This is the BASIC 18MM unit (arms and scales not included).
Note: This basic unit does not include scales or arms, which must be purchased separately. We also feature a complete kit which does include all arms and scales for 14mm engines I200B14K, 18mm engines I200B18K, or both I200BCK.
