Factory-new Airpath compasses as used in almost all production aircraft. 2.25" size.
A replacement for the made in China product which I purchased only a few years ago. This Airpath compass appears to work as advertised. It has been swung and adjusted in the usual manner. No problems. I should have done this the first time instead of going the cheap route.
The compass was delivered on time and was exactly what I had ordered. Compass was installed on a glare shield mount in a Grumman AA1-A Trainer and works perfectly.
This was an easy install and an exact replacement for the original compass in my aircraft. It compensated easily and is as good as it gets for a whisky compass.
Great unit made in the USA. They’ve stop putting backing nuts on it which is a little cheap. Very solid.

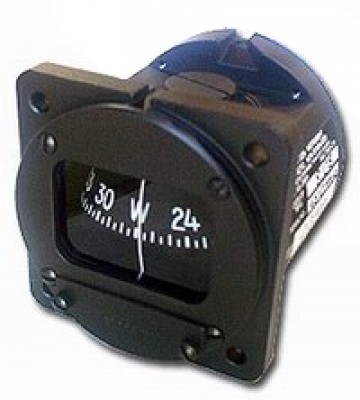

AIRPATH C2300 PANEL MOUNT COMPASS NON LIT NORTH HEM TSO
Real good for the price. Deviation was off by a degree or two except on 120 which showed a -6 degrees which was configured on to the deviation card that came with it. Electronics in the plane may be the cause of such a deviation. Easy install. Does not come with dash board bracket. I recommend this if not wanting to spend the $200 extra for the best ones.
I am sure the compass is worthy of a 5 star rating, but there are other problems. The literature says it comes with no compass card or card holder, we need to order those separately. So I did. The compass did come with a card holder and card. But the edges of the card holder are crimped so tightly that the card and protective plastic will not fit into it. Also the screws holding the cover plate on the compass, which I expect are to be used to attach the card holder, have such big heads that there appears to be no way to get the card in place. There is also a third hole in the middle of the holder, and an extra screw, which will not screw into the center hole in the compass. It should be relatively simple to attach a card holder to a compass, but perhaps I am overlooking something?
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
This compass weighs approximately .56 lbs on its own.
Part number 10-03140 does not have the threads for mounting the screw in the center as this is a panel mount compass. Part number 10-01341 does have the 2 wires that come from the top of the unit.
The C2300 compass fits in a 2.25 hole and needs 3 inches of clearance from behind the panel.
Per the manufacturer: Yes, the compass fluid for the C2300 series airpath compass is included inside of the unit.
Yes, it does come with the mounting screws and nuts required.
Part number 10-08100 is a kerosene based fluid.
No, the unlighted Airpath Compass does not require a power source for operation.
No, they must be ordered separately. Please see P/N: 10-01659 for the card and P/N: 10-01658 for the holder.
Part number 10-01341 does have the 2 wires that come from the top of the unit. These wires are bare at the end and will need to be swung after install.
