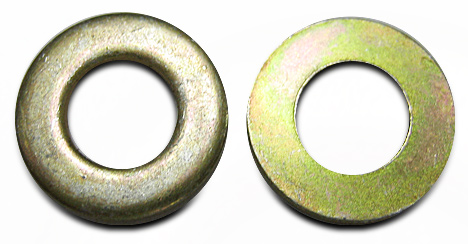

AN960 FLAT ALUMINUM WASHERS

From $0.03 to $1.05
AN No. Superseding NAS No. Bolt
or
Screw
Size
O.D.
(in.)
I.D.
(in.)
Thickness Price Buy
AN960PD-4
NAS1149DN432JNo. 4.312.124.032$0.06
Quantity
AN960PD-6
NAS1149DN632JNo. 6.375.149.032$0.05
Quantity
AN960PD-8
NAS1149DN832JNo. 8.375.174.032$0.06
Quantity
AN960PD-10
NAS1149DO363J3/16.438.203.063$0.07
Quantity
AN960PD-416
NAS1149DO463J1/40.5.265.063$0.09
Quantity
AN960PD-516
NAS1149DO563J5/16.562.328.063$0.13
Quantity
AN960PD-616
NAS1149DO663J3/8.625.390.063$0.15
Quantity
AN960PD-716
NAS1149DO763J7/16.75.453.063$0.17
Quantity
AN960PD-816
NAS1149DO863J1/2.875.515.063$0.21
Quantity
AN960PD-916
NAS1149DO963J9/161.062.578.063$1.05
Quantity
AN960PD-4L
NAS1149DN416JNo. 4.312.124.016$0.05
Quantity
AN960PD-6L
NAS1149DN616JNo. 6.375.149.016$0.05
Quantity
AN960PD-8L
NAS1149DN816JNo. 8.375.174.016$0.06
Quantity
AN960PD-10L
NAS1149DO316J3/16.438.203.016$0.05
Quantity
AN960PD-416L
NAS1149DO416J1/4.500.265.016$0.06
Quantity
AN960PD-516L
NAS1149DO516J5/16.562.328.016$0.07
Quantity
AN960PD-616L
NAS1149DO616J3/8.625.390.016$0.09
Quantity
AN960PD-716L
NAS1149DO716J7/16.750.453.016$0.19
Quantity
AN960PD-816L
NAS1149DO816J1/2.875.515.016$0.13
Quantity
AN960PD-916L
NAS1149DO916J9/161.062.578.016$0.21
Quantity
AN960C4LNAS1149CN416RNo.4.312.125.016$0.03
Quantity
Subtotal $0.00
Add to Wishlist

Overview

AN960 flat washers are used under hex nuts to provide a smooth bearing surface, as shims to obtain the correct grip length for a bolt and nut assembly, and to adjust the position of AN310 and AN320 castle nuts with respect to drilled cotter pin holes in bolts and clevis pins. Available in regular and light thickness.

Light Series Washers:
The letter "L" to dash number indicates light series.
AN960PD-10L is a light series anodized aluminum washer for a 3/16" dia. bolt.
Light series washers must be manually input on order form.

D Series Washers:
The letter "D" to dash number indicates the aluminum alloy series.


Less 20% for quantity 100/Part No.
  • Customers Also Viewed
  • Frequently Purchased With
  • Related Items

Reviews

Works as expected without second thought.

Blane J Verified Purchase

ALUM WASHER, FLAT AN960PD-8

June 8, 2021

nominal milspec part, no worries

David J
March 16, 2021

The washers were about 4 days later than the USPS tacking information - NOT YOUR PROBLEM. Just wanted to let you know whats happening with our postal system.

H T
January 13, 2021

Very good quality.

Ricardo V
December 20, 2018

These are thin and small washers. If you need a thicker heavier washer use the Baffle seal back-up washers.

Aurel
November 16, 2018

Slightly gold anodized finish, but different than steel. Is it just my eyes or do aluminum washers seem thicker than steel? The measurements are the same, however

Robin O
August 24, 2018

Regular washer, very flat surfaces. Excellent substitute for AN960 where weight saving is a factor.

Igor Z
January 25, 2018

Great service. Product as expected.

John H
October 29, 2017

excellent

Gard
August 12, 2017

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: AN960PD-416L: is stated as anodized aluminum, what aluminum?

The tech data sheet allows 2024T3 or 2024T4 is allowed to be used for AN960PD aluminum washers.
