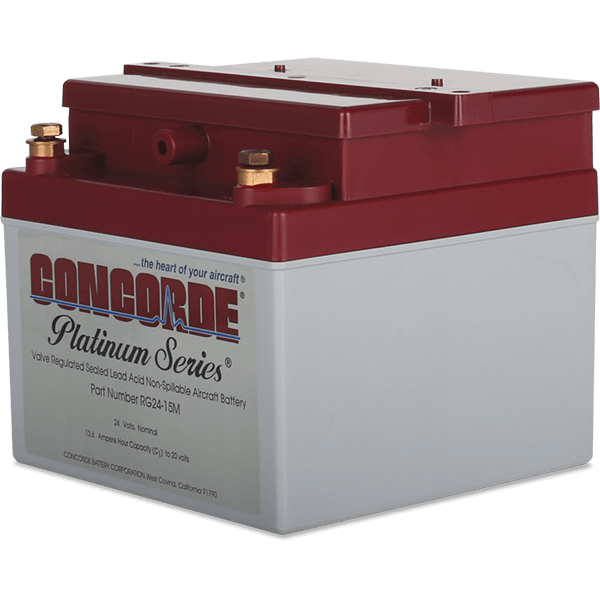

Concorde RG24-15M Platinum Series Sealed Lead Acid Aircraft Battery

33 Reviews 7 Answered Questions

$1140.00/Each

Add to Wishlist

Part# 11-04951
MFR Model# RG24-15M

JUMP TO
Overview
Documents
Reviews
Q&A
View in Catalog

Overview

Recombinant Gas - The RG® Series are low resistance, valve regulated lead acid (VRLA) batteries.

Superior starting power
Reliable essential power in the event of a generator failure
Low impedance design
Maintenance free
Constructed with non removable vent valves - no addition of electrolyte or water required
Aerobatic: Non spillable at any altitude or attitude
Factory tested to assure airworthiness
Shipped fully charged and ready to install
Manufactured with absorbed glass mat separators (AGM)
The RG24-15M features a manifold to facilitate direct replacement of the originally designed manifold vented battery
RG® Series batteries ship non-HAZMAT

NOTE: This aircraft battery is not designed or intended for turbine aircraft engine starting applications. Warranty coverage applies to reciprocating aircraft engine starting, and standby / essential power installations.

This Concorde Battery is TSO Approved under FAA TSO-C173a. TSO Approved authorizes Concorde Battery to produce a part to a Technical Standard Order. TSO Approved is both design and production approval of the battery.

Battery Type	Voltage	Ampere Hours	Max. Weight	Cold Cranking Amps	Our P/N	Battery Diagram PDF
RG-24-15M Platinum Series	24	13.6	29.5 lbs.	200	11-04951	Download RG-24-15M Diagram

Documents

Frequently Purchased With
Customers Also Viewed

Reviews

Submit a Review

Good product

Caldwell A

Verified Purchase

CONCORDE SEALED BATTERY RG24-15M

December 3, 2022

Airquest A

Verified Purchase

CONCORDE SEALED BATTERY RG24-15M

September 19, 2022

Our flight school has been using Concorde batteries for decades! They handle deep cycle events exceptionally well and consistently outlast their competitors (Cessna OEM) product by years! Follow the pre-installation recommendations and you will have an excellent, long-term product. Concorde RGM sealed batteries are worth the money difference - although I would be the first to accept a price reduction across the board!

Specialty F

Verified Purchase

CONCORDE SEALED BATTERY RG24-15M

July 14, 2022

Battery arrived on time in perfect shape. Installed as advertised working perfectly.

Robert G

Verified Purchase

CONCORDE SEALED BATTERY RG24-15M

July 9, 2022

Ive owned 2 of these batteries over the last ten years in my plane and have had no issues.

Brant M

Verified Purchase

CONCORDE SEALED BATTERY RG24-15M

June 28, 2022

Great customer service

Timothy S

Verified Purchase

CONCORDE SEALED BATTERY RG24-15M

June 9, 2022

Order arrived when expected in perfect condition. Thank you!

E. G

Verified Purchase

CONCORDE SEALED BATTERY RG24-15M

March 25, 2022

Concorde makes excellent products. This is an exact fit for my 1982 Cessna 182R. The STC can be obtained from Concorde for free.

Aaron B

Verified Purchase

CONCORDE SEALED BATTERY RG24-15M

February 22, 2022

Wonderful product that provides a strong start!

Morty L

Verified Purchase

CONCORDE SEALED BATTERY RG24-15M

February 9, 2022

The aircraft battery came charged to 26 volts which made it ready for installation

Pacific L

Verified Purchase

CONCORDE SEALED BATTERY RG24-15M

January 2, 2022

Great battery at a reasonable price.

Edwin A

Verified Purchase

CONCORDE SEALED BATTERY RG24-15M

November 2, 2021

My first Concorder RG24-15M gave me right at seven years of service life. Hope this one does too. And that was being on a ramp, with it difficult to keep it on a BatteryMinder.

Todd D

Verified Purchase

CONCORDE SEALED BATTERY RG24-15M

October 14, 2021

Best closed cell battery on the market. Replaced same battery after 6 years Always attached aviation pulsing battery minder.

Brian W

Verified Purchase

CONCORDE SEALED BATTERY RG24-15M

August 26, 2021

I have been using this battery for the last three replacements. It is an excellent battery and last longer than the flooded type. It fits perfectly in my PA 46-3:10 Malibu.

Dennis L

Verified Purchase

CONCORDE SEALED BATTERY RG24-15M

June 4, 2021

Great long lasting battery. A little too late xpensive

Phil

February 8, 2021

Excellent service and delivery as always !! Great company to work with !

Edward F

January 13, 2021

Finally had to replace my 6 year old Concorde RG24-15M in my Archer. It was still turning the engine over just fine and it never failed to get me started but, it did fail its capacity test during the last annual. At low rpm I would get a low bus voltage indication. So, I still used it for a few more months and then replaced it. The new one is really cranking the engine and I no longer get a low bus voltage indication at low engine rpm. I hope I get at least another 6 years out of this new battery.

Mark A

September 25, 2020

A direct plug and play replacement. good cranking amps

Carolyon T

September 12, 2020

I initially ordered the battery without the M suffix. But during the shipping process I called in and customer service was able to make the change.. I was very happy that just to be done and it did not change the shipping delivery status

Leroy V

July 29, 2020

Perfect fit. Charged and ready to go. I had concord batteries before and they have great reserve power and last long.

Cory

May 28, 2020

Battery worked great ! But ups took 5 days to get and I paid for 2nd day air shipping! From Georgia to the keys

Johnny W

May 14, 2020

Replaced a 3.5 yr old Concorde RG24-15M battery with same. Plane resides in very hot southwest FL which hard on batteries. Battery is sealed and did not leak at all.

Robert

March 10, 2020

Used this model to replace a failing Gill battery in my T182T. Fit was fine. You just have to be careful when tightening down the terminals (this batter uses bolts to secure the wires rather than terminal studs with a nut on the Gill). This one has much better cranking amps than the one I replaced. Hoping the Concorde last longer and helps with my hot starts. Arrived in 2 days (free shipping) which was awesome for a heavy battery.

Steve W

April 28, 2019

After years of trashing Gill batteries every 2-3 years switched to these and got 7 years out of my last battery in my Cessna 172S.

Randy

December 2, 2018

This is my 2nd Concorde. My first one was 5 years ago and would have lasted longer if I had kept it charged properly. It fit perfectly in my 172N. I agree that it is very expensive but it is a quality battery.

Bill C

September 16, 2018

This is the 2nd Concorde Ive bought for my Skylane. The last one was 6-1/2 years ago. I keep it in a hangar on a trickle charger & fly it weekly, but thats pretty incredible life for any battery. These are more costly than the other options, but Im very happy with the cranking performance, quality of workmanship and the long life of these batteries. Quick, free shipping from Aircraft Spruce, too!

Garry W

August 16, 2018

Love these AGM batteries. Have been using them since the 90s. Much better than OEM. Perfect fit in 24v 182Q without battery box. Just wish price was similar to the 12v RGs.

Harry

April 10, 2018

Great batteries. Ive been using them for 15 years in a flight training fleet.

Westminster C

November 18, 2017

Outstanding battery but expensive

Michael O

August 4, 2017

Excellent product - as advertised

Rex M

March 5, 2017

I have ordered this Battery to replace the Gill 243 for my T182T. I found this product to be a bit costly. Awaiting the STC paper work,which seems a bit slow in comming. I hear great things for this sealed battery.

D.r. M

August 3, 2020

did not fit correctly like it should of

Jason

May 22, 2017

Product does not fit an N model 172 with a battery box

Rob

June 27, 2017

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: If I want to install a BatteryMinder to keep this Concorde RG24-15M battery charged, what is recommended for this battery?

The recommended model would be the BatteryMinder 24041-AA-S5, our part # 11-10851. We have added it to the Accessories tab for your convenience.

Q: Is the Concorde RG24-15M battery considered dangerous goods for shipping? If so, can you ship without acid?

No, this battery is not considered dangerous goods.

Q: I have a Cirrus SR22 with a Gill 243 battery, will this Concorde RG24-15M battery slide right in the rack with the mounting holes matching, no alterations required?

Yes, the RG24-15M will fit perfectly or this application.

Q: Can I use this capacity tester for this kind of battery GILL TCT-1000 12V/24V CAPACITY TESTER?

Yes this tester can be used to test his battery.

Q: Does this Battery require a STC and 337 for the T-182T or is it a direct replacement?

There is an stc for this aircraft and battery available on Concorde's website.

Q: Can I put this RG24-15M battery in front of the firewall? Will the capacity and safety of the battery be adversely affected by the ambient temperature?

Heat is an issue. When they mount batteries on the fire wall the batteries are exposed to heat from the engine which results in shorter than desired life. If they install the battery in a battery box that has cooling then they should be fine.

Q: Am I required to file a 337 with the FAA when I install the RG24-15M in my 1997 C182S (non G1000--steam guages)?

That looks like it is covered by STC#SA01118WI. It can be downloaded from Concorde directly.
