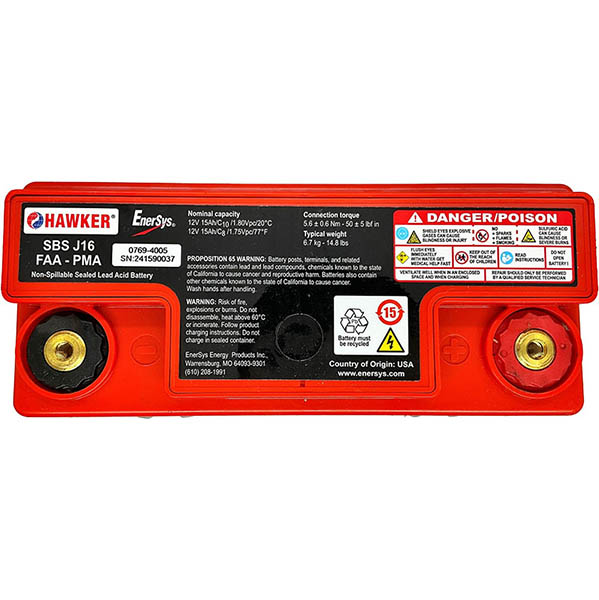

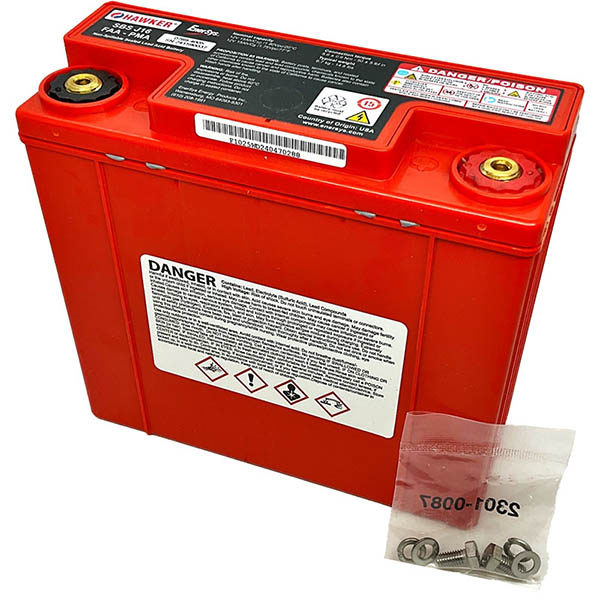

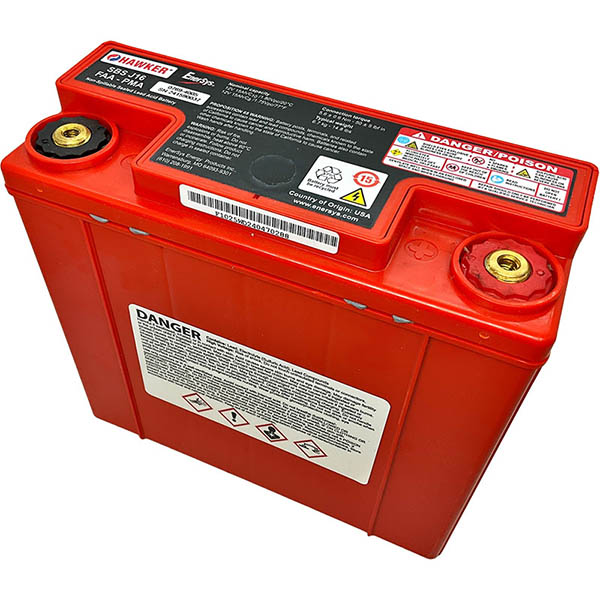

Powersafe Dry Cell Battery SBS J-16 FAA PMA

$356.00/Each
Quantity
Add to Wishlist
Part# 11-01945
MFR Model# SBSJ16

Overview

Battery Features:
  • Drycell design for mounting in any orientation and fully aerobatic use
  • 2 year storage life to 50% state of charge when stored at 77F (25C)
  • 70% of rated starting power delivered at -4F (-20C)
FAA-PMA Certified Sealed Aircraft Battery For Piper PA-18 and PA-19 Series
STC MUST BE PURCHASED SEPARATELY WITH STCD BATTERY BOX KIT.

FAA-PMA Certified Sealed Aircraft Battery For Cessna C-170, C-180, C-195 Aircraft
STC MUST BE PURCHASED SEPARATELY WITH STCD BATTERY BOX KIT.

337 field approval must be filed for all other aircraft.

Specifications

  • Nominal Capacity @ C1: 12.3 Ah
  • Nominal Capacity @ C/10: 16.0 Ah
  • Altitude Rating: -1,500 to 70,000 ft.
  • 5 second 80F (27C) cranking amps to 7.2V: 680 amps
  • CCA @ 0F (-17.8C): 220 amps
  • CA @ 32F (0C): 300 amps
  • HCA @ 80F (27C): 370 amps
  • Reserve Capacity: 25 minutes @25amps
  • Terminals: Brass female for M6 stainless steel bolt
  • Terminal Torque: 50 in-lb
  • Length, in. (mm): 7.15 (181.61)
  • Width, in (mm): 3.01 (76.33)
  • Height, in (mm): 6.61 (167.77)
  • Weight, lb (kg): 15.4 (6.99)
  • Resistance at 1kHz @77F: 7 mOhm
  • Short circuit current: >1,800 amps

Reviews

The battery came with no hardware to attach the cables. When I was running a shop and working on GA aircraft for 51 years I sold hundreds of batteries. Never knew them to come without hardware. Never sold one of these though. It is 6 mm by the way.

Ronny R Verified Purchase

POWERSAFE BATTERY SBSJ16

April 9, 2024

The Batteries were correct and arrived on time.

Adf H Verified Purchase

POWERSAFE BATTERY SBSJ16

April 1, 2024

Have just installed it but havent started the airplane yet. Lets give it a couple years.

Miac S Verified Purchase

POWERSAFE BATTERY SBSJ16

March 30, 2024

Installed and working fine.

Jim F Verified Purchase

POWERSAFE BATTERY SBSJ16

March 29, 2024

I have used these batteries for 20 years. I replaced them in about fours years is I was going to remote areas. I would use the ones I pulled out for various jobs in the Hanger. They would last another 10 years in the hanger, What really surprised me is they would hold a charge all winter.

Thomas B Verified Purchase

POWERSAFE BATTERY SBSJ16

March 5, 2024

Direct replacement for existing battery

Jeffrey C Verified Purchase

POWERSAFE BATTERY SBSJ16

December 30, 2023

Chep G Verified Purchase

POWERSAFE BATTERY SBSJ16

November 11, 2023

Fit where it needed to go

Springdale A Verified Purchase

POWERSAFE BATTERY SBSJ16

October 13, 2023

Just received the battery and installed it, did not get any certification paperwork.

Kerry S Verified Purchase

POWERSAFE BATTERY SBSJ16

October 3, 2023

Just replaced this battery in my Christavia MK-1. Originally installed in April 2004 when plane was completed. 0-200 cranks fast, easy starts. I hope this one also last 19 years. Great battery!

Randall K Verified Purchase

POWERSAFE BATTERY SBSJ16

April 4, 2023

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Do you have a Form-1 or 8130 form for the Odyssey Dry Cell Battery SBS J-16?

For FAA-PMA'd parts an 8130 form can be ordered alongside for an additional fee. Please indicate the request for this form at time of purchase.

Q: Odyssey battery SBS-J16: does the battery come with terminal hardware?

Yes, the SBS-J16 does come with the terminal bolts and washers.

Q: Is the Oddysey SBS J-16 dry cell battery considered hazardous material for shipping purposes?

No, this battery is not considered hazmat for shipping.

Q: Is the SBSJ-16 delivered charged? If not, at what amperage should it be charged?

Yes, this battery is delivered charges. Should read between 12.65 and 12.85 amps.

Q: Which chargers or Battery Minder systems are approved for this Odyssey SBS J-16 battery?

Part # 11-19241 is recommended. This is 128CEC2-AA-S3 charger which is made to work with Hawker/Odyssey batteries which are very similar to this Powersafe battery.

Q: Can you just take the old lead acid battery out of the plane and hook this one in it place being charged from the alternator or do you need a special interface for this battery (SBS J-16)?

The batteries are charged ready to install.

Q: Does this Odyssey battery have a PMA number stamp affixed to it?

It has FAA/PMA stamped on the top of the battery.

Q: You dont mention it on your web page but svenns aviation has an STC to install this battery in the following aircraft. PA-22, PA-20, PA-19, PA-18, PA-16, PA-14 and PA-12 Here is the web page http://svennsaviation.com/ and STC page http://svennsaviation.com/stcs/battery/ I dont work for this company. Just trying to help out fellow piper owners.

Thank you for providing this detail on the battery. It has been posted to the Q+A section for other customers.

Q: What kind of warranty does the Odyseey Dry Cell SBS J-16 battery have?

2 year manufacturer's warranty from purchase.

Q: Is this Powersafe Dry Cell Battery SBS J-16 a 12 volt battery?

Yes, this is a 12v battery.
