Odyssey Extreme Dry Cell Battery ODS-AGM16L (PC680)

$248.95/Each
Part# 11-02233
MFR Model# ODS-AGM16L

Overview

ODYSSEY Powersport Battery Model PC680
(internal threaded brass terminals, M6 SS bolts, and L bracket adapter)

Powersport vehicles need a powerful battery that’s built to take the constant pounding that comes with the territory, whether it's is on land, sea, or snow.

Featuring rugged construction and packed tightly with pure lead plates, the non-spillable AGM design ODYSSEY battery protects against the shock and vibration that can quickly destroy other batteries. And the pure lead plates mean more power—twice the overall power and three times the life of conventional batteries—up to 400 cycles at 80% depth of discharge!

Specifications
    Pulse (5-second) Hot Cranking Amps (PHCA): 520
    Cold Cranking Amps (CCA): 170
    20Hr Nominal Capacity (Ah): 16
    Reserve Capacity Minutes: 24

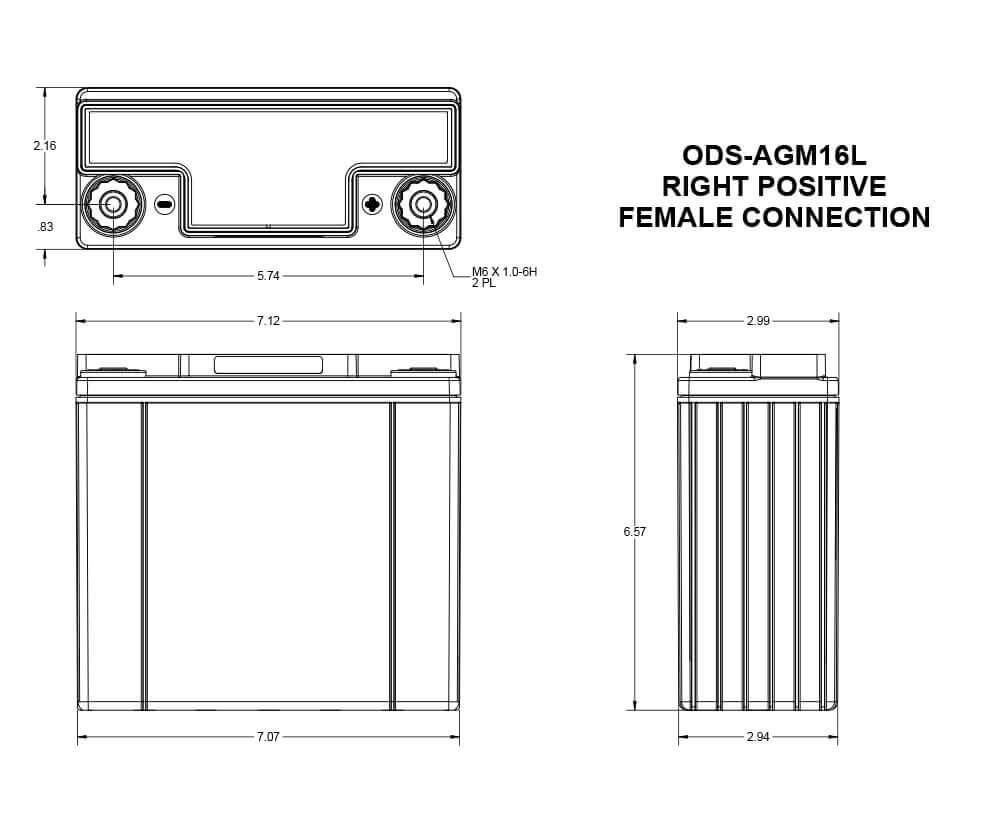

    Dimensions L x W x H (in): 7.15 x 3.00 x 6.65
    Weight (lbs): 15.4
    Weight (kg): 7

  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

These batteries are quite dependable. this my second one since I first flew my airplane in 2013. I had unfortunately left my master switch on and drained the battery completely a few times over the years but it always came back to full power when charged. I just thought I wouldnt press my luck with it and purchased another one. The old one still works well in my lawn tractor!

Bill P Verified Purchase

ODYSSEY EXTREME BATTERY ODS-AGM16L ( PC680 )

November 10, 2022

Replaced the battery since the last one lasted 6 years in Colorados climate. The new battery made a huge difference in starting power.

Tom L Verified Purchase

ODYSSEY EXTREME BATTERY ODS-AGM16L ( PC680 )

October 23, 2022

Jim S Verified Purchase

ODYSSEY EXTREME BATTERY ODS-AGM16L ( PC680 )

August 17, 2022

My last PC680 lasted 5 years and still was going strong but it was time to replace it for peace of mind.

Kobbe L Verified Purchase

ODYSSEY EXTREME BATTERY ODS-AGM16L ( PC680 )

June 15, 2022

My 3rd Odyssey battery in my homebuilt Cavalier. Compact, relatively light, sealed and with a good life allowed installation on the firewall instead of in the baggage compartment improving cg, empty weight and reducing voltage loss when starting.

Dennis O Verified Purchase

ODYSSEY EXTREME BATTERY ODS-AGM16L ( PC680 )

April 9, 2022

Product is installed in aircraft, working OK.

Joe V Verified Purchase

ODYSSEY EXTREME BATTERY ODS-AGM16L ( PC680 )

April 5, 2022

Michael S Verified Purchase

ODYSSEY EXTREME BATTERY ODS-AGM16L ( PC680 )

March 25, 2022

👍👍

Roger H Verified Purchase

ODYSSEY EXTREME BATTERY ODS-AGM16L ( PC680 )

March 10, 2022

Russel L Verified Purchase

ODYSSEY EXTREME BATTERY ODS-AGM16L ( PC680 )

November 22, 2021

nice battery, light and small

Rich R Verified Purchase

ODYSSEY EXTREME BATTERY ODS-AGM16L ( PC680 )

August 5, 2021

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the bolt size for the terminals? Thank you. Lyle Mead

The terminals are a metric M6 bolt size.

Q: Having trouble interpreting the dimensions of the PC 680 and the SBS J16 batteries. Are they the same (to within 1/16 inch)?

Per the supplier: The cases are the same size.

Q: Does this battery come with L shaped brackets?

This unit does not come with any installation brackets.

Q: What is the CCA rating for this Odyssey PC680 dry cell battery?

The CCA rating for this battery is 170 Cold Cranking Amps (CCA).

Q: Can this battery pc680 be installed in a C172? If so is there a stc for it use?

No, the Odyssey dry cell battery (11-02233) is not approved for use in certified aircraft.

Q: Does this type of dry cell battery require a drain or some type of ventilation on the battery hold down box?

No, this is an AGM battery and no emissions are omitted.

Q: Does the Odyssey PC680 need to be mounted upright?

This can be mounted anyway except for upside down.

Q: Can two of these Odyssey PC680 batteries be strapped together for 24V operation? Is there any holder for this configuration?

They can be strapped together for 24volts but there is no holder for them.

Q: Are any Odyssey batteries FAA/PMA approved?

Part # 11-01945 is a Powersafe battery that is FAA Approved.

Q: Does charging this battery require a certain type of charger (constant amp vs. variable or graduated amp)?

No, you do not need a special charger for this battery.
