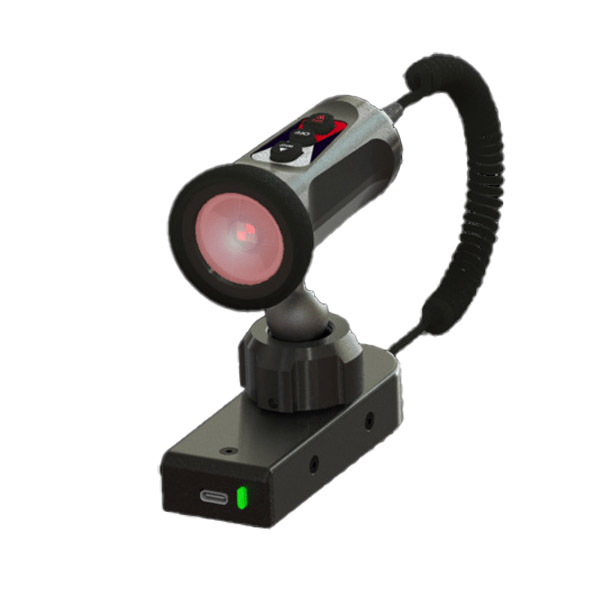

LUX USB-Bi Color LED Lamp

0 Reviews 0 Answered Questions
$2489.00/Each
Quantity
Add to Wishlist
Part# 13-25989
MFR Model# C1000-AUL15

Overview

The LUX and UCB are ruggedized utility lamp/USB console accessories designed for commercial, industrial, and military environments. A small footprint enables the LUX and UCB to be mounted on vertical or horizontal surfaces on a variety of vehicle or fixed console locations. Additional acceptance testing can be expanded to any customer requirement.

Fast Swap and Upgradeable Interface
The LUX/UCB charging module can be changed for upgrade or repair in seconds. Active over-current fault protection safeguards the electrical bus and the tablet components. The removable USB power modules can be upgraded to any future interface.

LUX Lamp Options and Highlights
The LUX lamp has a bi-colored 80,000 hour LED array with optional NVIS compliance or custom optic specifications. Three tactile buttons select the color, intensity, and power on-off using single hand control. The lamp assembly secures into a 360° universal spring-lock docking socket.

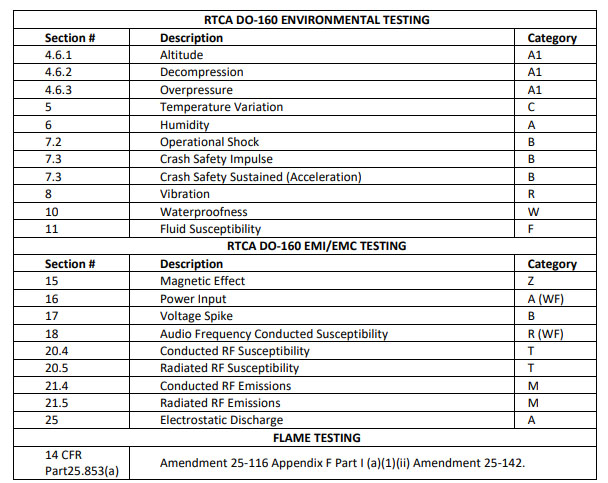

Testing

Specifications

  • Power Input: 28VAC/400Hz or 12-80VDC
  • Power Consumption: Less than 1 AMP @ 28V AC/DC
  • USB interface: Waterproof USB-C (15 Watts)
  • Alternate interface: DIN Connectors (up to 45 Watts)
  • Housing Material: 6061-T6 Alum. anodized or powder-coated
  • Weight LUX: 300 – 350 grams (depending on options)
  • Weight UCB: 100 – 150 grams
  • Dimensions LUX: 10.25cm x 9.5cm x 3.7cm (3.75”H x 4.0”L x 1.45”W)
  • Dimensions UCB: 10.25cm x 1.9cm x 3.7cm (0.75”H x 4.0”L x 1.45”W)
  • ON/OFF Control: Lamp and USB power ON/OFF switch
  • LED Colors: 4 LED’s Array, 2 colors per array of white / red or
  • green-cyan NVIS Class A, B, C
  • LED Intensity: 0-20 Lumens Max. per LED or custom specification.
