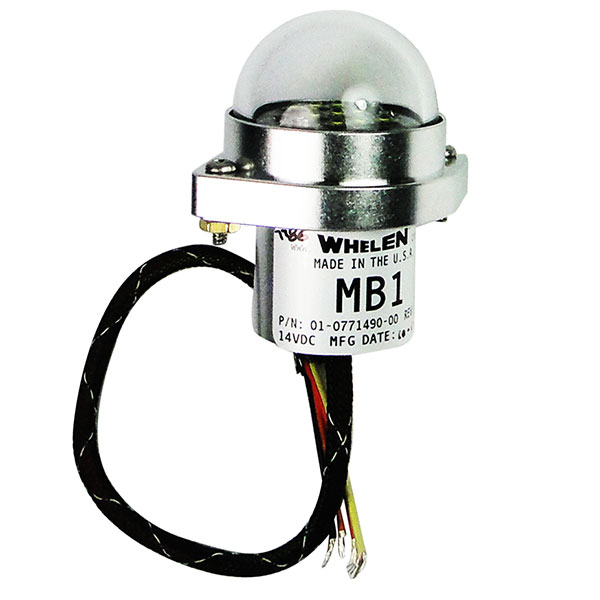

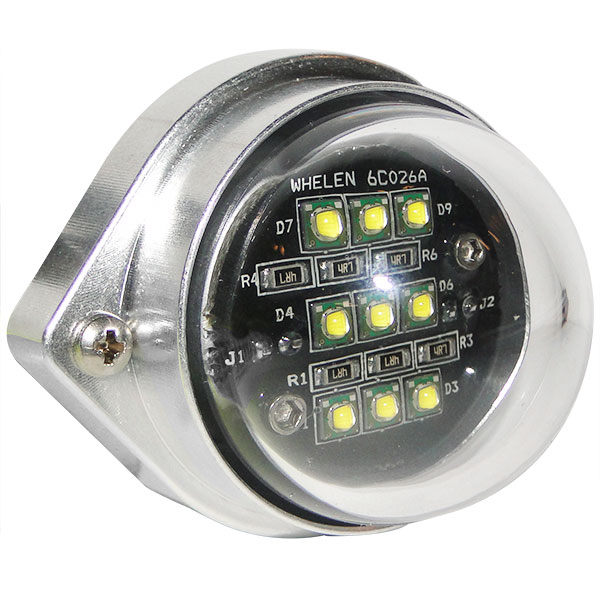

WHELEN MICROBURST I TAIL LIGHT ASSEMBLY

$368.00/Each
Quantity
Add to Wishlist
Part# 11-08472
MFR Model# 01-0771490-00

Overview

LED Tail Lighting for Experimental and Light Sport Aircraft
LEDs are lightweight, low current and incredibly bright, vibration and moisture resistant... the ideal lighting technology for experience and LSA aircraft.

Note: Product does not meet the requirements of 91.205 (c), required for night flight.


California Prop 65 Warning Symbol

WARNING: This product can expose you to chemicals including Methylene Chloride, which is / are known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Features

  • Economically priced.
  • 14 VDC.
  • Low current, long life, lightweight.
  • Self-contained (no external power supply needed).
  • Aerodynamic with vibration and moisture resistance.
  • Synchronizable.
  • Replaceable lenses.
  • Super bright, rivaling strobe in impact.
  • Available with CometFlash®, the lighting concept
  • that revolutionized aviation lighting.

Reference Chart

Model Name
Color
Weight
Current
Description
Dimension
MicroBurst III
Red
.21 lbs
.45 amp
(avg)
Forward facing Wingtip Nav, with CometFlash 180° LED-Strobe and rear facing white Nav.
1.5” (38mm)
exposed Height x 1.6” (41mm) Width x 4.6” (116mm) Length.
Green
MicroBurst II
Red
.20 lbs
.40 amp
(avg)
Forward facing Wingtip Nav, with CometFlash 180° LED-Strobe.
Green
1.7” (43mm) Height x 1.5” (38mm) Diameter
MicroBurst I
White
.15 lbs
.35amp
(avg)
Nav taillight with CometFlash 180°LED-Strobe.

Documents

  • Customers Also Viewed
  • Frequently Purchased With
  • Related Items

Reviews

None

Terrence C
August 3, 2020

Straightforward install (rv7), well made and bright.

Len
May 3, 2018

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Regarding the Whelen Microburst: Can strobe and nav work independent of each other? If so, how is it wired and switched?

Per the supplier: Please see installation guide in the "Documents" tab with wiring diagram. These can be operated independently and function independently.

Q: Is the Whelen Microburst I compatible with a 28 Volt systems?

No, the Microburst I tail light is made for 14V systems.

Q: What kind of conductor,(size, shielded or not) do you use to plug it?

No shielding required. 20 awg wire is acceptable.
