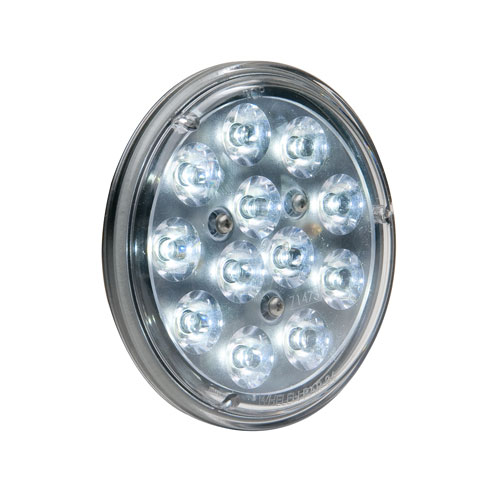

WHELEN PARMETHEUS PLUS LED REPLACEMENT 14V LANDING LIGHT - PAR 36 - P36P1L

$334.00/Each
Quantity
Add to Wishlist
Part# 11-12976
MFR Model# 01-0771833-10

Overview

FAA-PMA Approved
Parmetheus Plus PAR36 LED lights are a drop-in replacement for outdated Halogen PMA Approved. Lightweight, low-current and moisture resistant, they provide stable light output for thousands of operating hours. These LED lights are 40% brighter output than the original Parmetheus Series assemblies.

LED lighting is the ideal technology for aviation applications. Whelen LED lights are time and field-tested for reliability and long-life performance under the tough conditions required by Fire, Emergency, DOT and Law Enforcement professionals around the world.

STC-PMA

California Prop 65 Warning Symbol

WARNING: This product can expose you to chemicals including Methylene Chloride, which is / are known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Features

  • Direct replacement for outdated PAR36 Halogen and HID lamps.
  • First commercially available PAR36 LED for Aviation applications.
  • 10,000 hour operating life.
  • Available in Landing and Taxi versions.
  • Convenient “Drop In” design for ease of installation:
  • Power wiring attaches to brass screw terminals; Weight is virtually identical to previous PAR36 lamps; Assembly design includes clocking notch
  • Polycarbonate, replaceable, hard-coated outer lens.
  • Metal, heat dissipating coated housing.
  • Whelen TIR™ (Total Internal Reflector) technology rivals strobe in intensity and effectiveness.
  • Proudly designed and manufactured in the USA.
  • Five year warranty.

Specifications

  • Model: P36P1L
  • Type: Landing (Spot Light, 10 degree)
  • Amps: 1.2
  • Volts: 14 VDC
  • Size: 4.38" Round x 1.75" Face to Screw terminal
  • Accessories
  • Customers Also Viewed
  • Frequently Purchased With

Reviews

I replaced original landing light bulb with this one and cant be happier! The light is much brighter and it drains significantly less current.

Andrew K Verified Purchase

WHELEN LED PARMETHEUS PLUS PAR36 14V LAND P36P1L

October 5, 2021

Direct replacement for the existing landing light except the terminals are reversed. Not a big deal, just pay attention. Definitely much brighter with much less power draw.

Lorry S Verified Purchase

WHELEN LED PARMETHEUS PLUS PAR36 14V LAND P36P1L

September 2, 2021

Installed on a Piper 73 PA28 235. Im very pleased with the Whelen LED landing light. As others have mentioned, the light doesnt reach quite as far as the halogen lamp when on final to the land at night, but the overall brightness seems much better than the halogen lamp. I would recommend this a replacement landing light.

Devin S Verified Purchase

WHELEN LED PARMETHEUS PLUS PAR36 14V LAND P36P1L

August 18, 2021

Bright and easy on your generator

Ravinder D Verified Purchase

WHELEN LED PARMETHEUS PLUS PAR36 14V LAND P36P1L

August 11, 2021

As advertised

Charles W Verified Purchase

WHELEN LED PARMETHEUS PLUS PAR36 14V LAND P36P1L

June 22, 2021

This landing light does a great job. I like the idea of leaving it on especially during approach and departure at uncontrolled airports.

David D Verified Purchase

WHELEN LED PARMETHEUS PLUS PAR36 14V LAND P36P1L

May 28, 2021

Great product

Dick
March 29, 2021

Easy to install as a replacement of the old incandescent light, very pleased with the result!

Mark K
March 26, 2021

Easy replacement for the incandescent original in my S35 Bonanza.

Ulysses C
March 1, 2021

Nice and bright. Since changing lights is on the list of elementary work, I was able to install the Parmetheus Plus Led myself. I did just the left side and left the halogen in the right side so that I could see the difference - and there was. The Parmetheus is whiter and brighter than the halogen.

Ron H
February 10, 2021

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Can you confirm that this is Whelen P/N P36P1L?

Part number 11-08294 is Whelen Part number PLED1L. Part number 11-12976 is Whelen Part number P36P1L.

Q: So, if the Parmetheus Plus is 40% brighter, then that means its 4,200 lumen?

Per Whelen: This is actually measured in candlepower. The Parmetheus Plus would have 60,000 candlepower.

Q: What is the warranty on the Whelen Parmetheus Plus landing light?

This has a 5 year warranty that will cover all manufacture electronic defects.

Q: What is the difference between the Whelen Parmetheus Plus taxi and landing version of this light?

The landing light will have a 10 degree spot light and the taxi light will have a 40 degree spreader optic.

Q: Is the Whelen Parmetheus Plus LED bulb capable of pulse mode?

This unit alone does NOT have a pulse mode option. An aftermarket pulse system would need to be installed on the aircraft to put the light into pulse mode.

Q: Does this Whelen Parmetheus Plus LED landing light have an STC, and is the stc included? Or how I can get the stc?

Whelen does have an STC, but it is not included in the box. The STC can be viewed on the Whelen web site, www.whelen.com .

Q: I see the Whelen Parmetheus LED is a direct replacement for my GE4509 landing light in my C170A. Can it be installed by the pilot/owner with only a log book entry or due to the fact there is an STC involved this would require an AMO to sign off?

This is just a replacement lamp, that the aircraft owner should be able to replace with a log book entry, but we always recommend you consult with your A&P to verify there are no other requirements.

Q: Would the Whelen Parmetheus Plus P36P1L bulb replace the GE4509? I have 1975 172m model.

Yes, the GE4509 is a 14v Par 36 bulb. This is also a 14v Par 36 bulb and will be a direct replacement.

Q: How bright is this Whelen Parmetheus Plus LED landing light?

PER THE MFG. - Replaces GE 250 watt lamps. 1500+ lumens

Q: Which terminal is positive and negative on the Whelen Parmetheus Plus LED landing light?

As viewed from the rear of the light, the terminal on the left is ground and the right terminal is positive. The polarity is also shown on the part number label affixed to the light.
