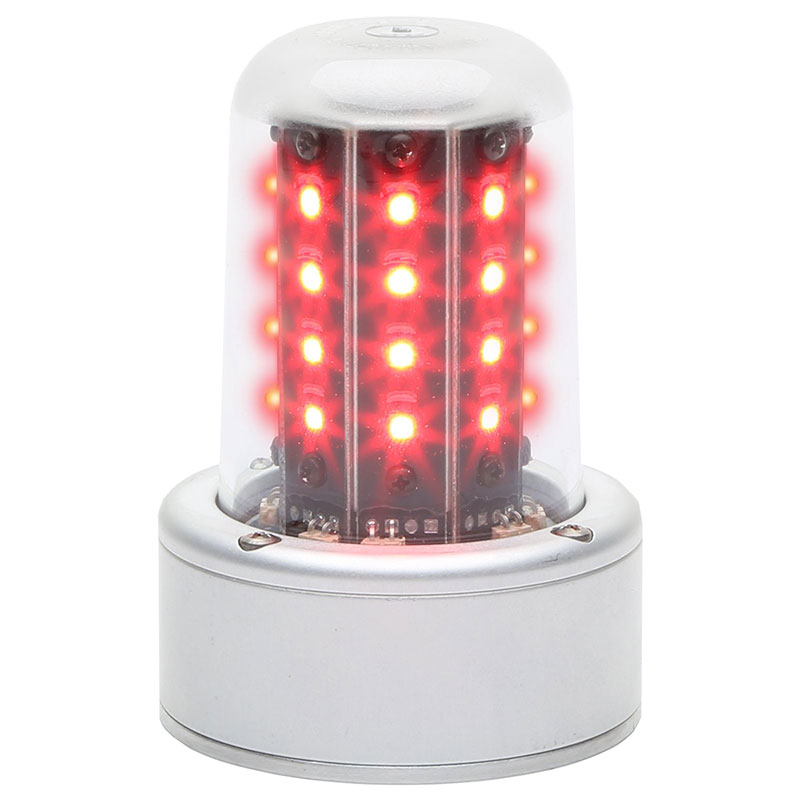

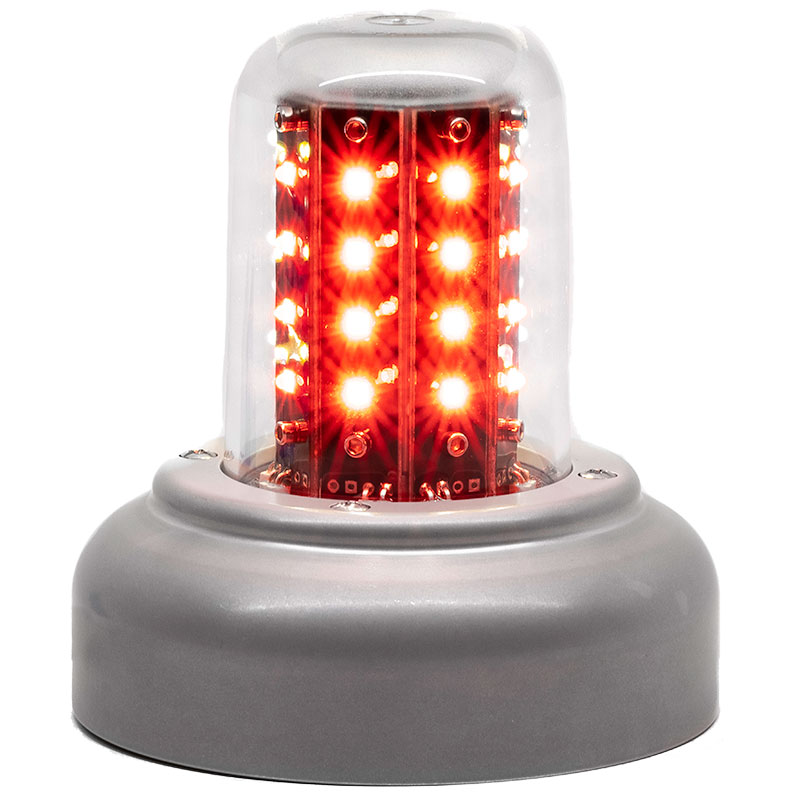

WHELEN RED LED BEACON 71080 SERIES

From $861.00 to $1015.00
Mfg Model # Description Part Number Price Buy
7108000LED Beacon Red 28V (no adapter, Robinson, MateNLock)
11-06173
$861.00
Quantity
7108001LED Beacon Red 28V (A470A mount)
11-06174
$884.00
Quantity
7108004LED Beacon Red, 28V (5HoleAdapt, FlyingLeads
11-07687
$986.00
Quantity
7108005LED Beacon Red, 28V (3.75"Adapt, FlyingLeads)
11-07689
$986.00
Quantity
7108007LED Beacon Red, 28V (3.75"Adapt, MSConn, Lower)
11-07691
$986.00
Quantity
7108008LED Beacon Red, 28V (5HoleAdapt, MSConn)
11-07693
$986.00
Quantity
7108014LED Beacon Red, 28V (5HoleAdapt, Flying Leads, Lower)
11-07688
$986.00
Quantity
7108015LED Beacon Red, 28V (3.75"Adapt, FlyingLeads, Lower)
11-07690
$1015.00
Quantity
7108017LED Beacon Red, 28V (3.75"Adapt, MSConn, Lower)
11-07692
$986.00
Quantity
7108018LED Beacon Red, 28V (5HoleAdapt, MSConn, Lower)
11-07694
$986.00
Quantity
7108051LED Beacon Red, 14V (A470A Mount, MateNLock)
11-07686
$884.00
Quantity
7108055LED Beacon Red, 14VDC, 3.75" Adapter, flying leads
11-09909
$986.00
Quantity
Subtotal $0.00
Add to Wishlist

Overview

71080 series LED beacons are FAA TSO compliant self-contained LED anti-collision lights (Ref. Class I - 150 effective candlepower). They are designed to replace a range of products. Refer to models and descriptions below.

ELECTRICAL:
Models: -01, -04, -05, -14, -15, -20, -51, -55: Ship with 12 Flying Leads Models: -07, -17, -08, -18: MS3102R10SL-3P Connector

MECHANICAL:
Models: -04, -14, -08, -18 are designed to replace existing beacons utilizing a 5-Hole mounting pattern on a 4.656 diameter bolt circle (Whelen 70285 series/7090501 series or 70900 with A440 adapter). Models: -05, -15, -07, -17 are 3 opening designed to fit inside an A440 mounting adapter, mounting holes to fit in place of rotating beacons, Whelen Model HRCFA, or 7090004, -05 series LED beacons.


California Prop 65 Warning Symbol

WARNING: This product can expose you to chemicals including Methylene Chloride, which is / are known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Specifications

  • Current: 0.87 amps average, 3.0 amps peak
  • Weight: 0.65 lbs. (295gm) (-01 & -51)
  • Lens: Clear polycarbonate
  • Dimensions: 2.6 (66mm) diameter, exposed height, 3.74 (95mm) (-01 & 51)
  • Customers Also Viewed
  • Frequently Purchased With

Reviews

The LED replacement is far superior in both quality and function over the OEM light on the plane that failed. Strongly recommend.

Jerel G Verified Purchase

WHELEN 7108055 14V ANTI-COLLISION LIGHT

October 9, 2021

Outstanding light, the brightest Ive seen.

Beaver V Verified Purchase

WHELEN 7108055 14V ANTI-COLLISION LIGHT

September 30, 2021

Works great!

John K Verified Purchase

WHELEN 7108001 28V LED RED ROT

August 11, 2021

Worked as promised easy install

Dean R Verified Purchase

WHELEN 7108055 14V ANTI-COLLISION LIGHT

July 10, 2021

I love these LED beacons. So easy to install and in stock at aircraft spruce

Victory A Verified Purchase

WHELEN 7108051 LED RED 14VDC

June 1, 2021

A great replacement for the old Grimes rotating beacon.

Alan S
April 26, 2021

Great product! Easy to install

Daniel T
August 21, 2020

Very bright, low power draw. Easy install

Barry G
March 7, 2020

Great products

Carl S
November 25, 2019

Although not quite a drop in replacement for the 206 (needing to remove the vertical cap, drill holes, and very minor wiring), it is nevertheless a very easy installation. But the best part is how much brighter it is even in daylight. The light can now be seen much further away and is more eye catching than the old oem beacon. Well worth the price - especially in busy airport environments.

Bret
October 27, 2018

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Can you verify that 7108051 is the correct choice for a 1974 Cessna 182?

Per the manufacturer: the 7108051 is the correct part for your 182 if no modifications have been made to your aircraft.

Q: Does the LED beacon require the original flasher installed in the aircraft or does it have a flasher built-in?

Powered with aircraft power, no separate power supply required.

Q: What is the difference between Part #7108014 (LED red, 28VDC & 5 hole lower mount (150 ecp)) and Part #7108018 (LED red, 28 VDC, 5 hole lower mount (150 ecp))?

The 7108014 has 12" wire attached to it for installation, and 7108018 has an MS3102R10SL-3P connector wired to the unit for installation. Order 7108018 only if you already have this MS connector on your aircraft.

Q: When I put Beacon for Piper Cherokee this is what came up, would this fit a 1966 Piper Cherokee 180?

Per Whelen, yes part # 11-09909 would work in a Piper Cherokee.

Q: On the 7108055 unit does the adapter come with the unit?

Part number 11-09909 does have a 3-3/4" adapter with the unit.

Q: According to the manufacturer I should purchase part number 01-0771080-05 for my application. Which part number should I select from your table?

Whelen part # 01-0771080-05 is our part # 11-07689.

Q: Will the 7108055 fit a 1969 Cessna 182?

Per Whelen: That model year Cessna (if it is original) has the smaller fin cap which would accommodate the part# 11-07686 product.

Q: Are all parts (including pigtail assembly) included?

It will come with a length wire and connector as shown in the Installation PDF.

Q: 1965 Cessna 150F ser. 15062556. I have the rotating beacon with mirrors and motor. Which drop in beacon will work? Thanks

Yes, these are the same.
