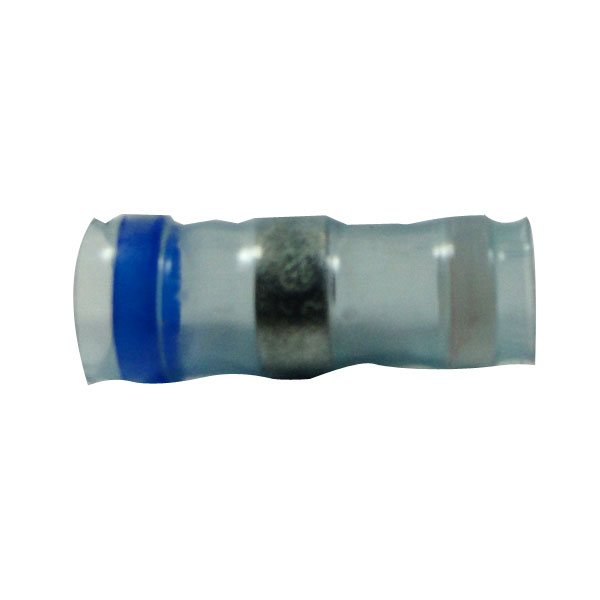

Termination sleeves consist of a heat-shrinkable, transparent, polyvinylidene fluoride sleeve with an inner, pre-fluxed, solder preform and two thermoplastic sealing inserts. When heat is applied, the solder melts and flows to provide a superior connection between the ground lead and the shield. At the same time, the two thermoplastic sealing inserts melt and the outer sleeve shrinks to provide an environmentally protected termination. Otherwise, they are essentially the same. |
Sumitomo Soldering Sleeve L-C-3 .250
Work great for splicing and give a very tight seal around the wires.
Sumitomo Soldering Sleeve L-C-2 .125
These work great for shield grounds and are much cheaper than Raychem.
Sumitomo Soldering Sleeve L-C-3 .250
Best enviro sleeve available
Sumitomo Soldering Sleeve L-C-3 .250
These are the best enviro solder sleeves
Sumitomo Soldering Sleeve L-C-5 .300
Better than my hand soldering
Sumitomo Soldering Sleeve L-C-2 .125
It is like the Raychem solder sleeves without the red indicator dye.
Sumitomo Soldering Sleeve L-C-2 .125
Great for splicing or connecting ground on shielded wire. 0.25in works for two conductor shielded. The smaller size would only fit single conductor cable.
I got em. The right part and fairly quickly
These are good sleeves but there is a gap between the .125 and .250, I wish there was something in the middle there for making more compact connections where space is restricted. The .125 is just barely big enough for 2 wire, 22 ga shielded, if you dont comb the shielding back over the insulation. They have the lowest melting point of several I tried and if you check the manufacturer datasheet you can see the solder melting point for these is the lowest of several possible solder variations.
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
For 11-07902 the .125" is the diameter of the opening. You can fit between 2 and 4 22 gauge wires inside. After placing under a heat gun the sleeve will melt to the exact size of the wire.
