Dynon Skyview Dual Band ADS-B Weather Traffic And Tfr

Select Harness:
Unit OnlyWith 4 Ft HarnessWith Custom Length Harness


Note: for use with the Dynon Skyview system only.

Dynonís dual band ADS-B receiver receives weather & traffic on both 978 MHz and 1090 MHz frequencies.

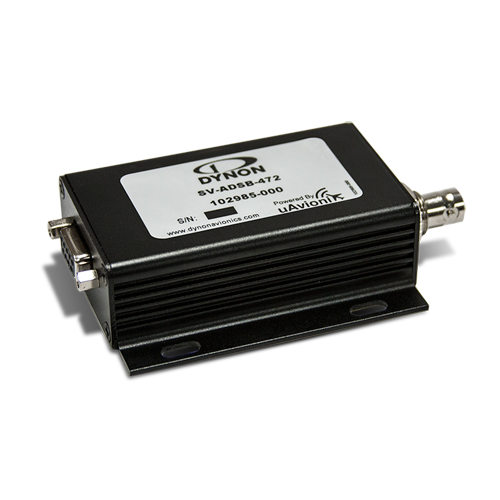

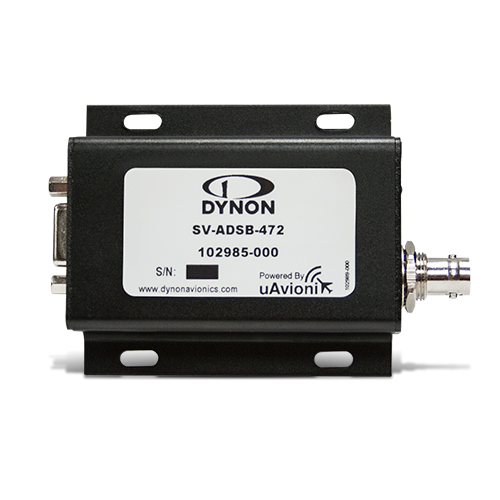

The dual band SV-ADSB-472 receives ADS-B traffic via 978 MHz (UAT) and 1090 MHz. In the US, it also receives free text and graphical weather from the FAAís network of ADS-B ground stations. Unlike portable ADS-B receivers, you get FULL ADS-B and radar traffic when you pair this with our Mode-S transponder. The remote mounted receiver utilizes an externally mounted antenna for superior ADS-B reception.

The ADS-B antenna must be installed at least two-feet from the transponder antenna.

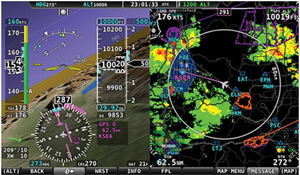

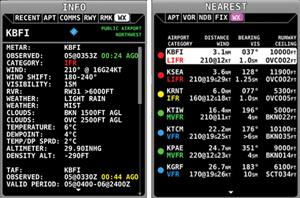

ADS-B Weather: Subscription-free weather displayed on SkyView, including NEXRAD radar, METARs and TAFS. Airport weather data can be displayed for nearest airports or for a specific airport identifier.

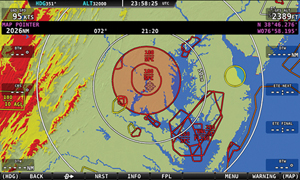

TFR Information: TFR NOTAMs are displayed graphically on the navigation map.

ADS-B Traffic: Receives ADS-B traffic targets with precise location, altitude, speed, and direction. Includes both traffic broadcast from other aircraft equipped with ADS-B UAT transmitters and data broadcast from ADS-B ground stations. For full FAA 2020 ADS-B mandate compliance, pair this receiver with Dynonís SV-XPNDR-261 and SV-GPS-2020 modules for the industryís most affordable ADS-B Out.

Antenna Information: The SV-ADSB-472 requires its own antenna; it cannot share the transponder's antenna. A UAT-specific antenna or a transponder antenna may be used with the SV-ADSB-472.

Please note any ADS-B unit will operate within the USA only when in clear line of sight of an ADS-B tower (flying at a higher altitudes may be required to gain proper signal).
For more information please visit:FAA Link

To Obtain This Feature:
You Need:
ADSB-B Traffic
SkyView System:
10-03932 or 10-03933
10-04518 or 10-04519
ADS-B Weather and TFR's
(US only in current ADS-B coverage areas)
SkyView System:
10-03932 or 10-03933
TIS Traffic
(Non-ADS-B. Available today for U.S in some primary radar coverage areas. SV-ADSB-472 replaces TIS with ADS-B traffic)
SkyView System:
10-03932 or 10-03933
10-04518 or 10-04519

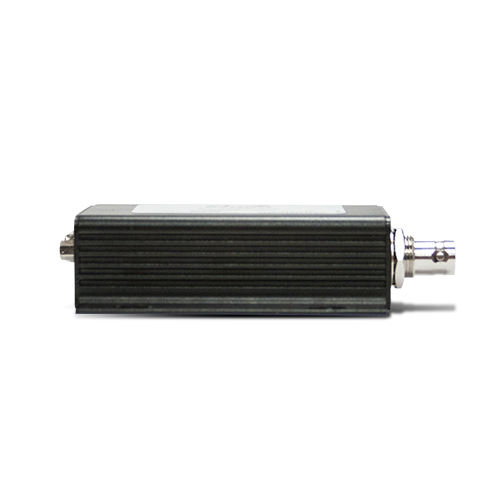

  • Dimensions: The SV-ADSB-472 is approximately 2.79" x 4.10" x .97" in outside dimensions.
  • Weight: 0.3 lb. (0.12 kg)
  • Power: 0.05A @ 12V DC

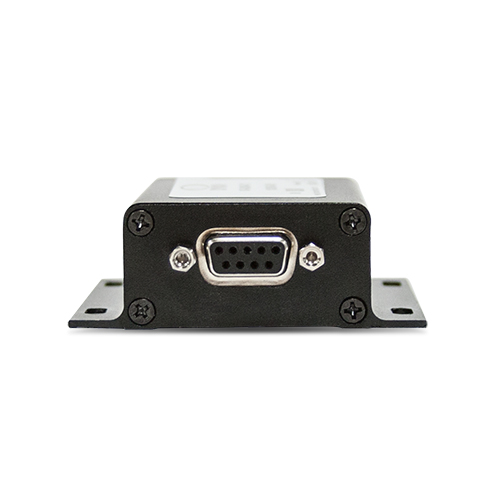

  • Part No. 11-11938 (DYNON SKYVIEW ADS-B WITH 4FT HARNESS): Comes with 4 ft leads for power, ground, and data lines.
  • Part No. 11-11939 (DYNON SKYVIEW ADS-B WITH CUSTOM HARNESS): Required questions in the shopping cart regarding lengths of various connectors.

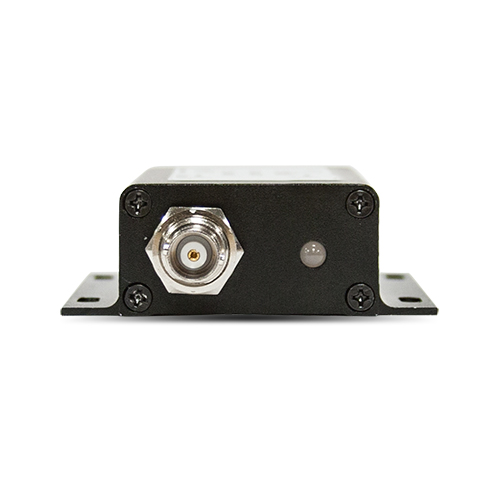

  • Note: Antenna connector is female BNC Out. Need a male BNC to connect to.
  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed


Great product, easy to install. Harness with order is made by spruce and should come with schematics vs having to email and request as it does NOT follow the Dynon colour codes.

2681210 O Verified Purchase


June 17, 2023

Dynon dual channel adsb rcvr arrived quickly and was easy to install. Now seeing much more traffic compared to the old UAT only rcvr.

Michael L Verified Purchase


April 13, 2023

Looks good

Jorge A Verified Purchase


December 17, 2022

I have not installed it yet but I have bought Dynon b3fore and have been pleased.

Paul S
January 30, 2021


Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Which antenna will work with the Dynon Skyview ADS-B unit?

Dynon recommend the AV-74 our part number 11-05846.

Q: Can SV-ADSB-472 replace SV-ADSB-470 as a direct swap? (I.e. no changes to wiring harness required?)

The SV-ADSB-472 is a drop-in replacement for the SV-ADSB-470, with identical wiring. Note that the SV-ADSB-472 is smaller, has different mounting dimensions, and the connectors are located differently than they are on the SV-ADSB-470.

Q: How do I place an order for this?

You make a selection in the dropdown box on this web page. Once you make the selection for which model you want, the Add to Cart button will appear.

Q: Can the Skyview ADS-B receiver send weather & Traffic to a Garmin 530W?

No, this is intended for use with the Dynon SkyView system only.

Q: Will this work with a GRT HXr?

No, this is intended for use with the Dynon Skyview system only.

Q: Can the SV-ADSB-472 be connected to my King KT-74 transponder to provide TIS and weather to my SkyView Displays?

No, this is meant to be connected to the Skyview system for ADS-B IN. It is separate from the KT74 and does not require to be connected to your transponder.
