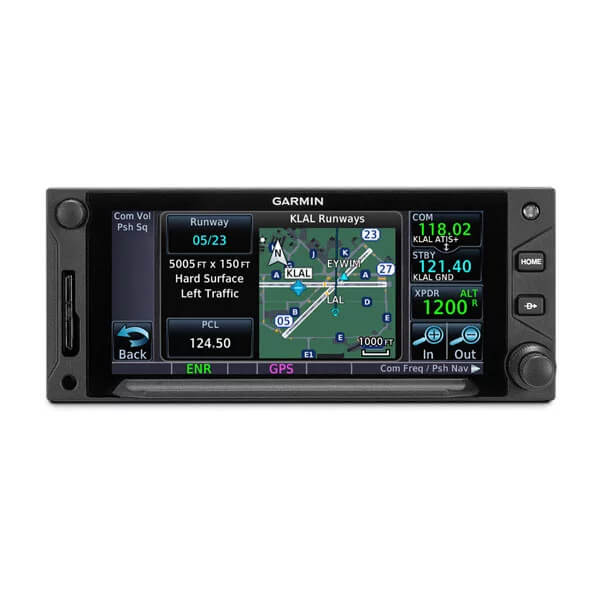

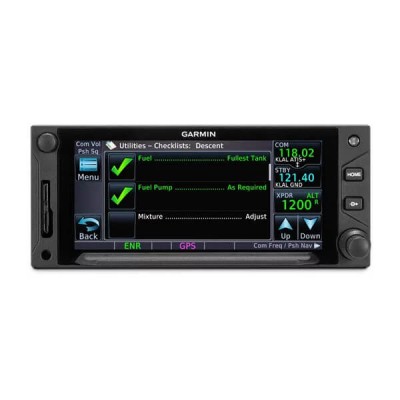

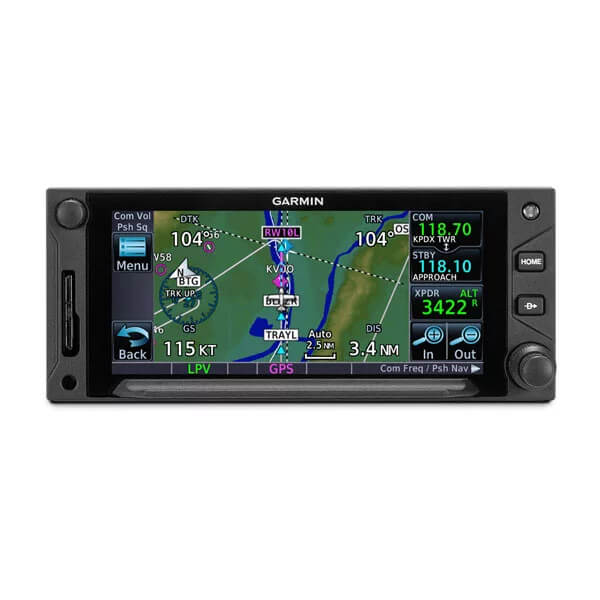

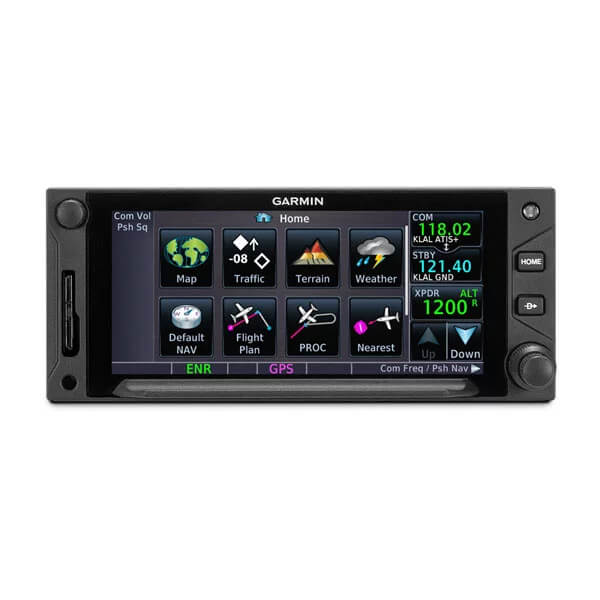

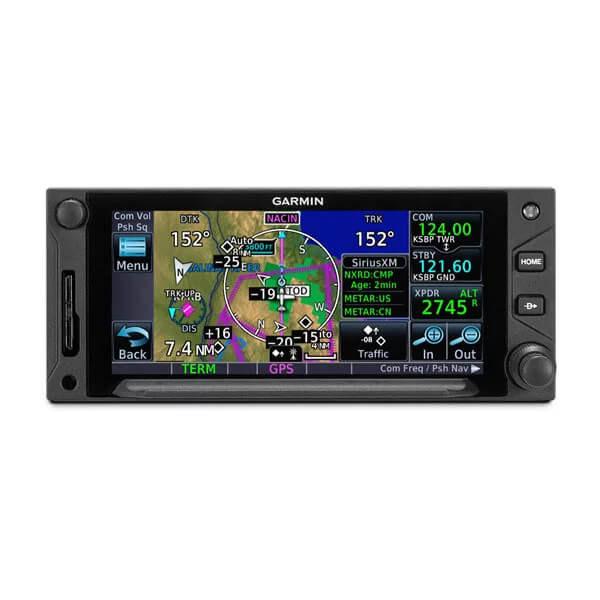

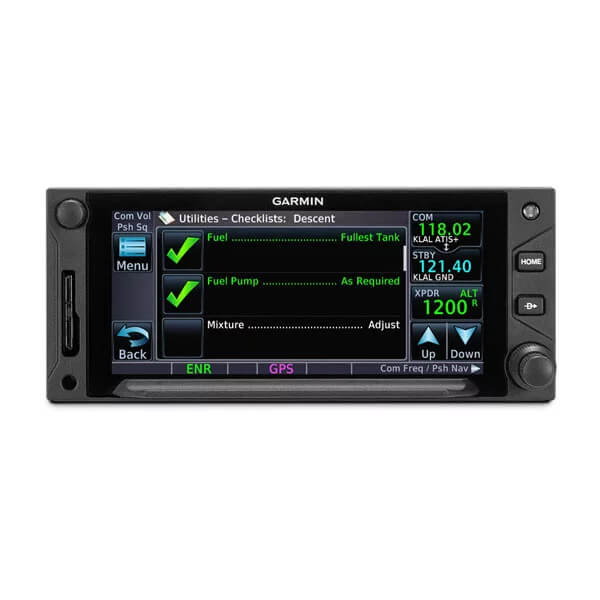

Garmin GTN 650Xi GPS / Nav / Comm System For Experimental Aircraft

Select Harness:
Unit with 4ft Wire PigtailUnit with Custom Wire Pigtail
Select Database:
AmericasInternationalSelect at Purchase
Add to Wishlist


Note: Per Garmin, even though this product is certified, we can only sell over the counter to experimental aircraft (must verify) with wire harness.

Garmin is changing the course of aviation yet again! Introducing the GTN 650XI. With more pixels, more processing power, more speed and performance, the GTN 650Xi system brings exciting new growth capabilities to the industry’s premier GPS/Nav/Comm/MFD platform.

Brighter, Faster, Sharper, Better
    Do-It-All Touchscreen
  • Intuitive touchscreen interface provides quick access to navigation, radio tuning, multifunction display features and more.
    Lightning-Fast Response
  • Powerful dual-core processors boost the GTN Xi series graphical display capabilities — with faster zooming, panning and map rendering on the display.
    High-Resolution Display
  • With almost double the pixel count of its predecessor, the GTN Xi series features wider viewing angles and one of the highest-resolution displays ever offered in this class of avionics..

Work Saving Ways to Tune and Display
    Multi-function Display
  • Supporting multiple inputs, the 4.9” display can put moving maps, terrain, traffic, weather, airport diagrams and more at your fingertips.
    Easy Data Entry
  • Use the on-screen QWERTY keyboard or traditional concentric knobs to enter frequencies, waypoint identifiers, routings and more.
    Tell It, Tune It
  • Available Telligence™ voice control technology helps reduce pilot workload by responding to hundreds of spoken commands with the press of a button on the yoke.
    Pinch, Swipe Gestures
  • A quick finger swipe lets you pan across the map display. Or use a smartphone-like pinch-to-zoom motion to scale up or down on any map, traffic or terrain page.


  • TSO applicability: C34e; 2C34f; C36e Class A; 2C36f Class A; C40c; 2C40c; C74d Class A; C112e; C128a; 2C128; C146e Class 3; C151d Class A, B; C157b Class 1, 2; 165b; C169a Class C, E, 3, 4, 5, 6; 2C169a Class C, E, H2, 3, 4, 5, 6; C194; C195b Class B1, B3, B5, B7; C209
  • Display size: 4.9" (125 mm) diagonal
  • Display resolution: 834 pixels (W) x 370 pixels (H)
  • Unit bezel height: 2.65" (67 mm)
  • Unit bezel width: 6.25" (159 mm)
  • Unit depth with connectors: 11.25" (286 mm) (measured from face of aircraft panel to rear of connector backshells)
  • Unit weight: 5.5 lbs (2.48 kg)
  • Input voltage range: 11 VDC - 33 VDC
  • Operating temperature range: -20° C to 55° C (-4° F to 131° F)
  • Number of GPS channels: 15 (12 GPS and 3 GPS/WAAS/SBAS)
  • LAT/LON position accuracy: <1.25 meter RMS horizontal, < 2 meter vertical, with WAAS
  • Maximum velocity: 1,166 knots
  • Position update Interval: 0.2 sec (5 Hz)

Compatible Interfaces

Interface Manufacturer Model Notes/Info
Air Data Computer B & D 90004-003
Honeywell (Bendix/King) KDC 281
KDC 481
Insight TAS 1000
Altitude Serializer/Encoder Garmin GTX 327
ACK Technologies A-30 (Mod 8 and above)
Electronics International FP-5L
Icarus Instruments 3000
JP Instruments EDM-700
Sandia SAE 5-35
Shadin 833811-00 (AIS-380)
91204XT(38)D (Miniflo-L)
91053XP (Digiflo-L)
91053XT-D (Digiflo-L)
912802-( ) (Digidata)
Trans-Cal Industries IA-RS232-X
Audio Panel Garmin SL10
GMA 340
GMA 347
GMA 35(c)
GMA 350(c)/350H(c)
Honeywell (Bendix/King) KMA 24
KMA 24H-70/71
KMA 26
KMA 28
PS Engineering PMA 6000
PMA 7000 Series
PMA 8000 Series
Autopilot Garmin GFC 500
GFC 600
Bendix M4C
Century I/II/III/IV
AK 1081
Cessna 300B/400B/800B
300 IFCS/400 IFCS/800 IFCS/1000 IFCS
Collins APS 65 ( )
Honeywell (Bendix/King) KAP 100/140/150
KFC 150/200/250/300
KFC 225/275/325
Sperry SPZ 200A/500
S-TEC System 20/30/40/50/55/60-1/60-2/60 PSS/65
System 55X
Datalink Weather Display and Control Garmin GDL 69/69A GDL 69A also provides SiriusXM radio entertainment.
GSR 56 GSR 56 also provides text/voice communication
DME Control Collins DME 40
DME 42
Honeywell (Bendix/King) KN62/62A
KDI 572/574
KDM 706
Narco DME 890
IDME 891
EFIS Garmin G500/G600
TXi Series
G3X Touch
Avidyne EXP5000
Honeywell (Bendix/King) EFS 40/50 (SG 465)
EHSI Sandel SN 3308
FIS-B Weather Display and Control Garmin GDL 88
Fuel/Air Data Garmin GTX 327
Electronics International FP-5L
JP Instruments EDM-700
Shadin F/ADC-200
91204XT(38)D (Miniflo-L)
91053XP (Digiflo-L)
91053XT-D (Digiflo-L)
912802-( ) (Digidata)
IRU/AHRS Collins AHS-85E
Lightning Detection Display and Control L-3 Communications WX-500
Multifunction Display Garmin GMX 200
Avidyne EX500
NAV Indicator Garmin GI 102/A
GI 106/A
Century NSD 360A
NSD 1000
Collins 331A-6P
PN101 (331A-3F/3G)
Honeywell (Bendix/King) KI 202A/203/204/206
KI 208/A
KI 209/A
KI 525A
KPI 552/B
KPI 553/A/B
Mid Continent MD222-402
Sperry RD 444
RD 550A
RD 650
S-TEC ST 180
Synchro Heading Source Bendix/King KI-525A
TAS/TCAS/TIS Traffic Display and Control Garmin GTS 800/820/850
GTX 330/33/330D/33D
Avidyne (Ryan) TAS 6XX (TCAD 9900BX)
Honeywell (Bendix/King) KMH 880 (KMH 820)
KMH 980 (KMH 920)
KTA 870 (KTA 810)
KTA 970 (KTA 910)
L-3 Communications SKY497 (Skywatch)
SKY899 (Skywatch HP)
Terrain Avoidance and Warning System Honeywell (Bendix/King) KGP 560
KMH 880 (KMH 820)
KMH 980 (KMH 920)
Transponder Display and Control Garmin GTX 32
GTX 327
GTX 328
GTX 33/33D
GTX 330/330D
GTX 325/335(R)/345(R)
Weather Radar Display and Control Garmin GWX 68
GWX 70
GWX 75
Bendix/King RDS 81 (RS 811A)
RDS 82 (RS 181A)
RDR 2000 (ART 2000)
RDR 2100 (ART 2100)
  • Frequently Purchased With
  • Customers Also Viewed



Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Can I install a GTN 650 and GNS 420W so they will work together and crosfill information. Also, do they work with the same database subscription?

In upcoming Garmin 5.02 software update it will allow the GNS 420W to crossfill to the GTN 650 (and only that direction) and yes it is a separate database subscription.

Q: Does the Garmin GTN 650 come with the installation kit and tray?

The Garmin GTN 650 does come with installation kit and tray.

Q: Can I simply just replace my GNS 430 with the GTN 650 by just pulling the GNS 430 out of the tray and sliding the GTN 650 in its place?

The GTN 650 is not a slide in replacement for the GNS 430 nor is the tray the same.

Q: Is the Garmin GTN 650 or any of its components made in China?

No, to have a TSO you must manufacture all parts in the U.S.

Q: Regarding the GARMIN GTN 650 GPS / NAV / COMM SYSTEM: What areas are covered by the Americas database vs. the International Database? If you choose the Americas, can you update to the International later?

The Americas database includes North and South America. The international version covers every continent. You can update the database at any time.

Q: Will I be able to upgrade the GPS database on the Garmin GTN 650 to International after purchase? Currently the plan is to only use the plane in the United States but if I wished to take it overseas would that be available?

Yes, per Garmin, you can update the database at any time after purchase.

Q: Does the GTN-650 include a standard glideslope receiver? Does it support a standard CDI which includes glideslope position and status? If using the GPS receiver for an LPV approach, does the GTN-650 output vertical position to a glideslope-equipped CDI?

The GTN series supports glideslope CDI indicators. Vertical indications are displayed on a compatible CDI.

Q: Will the GTN 650 and GTX 345 installed together enable my 796 Garmin portable to receive traffic and weather?

Yes via the Bluetooth on the 796 and GTX 345.

Q: Does the Garmin GTN-650 come with a Software Loader SD Card, to allow firmware updates and system configuration? If not, how is this obtained? What is the cost?

The GTN 650 includes a data card. Database information will have to be obtained from a Garmin installing dealer.

Q: Is the external cooling fan shown in the Installation Manual (Table 3-13 and Figure E-2) included with the purchase of GTN-650?

Yes, a cooling fan is included with the unit.
