Alpha Aviation STC'd Seat Belts And Shoulder Harnesses - For Beech
Overview
|
STC SA01880CH (FAA - PMA) / EASA 10071581

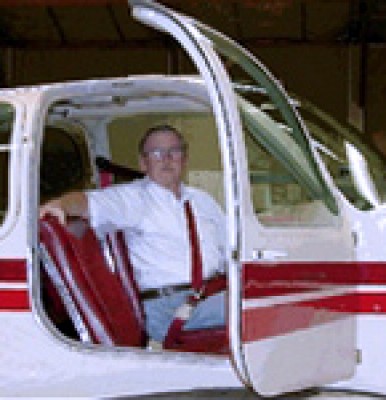

Restraints meet TSO-C114 requirements. The inertial reel cover is black but made of a material that can be painted to match your interior if so desired. This installation requires a hole through the outer skin of the aircraft at each doorpost. Please see the photos; you will see a black “dot”. This is a ½” diameter and the kit includes a paintable, water tight plug to match the exterior of your aircraft is so desired. This is the only indication of this installation that shows on the outside of the aircraft. Fixed Strap Kit: Doublers are mounted on the door post & b pillar to create the attachment points. Inertial Reel Mounted on the Door Post / B Pillar Kit: This uses the Fixed Strap installation hardware/parts, but you are installing an inertial reel rather than a fixed strap harness. Inertial Reel Kit: The reel is mounted down on the sidewall behind the seat and the harness comes up through a D ring mounted on the door post / b pillar. Window Surround Hardware Kit: for V35, A36, 58, F33, 95-B55, 35-A33 and 35-C33 aircraft with Royalite/plastic window surrounds. |
Applications
- Approved Single Engine Models: 35, 35R, A35, B35, C35, D35, E35, F35, G35, H35, J35, K35, M35, N35, P35, S35, V35, V35A, V35B, 36, A36, 35-33, 35-A33, 35-B33, 35-C33, 35-C33A, E33, E33A, E33C, F33, F33A, F33C, G33
- Approved Multi Engine Models: 95, 95-55, 95-A55, 95-B55, 95-B55A, 95-B55B, 95-C55, 95-C55A, B95, B95A, D95A, D55, D55A, E55, E55A, E95, A56TC, 58, 58A
In The Box
- 2 (two) shoulder harnesses (fixed strap/manual or inertial reel equipped)
- 2 (two) lap belts with new buckles & end fittings
- All required parts & hardware for 2 seats
- Detailed installation manual with drawings
- 8130-3 airworthiness certificate
- Certificate of conformance
- STC Authorization
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Yes, there is a 1/2" diameter hole through the door post. A plug is provided and is made of paintable plastic so it can be painted to match.
Our Shoulder Harness STC's all come with everything need to install shoulder harnesses in the front seats - pilot and co-pilot. All parts, hardware, belts, etc...
