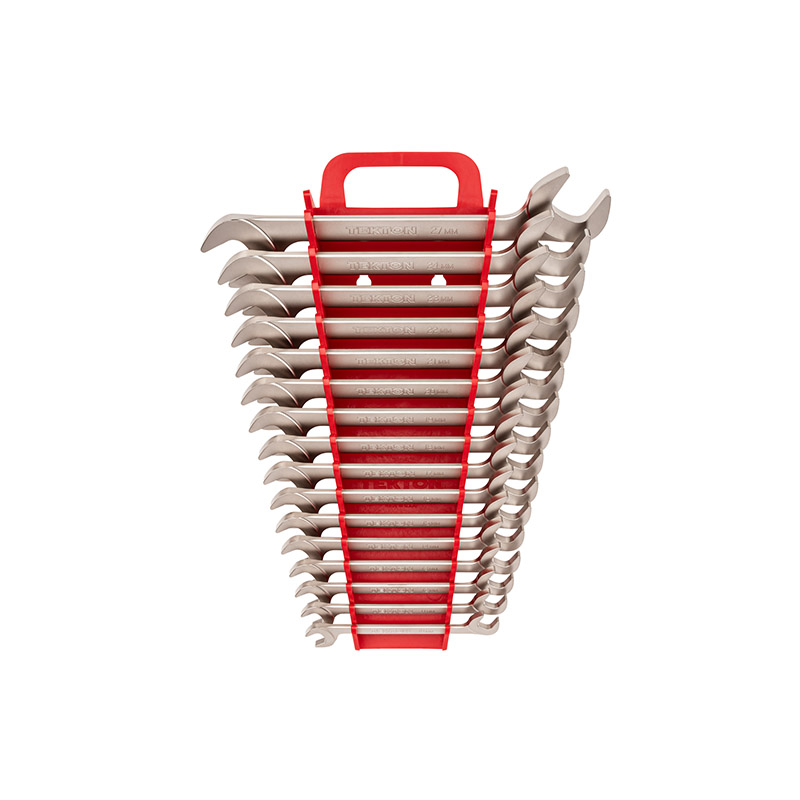

Tekton Angle Head Open End Wrench Set

0 Reviews 0 Answered Questions
Select Set:
11-Piece (3/8-1 In.) With Holder 11-Piece (3/8-1 In.) With Pouch 16-Piece (10-27 Mm) With Holder
Quantity
Add to Wishlist

Overview

Tekton Stubby Combination Wrench Set

Unmatched Access
Upgrade your capability to work around obstructions. With angled heads that allow you to progressively turn fasteners and fittings in confined spaces, Tekton's 30°/60° angle head wrenches save you time because you can continue work without disconnecting or dismantling equipment to access hard-to-reach areas.

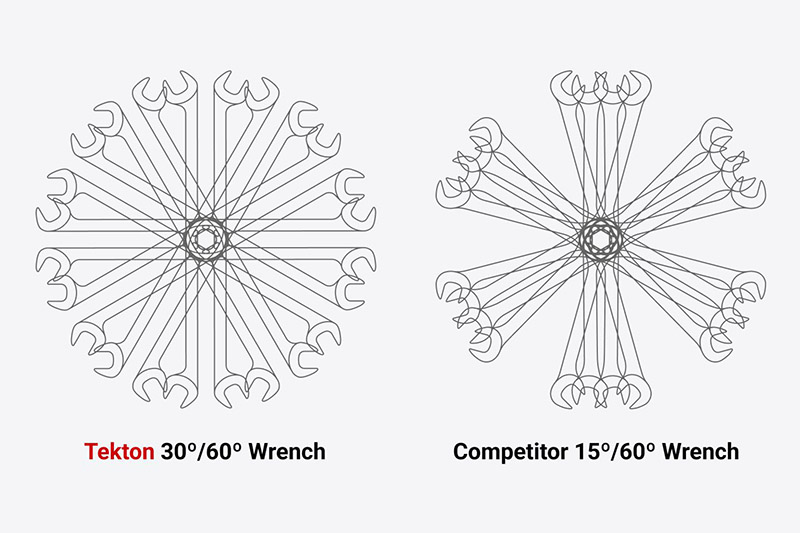

Best Combination of Angles
We paired 30 and 60 degree angled heads to achieve greater coverage with fewer blind spots in limited access situations.



Part of a System of Access Wrenches

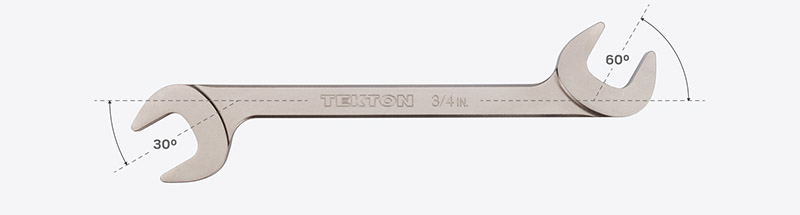

Tekton angle head wrenches have a 30-degree angled head on one side and a 60-degree angled head on the other for greater coverage with fewer blind spots. They complement our other access wrenches, including crowfoot, flare nut crowfoot, and service wrenches.

Designed to Work in Tighter Spots Than the Competition

Beam Position Improves Performance
To achieve the greatest range of motion in confined spaces, we shifted the Tekton wrench beam the maximum distance up and out of the way and reduced the radius where it meets the wrench head.



Optimized for Access and Strength

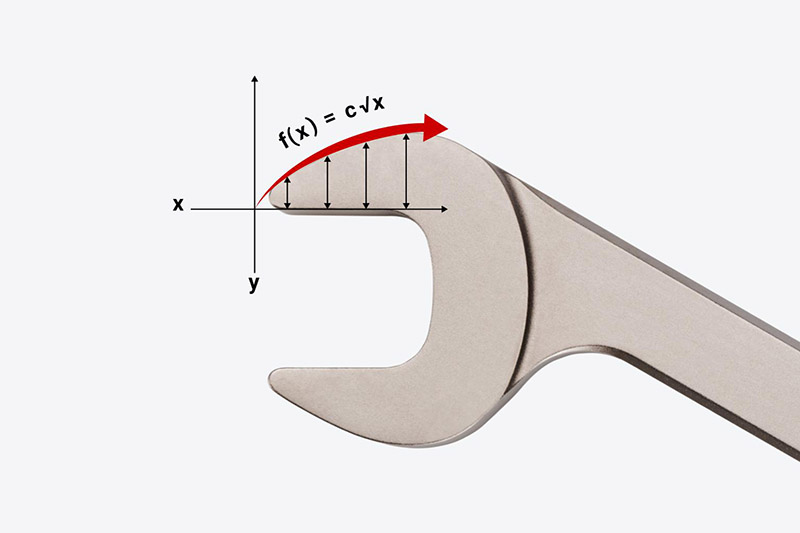

Leanest Head Shape
At each point along its horizontal length, the height of the jaw is no more and no less than needed to achieve our strength specification, thus maximizing access.

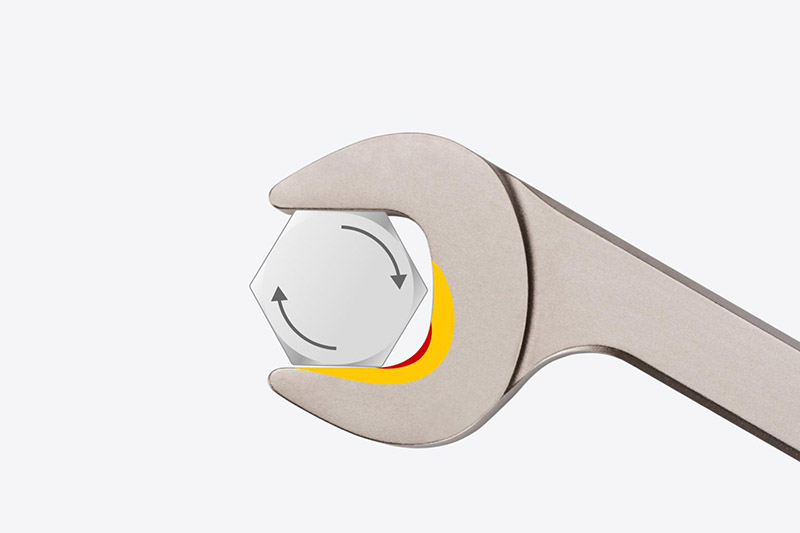

Prevents Jaw Spread
The jaw uses the largest possible inside corner radii to reduce the concentration of stress that can lead to jaw spread.



Refined Details

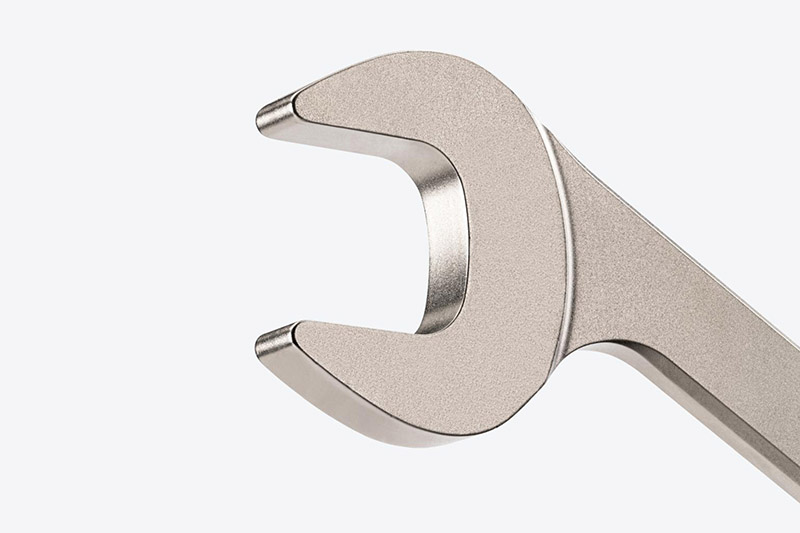

Materials and Finish
We make our angle wrenches from 4140 chromium-molybdenum steel and harden them to 50-53 HRC. The wrenches are abrasive-blasted to create a finely textured satin finish and then plated with corrosion-resistant nickel.



Clear Size Markings
The wrench sizes are laser engraved onto both sides of each angle wrench with a large, permanent marking that's easy to read.



Chamfered Handle
The edges of the wrench beam are chamfered to provide a smooth, comfortable grip for your hands.



Advanced Manufacturing Processes

Electroless Nickel Plating
The electroless nickel plating finish is easy to wipe clean and highly resistant to corrosion.

Low Environmental Impact: Electroless nickel is a low environmental impact alternative to conventional hexavalent chrome plating. It uses a chemical reaction involving nickel and phosphorus and doesn't require the use and disposal of chromium.

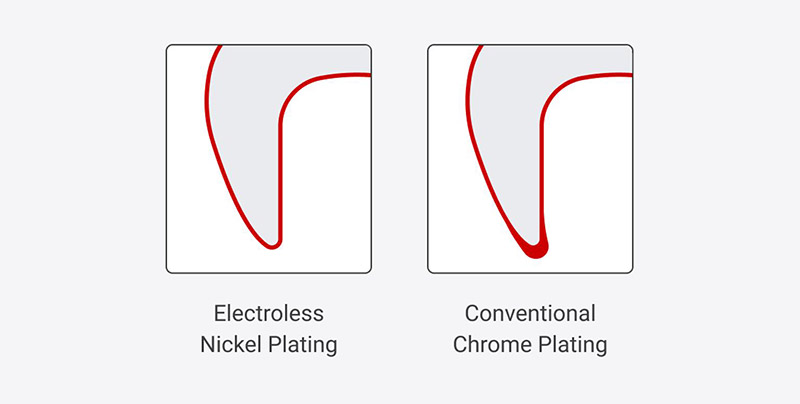

Uniform Coverage and Better Fit
The electroless process applies a uniform coating to the entire tool surface. By comparison, electroplating, including conventional chrome plating, has varying thickness across the tool because the plating thickness depends on the electric current density at each point on the tool.

The uniformity of an electroless coating has two major advantages:
  • Complete corrosion protection on interior surfaces.
  • Better fit in the wrench jaws because plating material does not accumulate at the jaw tips.


Michigan Manufacturing
Our angle wrenches are manufactured entirely in the USA with USA-made materials. Machining, engraving, vibration polishing, abrasive-blasting, and plating take place at our Grand Rapids, Michigan, manufacturing facility.

Features

  • Organization Rack:
  • - Flexible Teeth Hold Wrenches
  • - Full-Sized Carrying Handle
  • - Fits in 2.9in Drawers
  • Organization Pouch:
  • - Ideal for On-the-Go - Carry angle head wrenches anywhere with the compact roll-up pouch that keeps wrenches well-packed and unable to slide out.
  • - Durable Material - The polyurethane-backed 600 x 600 denier polyester is both abrasion and tear resistant, and has a Durable Water Repellent (DWR) coating.
  • - Easy-Access Design - The pouch design minimizes bulk from extra material so the wrenches can be quickly accessed without any fabric flaps getting in the way.
