Roger Wilco Aviation Services - Papa-Alpha PA-31 Rudder Trim Rigging Tool
From $422.00 to $484.00
- JUMP TO
- Overview
- Reference Chart
- Reviews
- Q&A
Overview
|
Papa-Alpha rigging tools are essential for ensuring that flight controls remain neutral, promoting safe and responsive handling. Proper rigging keeps control surfaces like ailerons, rudders, and elevators aligned and balanced, preventing unwanted deflections that can compromise aircraft stability.
Our tools are crafted with CAD and CNC routing of aircraft-grade aluminum, powder coated, and UV printed for reduced weight, durability, and precision. Papa Alpha PA-31 Rudder Trim Rigging Tool Specifically engineered for the Piper PA-31 series, this tool ensures precise alignment of the rudder trim tab system during rigging and maintenance. Built from CNC-machined aircraft-grade aluminum and powder coated for durability, it incorporates critical dimensions from Piper’s original drawings while adding modern refinements. Lightweight, accurate, and built to take the guesswork out of rudder trim system setup. Note: Tool design may vary slightly based on specific PA-31 model and serial number. |
Reference Chart
| Model | S/N | Rudder Trim Rigging Tool |
|---|---|---|
| PA-31-300 | 31-228 thru 31-511 | N/A |
| PA-31-310 | 31-5 thru 31-900 | N/A |
| PA-31-310 | 31-7300901 thru 31-7512072 | N/A |
| PA-31-325 | 31-7512006 thru 31-8312019, and 31-7400990 | N/A |
| PA-31-350 | 31-5001, 31-5002, 31-5003 | N/A |
| PA-31-350 | 31-7305005 thru 31-8452021 | N/A |

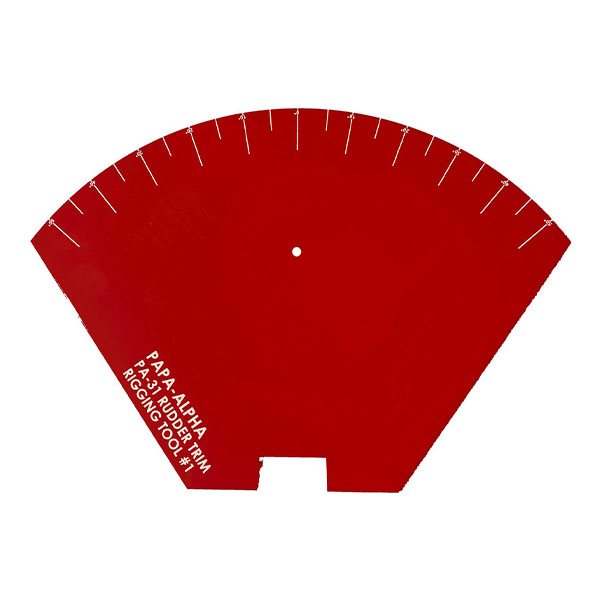

| PA-31-350 T1020 | 31-8253001 thru 31-8453021 | PA-31 Rudder Trim Rigging Tool #1 |

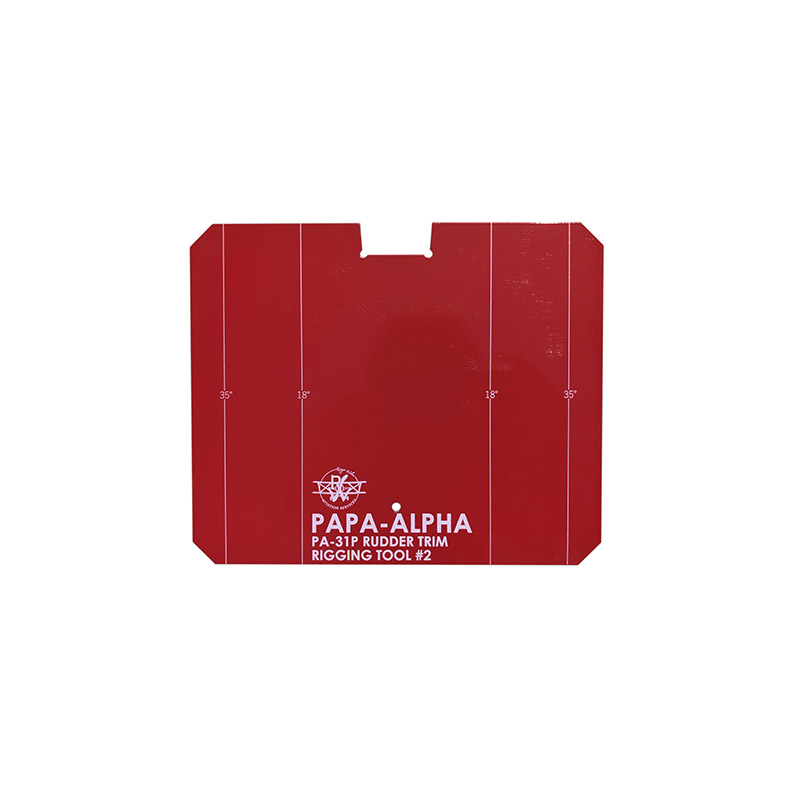

| PA-31P | 31P-3 thru 31P-80 | PA-31P Rudder Trim Rigging Tool #2 |
| PA-31P | 31P-7300110 thru 31P-7730012 | PA-31P Rudder Trim Rigging Tool #2 |
| PA-31P-350 | 31P-8414001 thru 31P-8414050 | PA-31 Rudder Trim Rigging Tool #1 |
| PA-31T | 31T-7400002 thru 31T-7720069 | PA-31 Rudder Trim Rigging Tool #1 |
| PA-31T | 31T-7820001 thru 31T-8120104 | PA-31 Rudder Trim Rigging Tool #1 |
| PA-31T1 | 31T-7804002 thru 31T-8104101 | PA-31 Rudder Trim Rigging Tool #1 |
| PA-31T1 | 31T-8304002 thru 31T-1104017 | PA-31 Rudder Trim Rigging Tool #1 |
| PA-31T2 | 31T-8166002 thru 31T-1166008 | PA-31 Rudder Trim Rigging Tool #1 |
| PA-31T3 T1040 | 31T-5575001 | PA-31 Rudder Trim Rigging Tool #1 |
| PA-31T3 T1040 | 31T-8275001 thru 31T-8275017, 31T-8275025 | PA-31 Rudder Trim Rigging Tool #1 |
| PA-31T3 T1040 | 31T-8375001 thru 31T-8375003, 31T-8375005 | PA-31 Rudder Trim Rigging Tool #1 |
| PA-31T3 T1040 | 31T-8475001 | PA-31 Rudder Trim Rigging Tool #1 |
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
