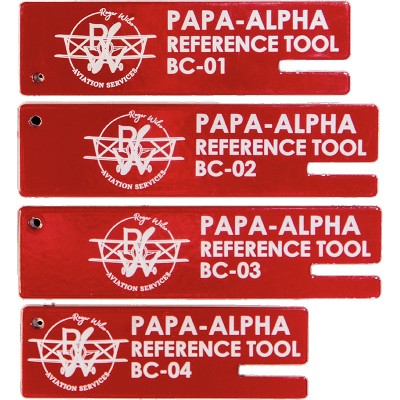

- Photo may represent series and not specific product
- SHARE
Roger Wilco Aviation Services - Papa-Alpha Bell Crank Rigging Tool
From $85.80 to $403.00
| Description | PN | Price | Buy |
|---|---|---|---|
| Roger Wilco Aviation PA23 Bellcrank Reference Tool #1 | 13-26162 | $403.00 | |
| Roger Wilco Aviation PA24/30/39 Bell Crank Reference Tool #2 | 13-26163 | $85.80 | |
| Roger Wilco Aviation PA28/32/34 Bell Crank Reference Tool #3 | 13-26164 | $85.80 | |
| Roger Wilco Aviation PA28/32 Bell Crank Reference Tool #4 | 13-26165 | $85.80 | |
| Roger Wilco Aviation PA28/32 Bell Crank Reference Tool #5 | 13-26166 | $85.80 | |
| Roger Wilco Aviation PA28/44 Bell Crank Reference Tool #6 | 13-26167 | $85.80 | |
| Roger Wilco Aviation PA28 Bell Crank Reference Tool #7 | 13-26168 | $85.80 | |
| Roger Wilco Aviation PA31 Bell Crank Reference Tool #8 | 13-26169 | $132.75 | |
| Roger Wilco Aviation PA34 Bell Crank Reference Tool #9 | 13-26170 | $85.80 | |
| Roger Wilco Aviation PA38 Bell Crank Reference Tool #10 | 13-26171 | $85.80 |
- JUMP TO
- Overview
- Reference Chart
- Reviews
- Q&A
Overview
|
Papa-Alpha rigging tools are essential for ensuring that flight controls remain neutral, promoting safe and responsive handling. Proper rigging keeps control surfaces like ailerons, rudders, and elevators aligned and balanced, preventing unwanted deflections that can compromise aircraft stability.
Our tools are crafted with CAD and CNC routing of aircraft-grade aluminum, powder coated, and UV printed for reduced weight, durability, and precision. Papa Alpha Aileron Bellcrank Rigging Tool Engineered specifically for aligning aileron bellcranks on Piper aircraft, this tool ensures accurate, repeatable rigging by locking in the correct neutral position at the bellcrank. Machined from aircraft-grade aluminum and powder coated for durability, it's a lightweight, professional-grade alternative to leaving the guesswork behind or using a 3D printed tool. Please review the aircraft applicability chart below to select the correct reference tool. |
Reference Chart
| Aircraft Model | S/N | Bellcrank |
|---|---|---|
| PA-23-160 | 23-1 thru 23-2046 | N/A |
| PA-23-235 | 27-1 thru 27-504 | PA-23 Bellcrank Reference Tool #1 |
| PA-23-250 | 27-2000 thru 27-4916 | PA-23 Bellcrank Reference Tool #1 |
| PA-23-250 | 27-7304917 thru 27-7554168 | PA-23 Bellcrank Reference Tool #1 |
| PA-23-250 | 27-7654001 thru 27-7954121 | PA-23 Bellcrank Reference Tool #1 |
| PA-23-250 | 27-8054001 thru 27-8154030 | PA-23 Bellcrank Reference Tool #1 |
| PA-23-250 | 27-505 thru 27-622 | PA-23 Bellcrank Reference Tool #1 |
| PA-24-180/PA-24-250 | 24-1 thru 24-3687 | PA-24/30/39 Bell Crank Reference Tool #2 |
| PA-24-260 | 24-4000 thru 24-5041 | PA-24/30/39 Bell Crank Reference Tool #2 |
| PA-24-400 | 26-3 thru 26-148 | PA-24/30/39 Bell Crank Reference Tool #2 |
| PA-28-140 | 28-20002 thru 28-26946 | PA-28/32/34 Bell Crank Reference Tool #3 |
| PA-28-140 | 28-7125001 thru 28-7725290 | PA-28/32/34 Bell Crank Reference Tool #3 |
| PA-28-150 | 28-1 thru 28-4377 | PA-28/32/34 Bell Crank Reference Tool #3 |
| PA-28-151 | 28-7415001 thru 28-7715314 | PA-28/44 Bell Crank Reference Tool #6 |
| PA-28-160 | 28-1 thru 28-4377 | PA-28/32/34 Bell Crank Reference Tool #3 |
| PA-28-161 | 2841001 thru 2841364 | PA-28/44 Bell Crank Reference Tool #6 |
| PA-28-161 | 2816001 thru 2816109 | PA-28/44 Bell Crank Reference Tool #6 |
| PA-28-161 | 28-7716001 thru 28-8616057 | PA-28/44 Bell Crank Reference Tool #6 |
| PA-28-161 | 2842001 thru 2842420 | PA-28/32 Bell Crank Reference Tool #4 |
| PA-28-161 | 2816110 thru 2816119 | PA-28/44 Bell Crank Reference Tool #6 |
| PA-28-180 | 28-671 thru 28-5859 | PA-28/32/34 Bell Crank Reference Tool #3 |
| PA-28-180 | 28-7110001 THRU 28-7710089 | PA-28/32/34 Bell Crank Reference Tool #3 |
| PA-28-181 | 2843001 thru 2843999 | PA-28/32 Bell Crank Reference Tool #4 |
| PA-28-181 | 2881001 and up | PA-28/32 Bell Crank Reference Tool #4 |
| PA-28-181 | 28-7690001 thru 28-8690056 | PA-28/32 Bell Crank Reference Tool #4 |
| PA-28-181 | 2890001 thru 2890205 | PA-28/32 Bell Crank Reference Tool #4 |
| PA-28-181 | 2890206 thru 2890231 | PA-28/32 Bell Crank Reference Tool #4 |
| PA-28-181 | 28020001 and up | PA-28/32 Bell Crank Reference Tool #4 |
| PA-28-201T | 287921001 thru 287921095 | PA-28/44 Bell Crank Reference Tool #6 |
| PA-28-235 | 28-10003 thru 28-11378 | PA-28/32/34 Bell Crank Reference Tool #3 |
| PA-28-235 | 28-7110001 thru 28-7710089 | PA-28/32/34 Bell Crank Reference Tool #3 |
| PA-28-236 | 2811001 thru 2811050 | PA-28/32/34 Bell Crank Reference Tool #3 |
| PA-28-236 | 28-7911002 thru 28-8611009 | PA-28/32/34 Bell Crank Reference Tool #3 |
| PA-28R-180 | 28R-30005 thru 28R-31270 | PA-28/32/34 Bell Crank Reference Tool #3 |
| PA-28R-180 | 28R-7130001 thru 28R-7130013 | PA-28/32/34 Bell Crank Reference Tool #3 |
| PA-28R-200 | 28R-35001 thru 28R-35820, and 28R-30482 | PA-28/32/34 Bell Crank Reference Tool #3 |
| PA-28R-200 | 28R-7135001 thru 28R-7635462 | PA-28/32/34 Bell Crank Reference Tool #3 |
| PA-28R-201 | 2837001 thru 2837061 | PA-28/32 Bell Crank Reference Tool #5 |
| PA-28R-201 | 28R-7737001 thru 28R-7837317 | PA-28/32 Bell Crank Reference Tool #5 |
| PA-28R-201 | 2844001 and up | PA-28/44 Bell Crank Reference Tool #6 |
| PA-28R-201 | 28R-7918002 thru 28R-8218026 | PA-28 Bell Crank Reference Tool #7 |
| PA-28R-201T | 2803001 thru 2803015 | PA-28/32 Bell Crank Reference Tool #5 |
| PA-28R-201T | 28R-7703002 thru 28R-7803372 | PA-28/32 Bell Crank Reference Tool #5 |
| PA-28RT-201T | 2831001 thru 2831038 | PA-28 Bell Crank Reference Tool #7 |
| PA-28RT-201T | 28R-7931002 thru 28R-8631004 | PA-28 Bell Crank Reference Tool #7 |
| PA-30 | 30-2 thru 30-901, less 30-853 | PA-24/30/39 Bellcrank Reference Tool #2 |
| PA-30 | 30-853 and 30-902 thru 30-1744, less 30-1717 | PA-24/30/39 Bellcrank Reference Tool #2 |
| PA-30 | 30-1717 and 30-1745 thru 30-2000 | PA-24/30/39 Bellcrank Reference Tool #2 |
| PA-31-300 | 31-228 thru 31-511 | PA-31 Bell Crank Reference Tool #8 |
| PA-31-310 | 31-5 thru 31-900 | PA-31 Bell Crank Reference Tool #8 |
| PA-31-310 | 31-7300901 thru 31-7512072 | PA-31 Bell Crank Reference Tool #8 |
| PA-31-325 | 31-7512006 thru 31-8312019, and 31-7400990 | PA-31 Bell Crank Reference Tool #8 |
| PA-31-350 | 31-5001, 31-5002, 31-5003 | PA-31 Bell Crank Reference Tool #8 |
| PA-31-350 | 31-7305005 thru 31-8452021 | PA-31 Bell Crank Reference Tool #8 |
| PA-31-350 T1020 | 31-8253001 thru 31-8453021 | PA-31 Bell Crank Reference Tool #8 |
| PA-31P | 31P-3 thru 31P-80 | PA-31 Bell Crank Reference Tool #8 |
| PA-31P | 31P-7300110 thru 31P-7730012 | PA-31 Bell Crank Reference Tool #8 |
| PA-31P-350 | 31P-8414001 thru 31P-8414050 | PA-31 Bell Crank Reference Tool #8 |
| PA-31T | 31T-7400002 thru 31T-7720069 | PA-31 Bell Crank Reference Tool #8 |
| PA-31T | 31T-7820001 thru 31T-8120104 | PA-31 Bell Crank Reference Tool #8 |
| PA-31T1 | 31T-7804002 thru 31T-8104101 | PA-31 Bell Crank Reference Tool #8 |
| PA-31T1 | 31T-8304002 thru 31T-1104017 | PA-31 Bell Crank Reference Tool #8 |
| PA-31T2 | 31T-8166002 thru 31T-1166008 | PA-31 Bell Crank Reference Tool #8 |
| PA-31T3 T1040 | 31T-5575001 | PA-31 Bell Crank Reference Tool #8 |
| PA-31T3 T1040 | 31T-8275001 thru 31T-8275017, 31T-8275025 | PA-31 Bell Crank Reference Tool #8 |
| PA-31T3 T1040 | 31T-8375001 thru 31T-8375003, 31T-8375005 | PA-31 Bell Crank Reference Tool #8 |
| PA-31T3 T1040 | 31T-8475001 | PA-31 Bell Crank Reference Tool #8 |
| PA-32-260 | 32-1 thru 32-1297 | PA-28/32/34 Bell Crank Reference Tool #3 |
| PA-32-260 | 32-7100001 thru 32-7800008 | PA-28/32/34 Bell Crank Reference Tool #3 |
| PA-32-300 | 32-40000 thru 32-40974 | PA-28/32/34 Bell Crank Reference Tool #3 |
| PA-32-300 | 32-7140001 thru 32-7940290 | PA-28/32/34 Bell Crank Reference Tool #3 |
| PA-32-301 | 3206001 thru 3206098 | PA-28/32 Bell Crank Reference Tool #4 |
| PA-32-301 | 32-8006003 thru 32-8606023 | PA-28/32 Bell Crank Reference Tool #4 |
| PA-32-301FT | 3232001 thru 3232074 | PA-28/32 Bell Crank Reference Tool #5 |
| PA-32-301XTC | 3255001 thru 3255051 | PA-28/32 Bell Crank Reference Tool #5 |
| PA-32R-300 | 32R-7680003 thru 32R-7880068 | PA-28/32/34 Bell Crank Reference Tool #3 |
| PA-32R-301 | 3213042 thru 3213103 | PA-28/32 Bell Crank Reference Tool #5 |
| PA-32R-301 | 3246001 thru 3246244 | PA-28/32 Bell Crank Reference Tool #5 |
| PA-32R-301 | 3213001 thru 3213041 | PA-28/32 Bell Crank Reference Tool #5 |
| PA-32R-301 | 32R-8013001 thru 32R-8613005 | PA-28/32 Bell Crank Reference Tool #5 |
| PA-32R-301T | 3257001 thru 3257493 | PA-28/32 Bell Crank Reference Tool #5 |
| PA-32R-301T | 3229001 thru 3229003 | PA-28/32 Bell Crank Reference Tool #5 |
| PA-32R-301T | 32R-8029001 thru 32R-8629006 | PA-28/32 Bell Crank Reference Tool #5 |
| PA-32RT-300 | 32R-7885002 thru 32R-7985106 | PA-28/32/34 Bell Crank Reference Tool #3 |
| PA-32RT-300T | 32R-7887002 thru 32R-7987126 | PA-28/32/34 Bell Crank Reference Tool #3 |
| PA-34-200 | 34-7250001 thru 34-7450220 | PA-28/32/34 Bell Crank Reference Tool #3 |
| PA-34-200T | 34-7570001 thru 34-8170092 | PA-34 Bell Crank Reference Tool #9 |
| PA-34-220T | 3433001 thru 3448035 | PA-34 Bell Crank Reference Tool #9 |
| PA-34-220T | 34-8133001 thru 34-8633014 | PA-34 Bell Crank Reference Tool #9 |
| PA-34-220T | 3447001 thru 3447029 | PA-34 Bell Crank Reference Tool #9 |
| PA-34-220T | 3448038 thru 3448079 | PA-34 Bell Crank Reference Tool #9 |
| PA-34-220T | 3449001 thru 3449514 | PA-34 Bell Crank Reference Tool #9 |
| PA-36-285 | 36-7360001 thru 36-7660135 | N/A |
| PA-36-300 | N/A | |
| PA-36-375 | 36-7802001 thru 36-8302025 | N/A |
| PA-38-112 | 38-78A0001 thru 38-82A0122 | PA-38 Bell Crank Reference Tool #10 |
| PA-39 | 39-1 thru 39-155 | PA-24/30/39 Bellcrank Reference Tool #2 |
| PA-42 | 42-7800001, 42-7800002, 43-7801003, and 42-7801004 | N/A |
| PA-42 | 42-8001001 thru 42-8001106 | N/A |
| PA-42-1000 | 42-5527001 and up | N/A |
| PA-42-720 | 42-5501003 thru 42-5501023 | N/A |
| PA-42-720 | 42-5501025 thru 42-5501027 | N/A |
| PA-42-720 | 42-5501029 thru 42-5501031 | N/A |
| PA-42-720 | 42-5501033, and 42-5501039 | N/A |
| PA-42-720 | 42-8301001 and 42-8301002 | N/A |
| PA-42-720 | 42-5501040 thru 42-5501060 | N/A |
| PA-44-180 | 44-7995001 thru 44-8195026 | PA-28/44 Bell Crank Reference Tool #6 |
| PA-44-180 | 44-8107001 thru 44-8207020 | PA-28/44 Bell Crank Reference Tool #6 |
| PA-44-180 | 44-95001 thru 4495013 | PA-28/44 Bell Crank Reference Tool #6 |
| PA-44-180 | 44-96001 thru 44-96571 | PA-28/44 Bell Crank Reference Tool #6 |
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
