Roger Wilco Aviation Services - Papa-Alpha Stabilator Rigging Tool
From $308.00 to $732.00
| Description | PN | Price | Buy |
|---|---|---|---|
| Roger Wilco Aviation PA23 Stabilator Rigging Tool #1 | 13-26172 | $331.00 | |
| Roger Wilco Aviation PA23 Stabilator Rigging Tool #2 | 13-26173 | $381.00 | |
| Roger Wilco Aviation PA24/30 Stabilator Rigging Tool #3 | 13-26174 | $308.00 | |
| Roger Wilco Aviation PA24400 Stabilator Rigging Tool #4 | 13-26175 | $328.00 | |
| Roger Wilco Aviation PA28/32/44 Stabilator Rigging Tool #5 | 13-26176 | $423.00 | |
| Roger Wilco Aviation PA30/39 Stabilator Rigging Tool #6 | 13-26177 | $309.00 | |
| Roger Wilco Aviation PA34 Stabilator Rigging Tool #7 | 13-26178 | $732.00 |
- JUMP TO
- Overview
- Reference Chart
- Reviews
- Q&A
Overview
|
Papa-Alpha rigging tools are essential for ensuring that flight controls remain neutral, promoting safe and responsive handling. Proper rigging keeps control surfaces like ailerons, rudders, and elevators aligned and balanced, preventing unwanted deflections that can compromise aircraft stability.

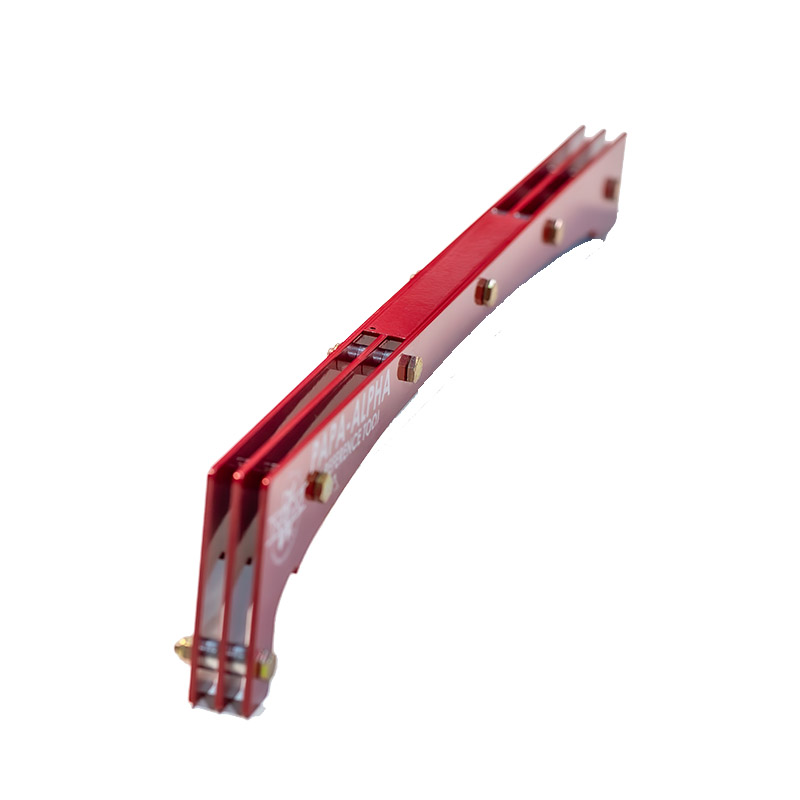

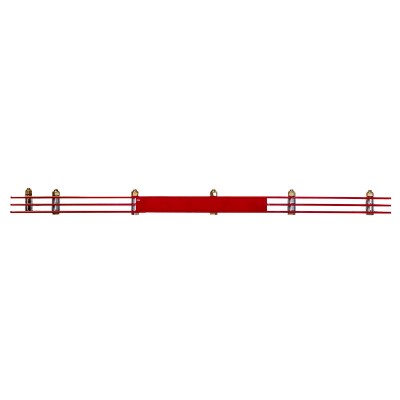

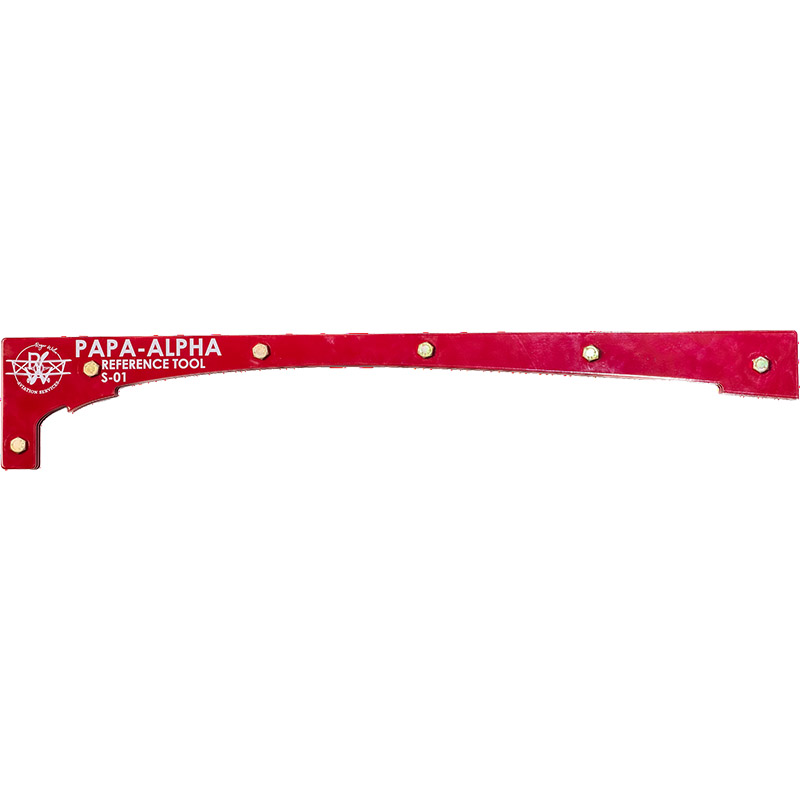

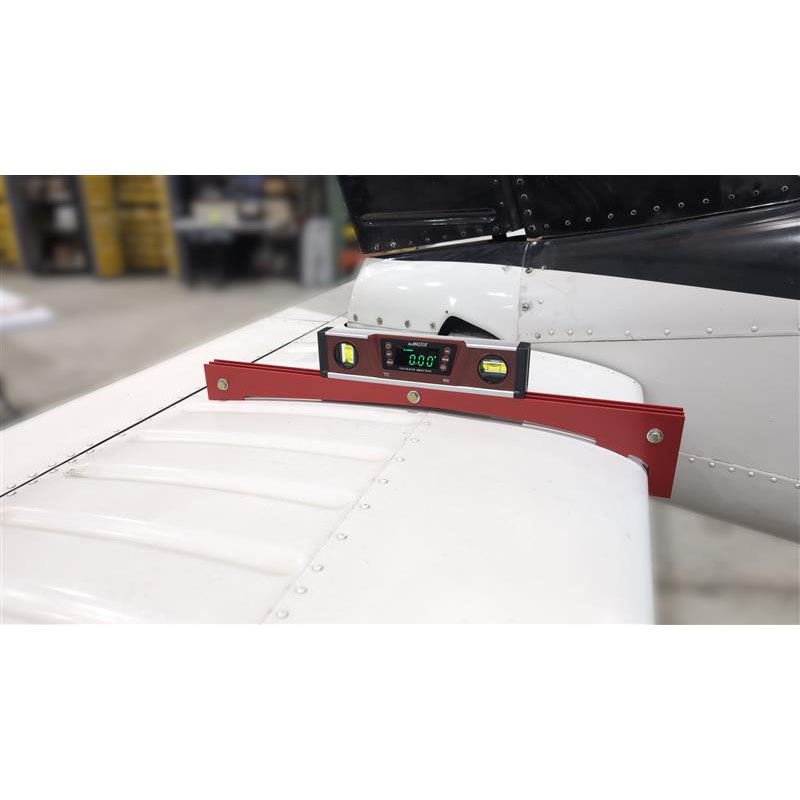

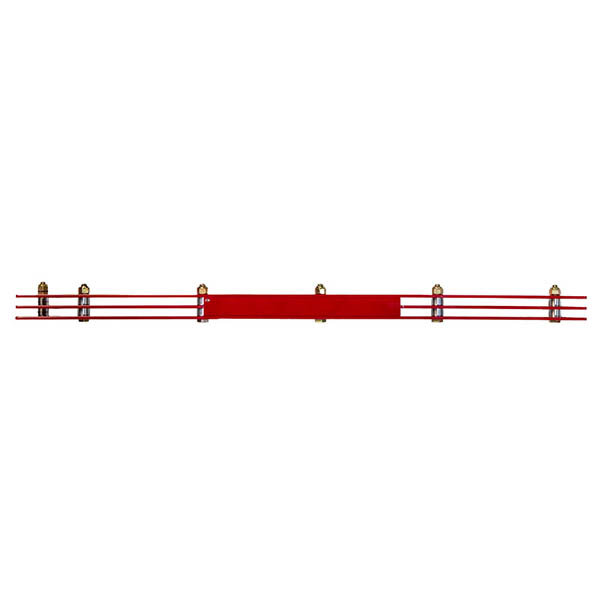

Our tools are crafted with CAD and CNC routing of aircraft-grade aluminum, powder coated, and UV printed for reduced weight, durability, and precision. Papa Alpha Stabilator Rigging Tool Crafted from original Piper factory drawings, this tool retains all the critical dimensions needed for precise stabilator rigging while incorporating modern upgrades to make it lighter, more durable, and easier to use in the field. CNC-machined from aircraft-grade aluminum and powder coated for longevity, it also features a steel plate for magnetic attachment of an electronic digital protractor. A true shop-built solution for mechanics who demand accuracy without compromise. Note: The image shown is representative—tool design may vary depending on model and serial number. |
Reference Chart
| Aircraft | S/N | Stabilator Rigging Tool |
|---|---|---|
| PA-23-160 | 23-1 thru 23-2046 | N/A |
| PA-23-235 | 27-1 thru 27-504 | PA-23 Stabilator Rigging Tool #1 |
| PA-23-250 | 27-2000 thru 27-4916 | PA-23 Stabilator Rigging Tool #1 |
| PA-23-250 | 27-7304917 thru 27-7554168 | PA-23 Stabilator Rigging Tool #1 |
| PA-23-250 | 27-7654001 thru 27-7954121 | PA-23 Stabilator Rigging Tool #2 |
| PA-23-250 | 27-8054001 thru 27-8154030 | PA-23 Stabilator Rigging Tool #1 |
| PA-23-250 | 27-505 thru 27-622 | PA-23 Stabilator Rigging Tool #1 |
| PA-24-180/PA-24-250 | 24-1 thru 24-3687 | PA-24/30 Stabilator Rigging Tool #3 |
| PA-24-260 | 24-4000 thru 24-5041 | PA-24/30 Stabilator Rigging Tool #3 |
| PA-24-400 | 26-3 thru 26-148 | PA-24-400 Stabilator Rigging Tool #4 |
| PA-28-140 | 28-20002 thru 28-26946 | PA-28/32/44 Stabilator Rigging Tool #5 |
| PA-28-140 | 28-7125001 thru 28-7725290 | PA-28/32/44 Stabilator Rigging Tool #5 |
| PA-28-150 | 28-1 thru 28-4377 | PA-28/32/44 Stabilator Rigging Tool #5 |
| PA-28-151 | 28-7415001 thru 28-7715314 | PA-28/32/44 Stabilator Rigging Tool #5 |
| PA-28-160 | 28-1 thru 28-4377 | PA-28/32/44 Stabilator Rigging Tool #5 |
| PA-28-161 | 2841001 thru 2841364 | PA-28/32/44 Stabilator Rigging Tool #5 |
| PA-28-161 | 2816001 thru 2816109 | PA-28/32/44 Stabilator Rigging Tool #5 |
| PA-28-161 | 28-7716001 thru 28-8616057 | PA-28/32/44 Stabilator Rigging Tool #5 |
| PA-28-161 | 2842001 thru 2842420 | PA-28/32/44 Stabilator Rigging Tool #5 |
| PA-28-161 | 2816110 thru 2816119 | PA-28/32/44 Stabilator Rigging Tool #5 |
| PA-28-180 | 28-671 thru 28-5859 | PA-28/32/44 Stabilator Rigging Tool #5 |
| PA-28-180 | 28-7110001 THRU 28-7710089 | PA-28/32/44 Stabilator Rigging Tool #5 |
| PA-28-181 | 2843001 thru 2843999 | PA-28/32/44 Stabilator Rigging Tool #5 |
| PA-28-181 | 2881001 and up | PA-28/32/44 Stabilator Rigging Tool #5 |
| PA-28-181 | 28-7690001 thru 28-8690056 | PA-28/32/44 Stabilator Rigging Tool #5 |
| PA-28-181 | 2890001 thru 2890205 | PA-28/32/44 Stabilator Rigging Tool #5 |
| PA-28-181 | 2890206 thru 2890231 | PA-28/32/44 Stabilator Rigging Tool #5 |
| PA-28-181 | 28020001 and up | PA-28/32/44 Stabilator Rigging Tool #5 |
| PA-28-201T | 287921001 thru 287921095 | PA-28/32/44 Stabilator Rigging Tool #5 |
| PA-28-235 | 28-10003 thru 28-11378 | PA-28/32/44 Stabilator Rigging Tool #5 |
| PA-28-235 | 28-7110001 thru 28-7710089 | PA-28/32/44 Stabilator Rigging Tool #5 |
| PA-28-236 | 2811001 thru 2811050 | PA-28/32/44 Stabilator Rigging Tool #5 |
| PA-28-236 | 28-7911002 thru 28-8611009 | PA-28/32/44 Stabilator Rigging Tool #5 |
| PA-28R-180 | 28R-30005 thru 28R-31270 | PA-28/32/44 Stabilator Rigging Tool #5 |
| PA-28R-180 | 28R-7130001 thru 28R-7130013 | PA-28/32/44 Stabilator Rigging Tool #5 |
| PA-28R-200 | 28R-35001 thru 28R-35820, and 28R-30482 | PA-28/32/44 Stabilator Rigging Tool #5 |
| PA-28R-200 | 28R-7135001 thru 28R-7635462 | PA-28/32/44 Stabilator Rigging Tool #5 |
| PA-28R-201 | 2837001 thru 2837061 | PA-28/32/44 Stabilator Rigging Tool #5 |
| PA-28R-201 | 28R-7737001 thru 28R-7837317 | PA-28/32/44 Stabilator Rigging Tool #5 |
| PA-28R-201 | 2844001 and up | PA-28/32/44 Stabilator Rigging Tool #5 |
| PA-28R-201 | 28R-7918002 thru 28R-8218026 | PA-28/32/44 Stabilator Rigging Tool #5 |
| PA-28R-201T | 2803001 thru 2803015 | PA-28/32/44 Stabilator Rigging Tool #5 |
| PA-28R-201T | 28R-7703002 thru 28R-7803372 | PA-28/32/44 Stabilator Rigging Tool #5 |
| PA-28RT-201T | 2831001 thru 2831038 | PA-28/32/44 Stabilator Rigging Tool #5 |
| PA-28RT-201T | 28R-7931002 thru 28R-8631004 | PA-28/32/44 Stabilator Rigging Tool #5 |
| PA-30 | 30-2 thru 30-901, less 30-853 | PA-24/30 Stabilator Rigging Tool #3 |
| PA-30 | 30-853 and 30-902 thru 30-1744, less 30-1717 | PA-24/30 Stabilator Rigging Tool #3 |
| PA-30 | 30-1717 and 30-1745 thru 30-2000 | PA-30/39 Stabilator Rigging Tool #6 |
| PA-31-300 | 31-228 thru 31-511 | N/A |
| PA-31-310 | 31-5 thru 31-900 | N/A |
| PA-31-310 | 31-7300901 thru 31-7512072 | N/A |
| PA-31-325 | 31-7512006 thru 31-8312019, and 31-7400990 | N/A |
| PA-31-350 | 31-5001, 31-5002, 31-5003 | N/A |
| PA-31-350 | 31-7305005 thru 31-8452021 | N/A |
| PA-31-350 T1020 | 31-8253001 thru 31-8453021 | N/A |
| PA-31P | 31P-3 thru 31P-80 | N/A |
| PA-31P | 31P-7300110 thru 31P-7730012 | N/A |
| PA-31P-350 | 31P-8414001 thru 31P-8414050 | N/A |
| PA-31T | 31T-7400002 thru 31T-7720069 | N/A |
| PA-31T | 31T-7820001 thru 31T-8120104 | N/A |
| PA-31T1 | 31T-7804002 thru 31T-8104101 | N/A |
| PA-31T1 | 31T-8304002 thru 31T-1104017 | N/A |
| PA-31T2 | 31T-8166002 thru 31T-1166008 | N/A |
| PA-31T3 T1040 | 31T-5575001 | N/A |
| PA-31T3 T1040 | 31T-8275001 thru 31T-8275017, 31T-8275025 | N/A |
| PA-31T3 T1040 | 31T-8375001 thru 31T-8375003, 31T-8375005 | N/A |
| PA-31T3 T1040 | 31T-8475001 | N/A |
| PA-32-260 | 32-1 thru 32-1297 | PA-28/32/44 Stabilator Rigging Tool #5 |
| PA-32-260 | 32-7100001 thru 32-7800008 | PA-28/32/44 Stabilator Rigging Tool #5 |
| PA-32-300 | 32-40000 thru 32-40974 | PA-28/32/44 Stabilator Rigging Tool #5 |
| PA-32-300 | 32-7140001 thru 32-7940290 | PA-28/32/44 Stabilator Rigging Tool #5 |
| PA-32-301 | 3206001 thru 3206098 | PA-28/32/44 Stabilator Rigging Tool #5 |
| PA-32-301 | 32-8006003 thru 32-8606023 | PA-28/32/44 Stabilator Rigging Tool #5 |
| PA-32-301FT | 3232001 thru 3232074 | PA-28/32/44 Stabilator Rigging Tool #5 |
| PA-32-301XTC | 3255001 thru 3255051 | PA-28/32/44 Stabilator Rigging Tool #5 |
| PA-32R-300 | 32R-7680003 thru 32R-7880068 | PA-28/32/44 Stabilator Rigging Tool #5 |
| PA-32R-301 | 3213042 thru 3213103 | PA-28/32/44 Stabilator Rigging Tool #5 |
| PA-32R-301 | 3246001 thru 3246244 | PA-28/32/44 Stabilator Rigging Tool #5 |
| PA-32R-301 | 3213001 thru 3213041 | PA-28/32/44 Stabilator Rigging Tool #5 |
| PA-32R-301 | 32R-8013001 thru 32R-8613005 | PA-28/32/44 Stabilator Rigging Tool #5 |
| PA-32R-301T | 3257001 thru 3257493 | PA-28/32/44 Stabilator Rigging Tool #5 |
| PA-32R-301T | 3229001 thru 3229003 | PA-28/32/44 Stabilator Rigging Tool #5 |
| PA-32R-301 | 32R-8029001 thru 32R-8629006 | PA-28/32/44 Stabilator Rigging Tool #5 |
| PA-32RT-300 | 32R-7885002 thru 32R-7985106 | PA-28/32/44 Stabilator Rigging Tool #5 |
| PA-32RT-300T | 32R-7887002 thru 32R-7987126 | PA-28/32/44 Stabilator Rigging Tool #5 |
| PA-34-200 | 34-7250001 thru 34-7450220 | PA-34 Stabilator Rigging Tool #7 |
| PA-34-200T | 34-7570001 thru 34-8170092 | PA-34 Stabilator Rigging Tool #7 |
| PA-34-220T | 3433001 thru 3448035 | PA-34 Stabilator Rigging Tool #7 |
| PA-34-220T | 34-8133001 thru 34-8633014 | PA-34 Stabilator Rigging Tool #7 |
| PA-34-220T | 3447001 thru 3447029 | PA-34 Stabilator Rigging Tool #7 |
| PA-34-220T | 3448038 thru 3448079 | PA-34 Stabilator Rigging Tool #7 |
| PA-34-220T | 3449001 thru 3449514 | PA-34 Stabilator Rigging Tool #7 |
| PA-36-285 | 36-7360001 thru 36-7660135 | N/A |
| PA-36-300 | N/A | |
| PA-36-375 | 36-7802001 thru 36-8302025 | N/A |
| PA-38-112 | 38-78A0001 thru 38-82A0122 | N/A |
| PA-39 | 39-1 thru 39-155 | PA-30/39 Stabilator Rigging Tool #6 |
| PA-42 | 42-7800001, 42-7800002, 43-7801003, and 42-7801004 | N/A |
| PA-42 | 42-8001001 thru 42-8001106 | N/A |
| PA-42-1000 | 42-5527001 and up | N/A |
| PA-42-720 | 42-5501003 thru 42-5501023 | N/A |
| PA-42-720 | 42-5501025 thru 42-5501027 | N/A |
| PA-42-720 | 42-5501029 thru 42-5501031 | N/A |
| PA-42-720 | 42-5501033, and 42-5501039 | N/A |
| PA-42-720 | 42-8301001 and 42-8301002 | N/A |
| PA-42-720 | 42-5501040 thru 42-5501060 | N/A |
| PA-44-180 | 44-7995001 thru 44-8195026 | PA-28/32/44 Stabilator Rigging Tool #5 |
| PA-44-180 | 4495001 thru 4495013 | PA-28/32/44 Stabilator Rigging Tool #5 |
| PA-44-180 | 4496001 thru 4496571 | PA-28/32/44 Stabilator Rigging Tool #5 |
| PA-44-180T | 44-8107001 thru 44-8207020 | PA-28/32/44 Stabilator Rigging Tool #5 |
