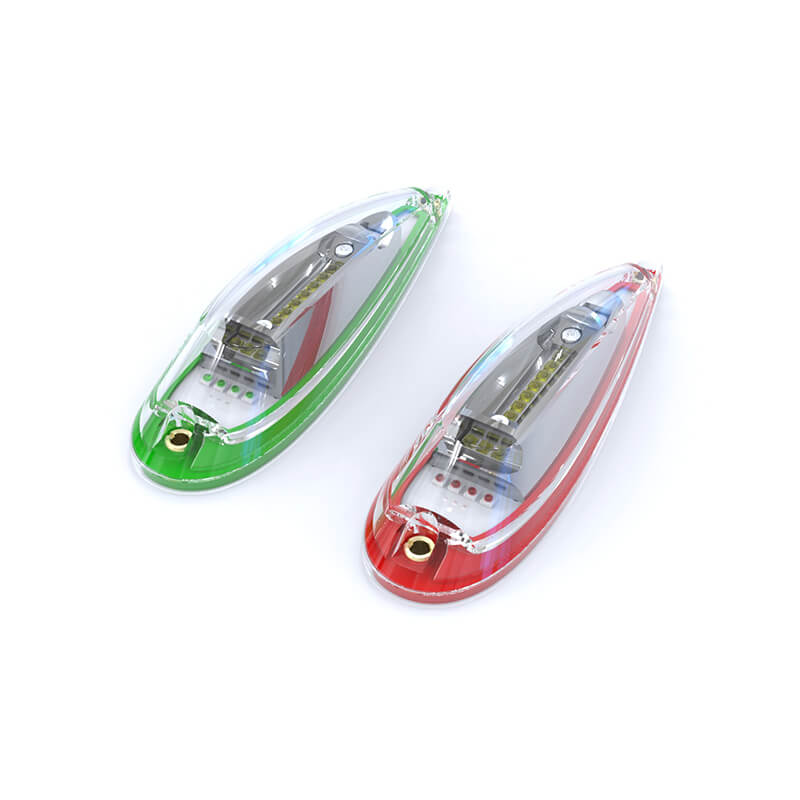

AVEO POWERBURST DAYLITE GRN-RED-WHTE W/ RED/GREEN BASE
MFR Model# AVE-WPSTG/R-2GRD
Overview
|
For Experimental Use Only. Not approved for installation on certified aircraft. This is not a TSO certified light.
At only 26 millimeters in height (1.024 inch), Aveo's DayLite Series PowerburstNG wing lights still pack a maximum of brightness into a value light that does not sacrifice anything in performance. The exclusive and highly advanced optics and chrome reflector system, unmatched power and LED management circuitry, and Aveo's famous lowest-drag profile in the industry are all combined into a product that gives you unmatched POWER and FEATURES. Lower, narrower and shorter PLUS much lighter than industry lights in this category! |
Features
- 3-in-1 Nav/Position/Strobe
- Extremely lightweight
- Unmatched circuit technology
- Waterproof
- Vibration-proof
- Shock-proof
- Dust-proof
- Limited 3yr Warranty - Product must be registered within 30 days of purchase Here
Specifications
- Dimensions (mm): 115 mm x 33 mm x 26 mm
- Dimensions (inches): 4.539“ x 1.307“ x 1.024“
- Weight: 64 g / 2.25 oz
- Operating Voltage Range: 9 – 18 V DC
- Input Current – Position / Nav - green (@14V): 0.28 A
- Input Current – Position / Nav - red (@14V): 0.23 A
- Input Current – Strobe (@14V): 2 A peak
- Output Power - Position / Nav - green: 3.3 W
- Output Power - Position / Nav - red: 2.5 W
- Output Power - Strobe: 24 W peak
- Repetition Rate of Strobe: 50 cycles per minute
- Ambient Temperature:
- from -40°C to +85°C
- from -40°F to +185°F
- Overheat Protection: Yes
- Recommended size of mounting screw: M3 / DIN 7984
- Torque requirement for screw M3 / DIN 7984: 0.5 Nm
- Reverse Polarity Protection: Yes
- Waterproof, Dust-proof, Vibration-proof: Yes
Documents
- Installation Manual (PDF)
- Green Lite PDF (PDF)
- Red Lite PDF (PDF)
Reviews
Very nice strobes. The colored bases are great for ensuring proper placement, and they look nice!
Verified Purchase
AVEO POWERBURST DAYLITE GRN-RED-WHTE W/ RED/GREEN BASE
Excellent product just as described just to damn expensive
Verified Purchase
AVEO POWERBURST DAYLITE GRN-RED-WHTE W/ RED/GREEN BASE
Verified Purchase
AVEO POWERBURST DAYLITE GRN-RED-WHTE W/ RED/GREEN BASE
These are really nice and the colored base helps avoid confusion on which side to put them on.
Verified Purchase
AVEO POWERBURST DAYLITE GRN-RED-WHTE W/ RED/GREEN BASE
very bright strobe lights. I highly recommend these!
Verified Purchase
AVEO POWERBURST DAYLITE GRN-RED-WHTE W/ RED/GREEN BASE
These are the bomb!
Verified Purchase
AVEO POWERBURST DAYLITE GRN-RED-WHTE W/ RED/GREEN BASE
Installing them now. Tested the nav portion, very bright. You are cautioned to wear sun glasses. Good idea.
Verified Purchase
AVEO POWERBURST DAYLITE GRN-RED-WHTE W/ RED/GREEN BASE
Excellent wing tip lights for brightness with strobe & nav & position. Working well on my Arion Lightning, following replacement of old system. Would recommend. Box did not include mounting screws or threaded base plate, but used long 6/32 screws & tapped anckor plate ok.
works well and is a great value.
Verified Purchase
AVEO POWERBURST DAYLITE GRN-RED-WHTE W/ RED/GREEN BASE
The Aveo Powerburst is easy to install and significantly brighter and lighter than my old Whelen strobe system. The only downside for my application was the hole pattern on the new unit did not match my old strobe installation. That was solved by fabricating a tear shaped mounting plate to go between the Aveo and old wing tip surface. This allowed me to match the old hole pattern and add nut plates to secure the new lights, thus avoiding fiberglass and sanding a new mounting surface. I suspect the average install will not need this step and mount more conveniently.
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Yes, 14V sets can be used in 12V systems as they are essentially interchangable.
Please review the Dimensional Drawing found in the "Documents" tab of this web page.
We have updated our web page to be consistent with the manufacturer's. All listings of this information now say "waterproof and vibration proof" which is consistent with manufacturer's listing.
The blue wire is an optional sync feature. The lights are closely matched at the factory but they will, over cycling, end up out of sync if the blue wires are not connected between the lights. If you don't care about syncing then there is no need to connect the blue wires.
Yes, this is within the operating range for this light set.
The tech data sheet only shows the strobe (white) flashing. The red / green lights do not flash.
Repetition Rate of Strobe: 50 cycles per minute. This would equal 0.8333 flashes per second.
The Aveo Powerburst(05-04877) is the DayLite model.
Aveo does not provide candela information. They state that the candela depends on lab resting conditions.
The nav lights have a separate power supply than the strobe. You can wire two switches to operate independently.
