Name: Aveo Powerburst NG Daylite Light Set - Green / Red / White
Brand: Aveo Engineering
SKU: 05-04877
Price: 835 CAD
Availability: OutOfStock
Rating: 4.42 (36 reviews)

1-877-795-2278 | info@aircraftspruce.ca
Aircraft Spruce Canada
Brantford, ON Canada
Corona, CA | Peachtree City, GA
Chicago, IL | Wasilla, AK

FREE SHIPPING ON ORDERS OVER $699 (SOME EXCLUSIONS APPLY) | 877-795-2278

Photo may represent series and not specific product

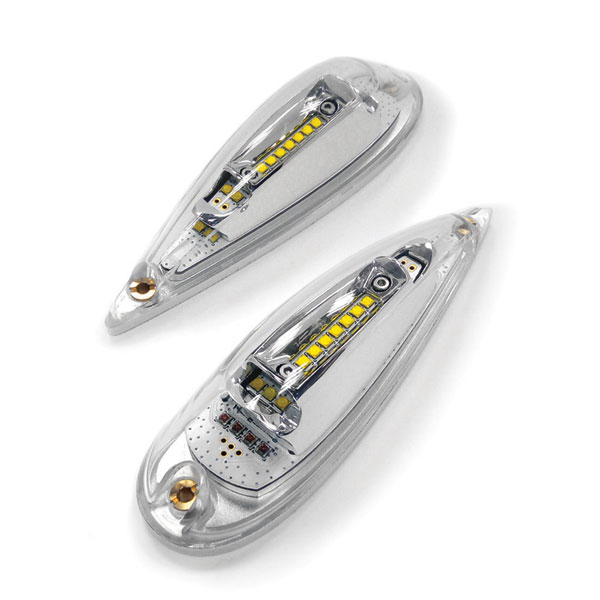

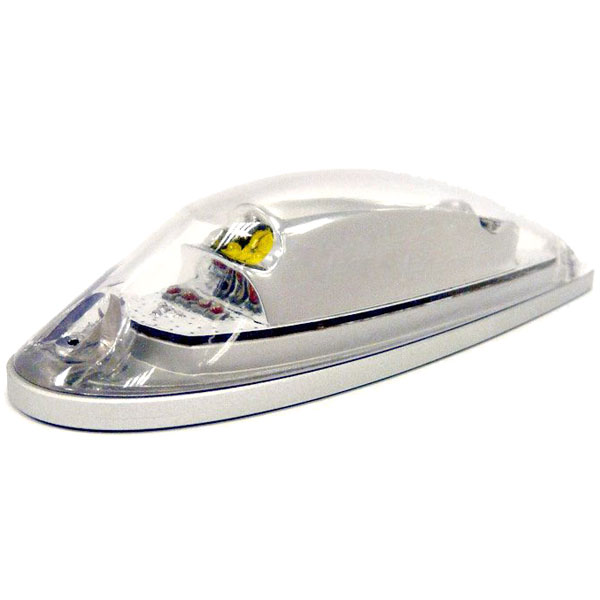

Aveo Powerburst NG Daylite Light Set - Green / Red / White

36 Reviews 26 Answered Questions

Select Base Color

Black Base / Nav

White Base / Pos

Red/Green Base / Strobe

Add to Wishlist

JUMP TO

JUMP TO
Overview
Features
Specifications
Documents
Reviews
Q&A
View in Catalog

Overview

For Experimental Use Only. Not approved for installation on certified aircraft. This is not a TSO certified light.

At only 26 millimeters in height (1.024 inch), Aveo's DayLite Series PowerburstNG wing lights still pack a maximum of brightness into a value light that does not sacrifice anything in performance.

The exclusive and highly advanced optics and chrome reflector system, unmatched power and LED management circuitry, and Aveo's famous lowest-drag profile in the industry are all combined into a product that gives you unmatched POWER and FEATURES. Lower, narrower and shorter PLUS much lighter than industry lights in this category!

Features

3-in-1 Nav/Position/Strobe
Extremely lightweight
Unmatched circuit technology
Waterproof
Vibration-proof
Shock-proof
Dust-proof
Limited 3yr Warranty - Product must be registered within 30 days of purchase Here

Specifications

Dimensions (mm): 115 mm x 33 mm x 26 mm
Dimensions (inches): 4.539“ x 1.307“ x 1.024“
Weight: 64 g / 2.25 oz
Operating Voltage Range: 9 – 18 V DC
Input Current – Position / Nav - green (@14V): 0.28 A
Input Current – Position / Nav - red (@14V): 0.23 A
Input Current – Strobe (@14V): 2 A peak
Output Power - Position / Nav - green: 3.3 W
Output Power - Position / Nav - red: 2.5 W
Output Power - Strobe: 24 W peak
Repetition Rate of Strobe: 50 cycles per minute
Ambient Temperature:
from -40°C to +85°C
from -40°F to +185°F
Overheat Protection: Yes
Recommended size of mounting screw: M3 / DIN 7984
Torque requirement for screw M3 / DIN 7984: 0.5 Nm
Reverse Polarity Protection: Yes
Waterproof, Dust-proof, Vibration-proof: Yes

Documents

Frequently Purchased With
Customers Also Viewed
Related Items

Reviews

Submit a Review

Very nice strobes. The colored bases are great for ensuring proper placement, and they look nice!

Henry K

Verified Purchase

Aveo Powerburst Daylite Grn-Red-Whte With Red/Green Base

April 24, 2024

super qualite

Stock A

Verified Purchase

Aveo Powerburst Daylite Grn-Red-Whte With White Base

April 3, 2024

Excellent product just as described just to damn expensive

Jacob G

Verified Purchase

Aveo Powerburst Daylite Grn-Red-Whte With Red/Green Base

January 2, 2024

Installed these on my RV9A. They are easy to install and very bright. Satisfied.

Allen R

Verified Purchase

Aveo Powerburst Daylite Grn-Red-White Strobe Kit

October 25, 2023

OMG are these bright!!! Easy install as well

Rich P

Verified Purchase

Aveo Powerburst Daylite Grn-Red-White Strobe Kit

October 13, 2023

Sergey N

Verified Purchase

Aveo Powerburst Daylite Grn-Red-Whte With Red/Green Base

June 2, 2023

These are really nice and the colored base helps avoid confusion on which side to put them on.

Henry K

Verified Purchase

Aveo Powerburst Daylite Grn-Red-Whte With Red/Green Base

May 5, 2023

very bright strobe lights. I highly recommend these!

Helmut R

Verified Purchase

Aveo Powerburst Daylite Grn-Red-Whte With Red/Green Base

February 16, 2023

These are the bomb!

Montana A

Verified Purchase

Aveo Powerburst Daylite Grn-Red-Whte With Red/Green Base

January 29, 2023

Installing them now. Tested the nav portion, very bright. You are cautioned to wear sun glasses. Good idea.

Joseph G

Verified Purchase

Aveo Powerburst Daylite Grn-Red-Whte With Red/Green Base

January 18, 2023

Peter B

Verified Purchase

Aveo Powerburst Daylite Grn-Red-White Strobe Kit

December 24, 2022

Have not installed them yet but I did test them . I was concerned about the brightness because they are so small but they are very bright. Much more so than the incandescent lights.

Tom A

Verified Purchase

Aveo Powerburst Daylite Grn-Red-Whte With White Base

July 3, 2022

This is my second set. The strobe stopped working on one lite with only 87 flight hours of use. Strobe was not used at all times so had considerably less time. New ones seem to be built differently. So hope for more longevity

Harold B

Verified Purchase

Aveo Powerburst Daylite Grn-Red-White Strobe Kit

February 12, 2022

love them, super easy instal

Nathan P

Verified Purchase

Aveo Powerburst Daylite Grn-Red-White Strobe Kit

February 9, 2022

Havent tried them yet but look nice and got the black base . Quality product.

Robert M

Verified Purchase

Aveo Powerburst Daylite Grn-Red-White Strobe Kit

February 3, 2022

Excellent wing tip lights for brightness with strobe & nav & position. Working well on my Arion Lightning, following replacement of old system. Would recommend. Box did not include mounting screws or threaded base plate, but used long 6/32 screws & tapped anckor plate ok.

David

November 24, 2021

works well and is a great value.

Thomas F

Verified Purchase

Aveo Powerburst Daylite Grn-Red-Whte With Red/Green Base

October 12, 2021

The Aveo Powerburst is easy to install and significantly brighter and lighter than my old Whelen strobe system. The only downside for my application was the hole pattern on the new unit did not match my old strobe installation. That was solved by fabricating a tear shaped mounting plate to go between the Aveo and old wing tip surface. This allowed me to match the old hole pattern and add nut plates to secure the new lights, thus avoiding fiberglass and sanding a new mounting surface. I suspect the average install will not need this step and mount more conveniently.

F. M

December 8, 2020

Aveo=great customer service

Donald D

September 24, 2020

Very easy installation. Had to make a mounting plate for my Cozy. Much brighter navigation lights than old Whelan system.

Patrick

August 10, 2020

Nice unit, very bright strobe!

David L

July 6, 2020

Not installed yet but are very bright. They’re going work great on my RANS S-19

John M

August 9, 2019

Put them on an RV7. Theyre Gucci, would recommend

Kevin

May 13, 2018

Great lights for the price. I had one strobe fail after four years but AVEO replaced it for free. Mine haven't yellowed as someone mentioned but the plane is hangered.

Murray M

September 5, 2015

First set of lights I've purchased for my airplane. Easy to install. Work great. Lightweight. Very low power consumption ...I haven't seen them from the outside while flying but all reports are they're bright, easy to see, etc. ...lighting up reflectors 500+ feet away - didn't expect that from a nav light.

Rv4flyer

April 7, 2015

Absolutely fantastic and at an incredible price

Mullins

November 27, 2012

Easy to install. More brightness than orginal strobe on a C172. Only sad part, total 730 $ for lights, trading and toll to sweden.

Fredrik

November 30, 2018

Good set, but is unforgivable that they don´t provide a 3d model or at least a good drawing to make the base.

Gabriel M

January 15, 2018

price competative not sure about quality or longevity

Marty

March 24, 2015

The lights are of very good construction. The position lights are very bright. My previous lights strobes were more bight. During the day, these strobes do not light as the Whellen Microburst for example that I had on another plane. The colors are brighter, but, not the strobes.

Jose L

Verified Purchase

Aveo Powerburst Daylite Grn-Red-Whte With Red/Green Base

October 29, 2024

Had these for about 2 1/2 years and the left strobe went out. Cannot get a warrantee because we did not send in the warrantee card within 30 days of purchase. Buyer beware. Send in that Warrantee card.

Bruce R

May 30, 2024

I purchased these and one lights brass insert was broken. I registered the product with aveo however have not heard back from Aveo. I mounted the light without the brass hole insert anyways however its not right and wont last without the insert. The quality of the illumnation shape size and ease of install is exactly what I wanted. Aveos lack of response to my inquiry is less than professional its non existant.

Bill

January 13, 2021

Good set of lights for the price but they start turning yellow after a few months. Was informed by AVEO that they must be polished and waxed about every 90 days to keep them clear. Mine are no longer clear so all I can do is stop them from getting any darker.

February 2, 2015

They are bright and compact. They have yellowed and I can not get them clear again. One of my ground wires came off because the solder joint was bad. I had to take a dremel and grind the resin away in order to get a spot to ground it back. I get feed back of the strobe only when both Nav and Strobe are turned on together. “Happened before the ground wire broke” Only happens for about 30 seconds then goes away for a while. Then will come back for another 30 seconds. I would look at a different brand of lights.

Garrett

January 3, 2023

I had to send my left wing tip light back because the strobe failed. The company representative in Florida has told me on more than 4 occasions that he would call me back so that I could purchase the updated Powerburst wingtip lights. To date I have not heard from him. Each time I am able to speak with the representative I am told that he is 15 to 20 minutes from the office and he will call me so that I can purchase the lights. Radio Silence. If this is their idea of customer service IT SUCKS!!!!!!!

Tony

May 25, 2018

The lighting functions well, but they are NOT indestructible as the Aveo propaganda suggests. After only 3 years, the acrylic housing has started to delaminate.

Don

September 5, 2016

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: The Aveo Powerburst is listed for 14V applications. Will this work in a 12V system? Regarding 05-04877

Yes, 14V sets can be used in 12V systems as they are essentially interchangable.

Q: What are the dimensions of 05-04877? Thank you.

Please review the Dimensional Drawing found in the "Documents" tab of this web page.

Q: This site on one page says it is water proof and vibration proof. On another page it says water and vibration resistant. Which is it water / vibration proof or water / vibration resistant?

We have updated our web page to be consistent with the manufacturer's. All listings of this information now say "waterproof and vibration proof" which is consistent with manufacturer's listing.

Q: If the sync wire is omitted from the installation, does the Aveo Powerburst light system still function normally, except, that is, with the left and right strobes out of sync?

The blue wire is an optional sync feature. The lights are closely matched at the factory but they will, over cycling, end up out of sync if the blue wires are not connected between the lights. If you don't care about syncing then there is no need to connect the blue wires.

Q: I have a 12V system but when the engine is running my gage is showing 14.6V. Is that within the acceptable range?

Yes, this is within the operating range for this light set.

Q: Regarding Part # 05-04877 (AVEO POWERBURST GREEN-RED-WHITE): Do the position lights (Red/Green) flash or just stay constant on?

The tech data sheet only shows the strobe (white) flashing. The red / green lights do not flash.

Q: What is the repetition rate of this strobe? How many flashes per second?

Repetition Rate of Strobe: 50 cycles per minute. This would equal 0.8333 flashes per second.

Q: Aveo shows this as the PowerBurst Plus. Are you selling the newer model or the older (non-Plus) model?

The Aveo Powerburst(05-04877) is the DayLite model.

Q: How many candela is the nav light and how many candela is the strobe?

Aveo does not provide candela information. They state that the candela depends on lab resting conditions.

Q: Can the strobes be tuned off separately from the red and green nav lights? So they are not constantly on when the nav lights are on.

The nav lights have a separate power supply than the strobe. You can wire two switches to operate independently.
