SCOTT MODEL 3200 TAILWHEEL PARTS

From $0.06 to $623.00

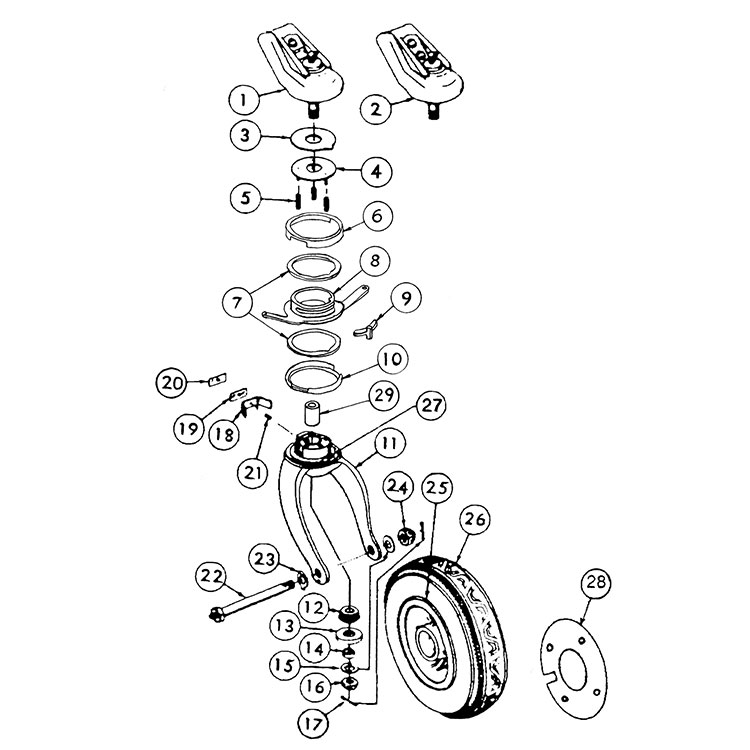

Item No. Description No Reqd Part No. Price Buy
2Bracket Assembly ABI-8006131
06-01291
$623.00
Quantity
3Washer, Thrust1
3207
$9.50
Quantity
4Thrust Plate Assy1
3234
$58.75
Quantity
5Spring, Compression5
3233
$6.50
Quantity
6Dust Cap1
3235-2
$47.50
Quantity
7Washer, Thrust2
3206
$23.95
Quantity
8Arm Assembly1
3214
$406.00
Quantity
9Pawl1
3219
$52.75
Quantity
10Dust Cap1
3235-1
$50.50
Quantity
11Fork Assembly, ABI-3244K1
06-00736
$561.00
Quantity
12Cone Bearing1
13286
$90.80
Quantity
13Retainer, Grease1
1863
$14.90
Quantity
14Spacer1
2504-1
$28.50
Quantity
15Washer, AN960-8162
AN960-816
$0.14
Quantity
16Nut, Shear AN320-81
AN320-8
$3.35
Quantity
17Pin, Cotter2
18482
$0.06
Quantity
18Spring1
3222
$18.50
Quantity
19Spacer1
3258
$4.99
Quantity
20Spacer1
3258-1
$4.85
Quantity
21Pin1
3257
$15.65
Quantity
22Axle Assy1
3236
$75.85
Quantity
23Washer, Lock1
3225
$12.50
Quantity
24Nut, Castle, AN310-81
AN310-8
$5.35
Quantity
25Wheel Half, ABI-3244-00
06-00745
$244.95
Quantity
27Pin, 32261
3226
$16.50
Quantity
28Gasket2
2602
$8.85
Quantity
29Bushing1
3205
$39.50
Quantity
--Adapter D306-0071
05-09044
$51.00
Quantity
Subtotal $0.00
Add to Wishlist

Overview

The Scott Model 3200 tailwheel, with 8" pneumatic tire, is designed to give years of trouble-free service. The swivel mechanism is sealed to keep out water, sand and mud. Grease fittings are provided for lubrication. Bracket fits 1-3/4" wide tailwheel leaf spring. Wt. 7-1/2 lbs. Attaching hardware not furnished.

*Two-Hole Bracket for AG Aircraft

Accessory Info

Spacer - Converts 1-3/4" 3216 (1 3/4")
bracket to 1-1/2" width

P/N 3241-1S

Spacer - Converts 1-3/4" 3216 (1 3/4")
bracket to 1-1/4" width

P/N 3243-2

  • Customers Also Viewed
  • Frequently Purchased With

Reviews

Fast shipping

William J Verified Purchase

WASHER, FLAT AN960-816

September 30, 2021

Should be made of gold.

David W Verified Purchase

TIMKEN BEARING A-4050-20629

September 23, 2021

Marc-antoine G Verified Purchase

SCOTT TYPE THRUST WASHER 3206-00

September 22, 2021

Marc-antoine G Verified Purchase

SCOTT PIN

September 22, 2021

Marc-antoine G Verified Purchase

SCOTT COTTER PIN # 18482

September 22, 2021

Marc-antoine G Verified Purchase

SCOTT THRUST PLATE ASSEMBLY 3234-00

July 14, 2021

Marc-antoine G Verified Purchase

SCOTT TYPE SPRING 3222-00

July 14, 2021

Marc-antoine G Verified Purchase

SCOTT COTTER PIN # 18482

July 14, 2021

Quality product

David C Verified Purchase

WASHER, FLAT AN960-816

July 1, 2021

This part is a MUST for proper tailwheel operation.

Robert M
August 12, 2019

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Does part 06-01291 attach to the spring with one our two holes?

Part # 06-01291 is the two hole version.

Q: What is the tire and tube for Scott 3200 tailwheel?

The Scott 3200 tailwheel uses a 280x250x4 tire, found under our part # 06-01244. The tube can be found under our part # 06-00760.

Q: Do Scott 3200 tailwheel parts interchange with Alaska Bushwheel parts?

They will fit and will work just fine but the mechanic would have to use their discretion. We cannot confirm the PMA approvals are interchangeable.

Q: What is the difference in the length of the standard axle bolt versus the wide axle bolt?

We believe you are asking about the BI-872 bolt which is for the ABI-3400-b tailwheel. This bolt is longer because the ABI-3400-b has a wider fork because it is used with the baby bushwheel tire/wheel combo.

Q: Do the 3200 wheel halves 06-00745 come with the bolts that hold them together?

No the bolts would be separate.
