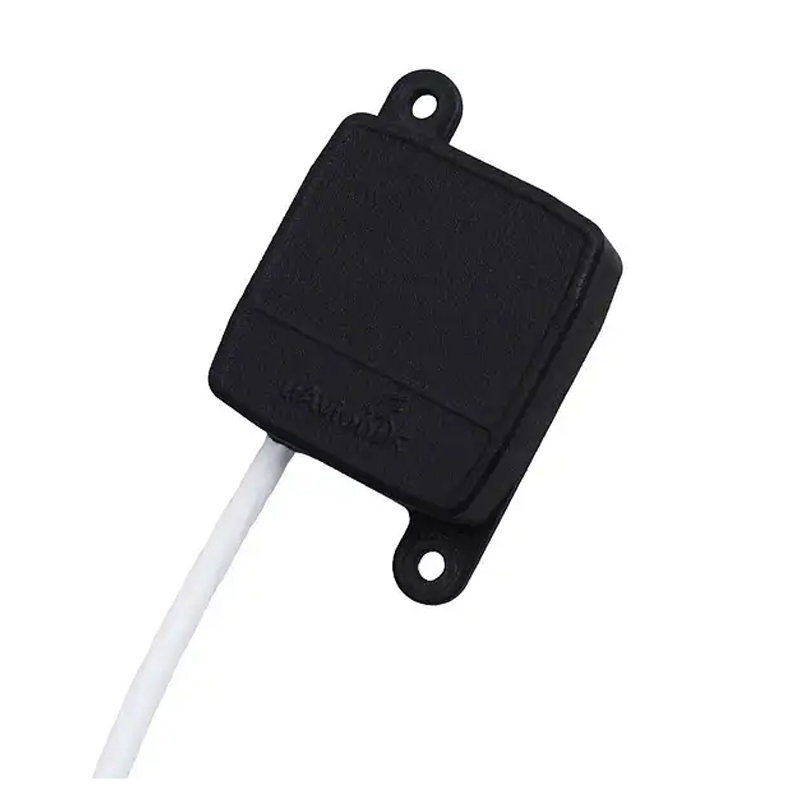

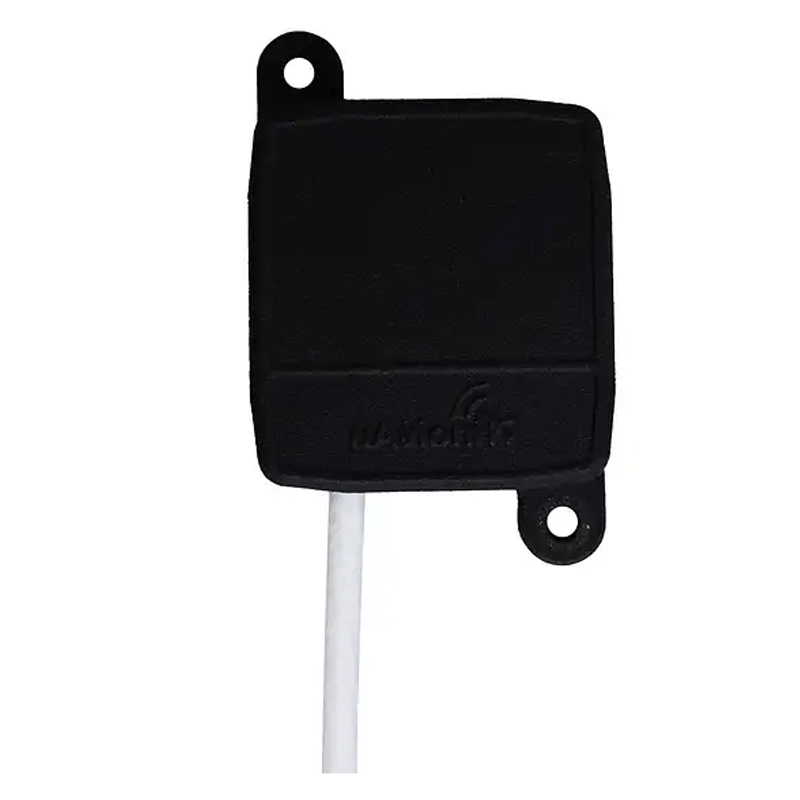

|AV-Mag external magnetometer is a 3-axis electronic compass. AV-Mag precisely measures the earth’s magnetic field and aids the AV-30 directional heading measurement, improving long-term accuracy and consistency. One AV-Mag can support multiple AV-30 displays.
Works good so far. Mounted in right wing tip of C172. Installation and calibration went smooth. I will give it five stars if it continues to perform well.
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The installation instructions are under the documents tab on the AV-30-c page.
See pages 46-58 of the of the linked Install Instructions in the Documents section for the AV-Mag install details.
Yes, the AV-MAG can support up to 5 AV-30s.
