Shielded Ignition Harnesses - For Slick Mags

From $302.00 to $417.00
Engine/Magneto Manufacturer PN PN Price Buy
Cont. 0-200 (1780), C-75 (1780), C-85 (1780), C-90 (1780)12304-31
08-17285
$316.00
Quantity
VW (M2266)12304-32
08-17286
$302.00
Quantity
Lyc 0-235 (M2363), 0-290 (M2363), 0-320, 0-360 (M2363)12304-33
08-17287
$302.00
Quantity
LYC-O-54012304-34
08-17079
$417.00
Quantity
Subtotal $0.00
Add to Wishlist

Overview

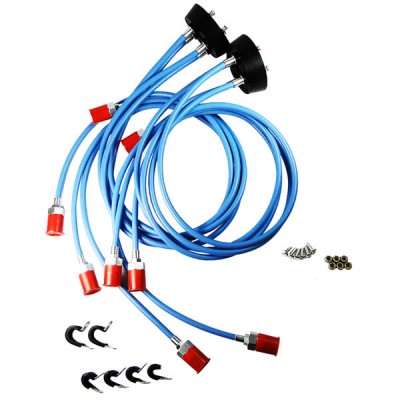

Note: 12304-32 1 Mag Cap with 4 Leads per order (see Image 1). 12304-33 and 123404-31 are sold as a set, 2 mag caps with leads. Will fit 5/8" spark plugs only.

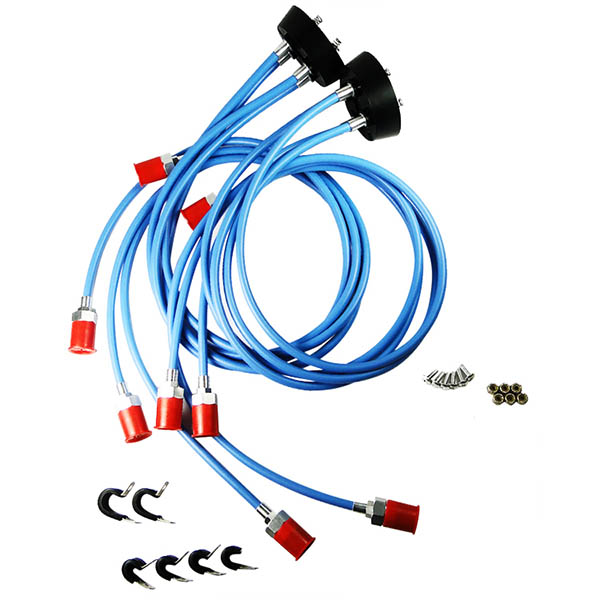

Ignition harnesses late type 5MM wire constructed of 16 strands of tightly braided copper wire impregnated with scuff resistant white silicone. All strands must fracture before a complete open circuit type failure occurs thus extending lead life. Lead flexibility is retained from -65° to 400°F. Moisture & cleaning solvent penetration is eliminated by the impregnated silicone coating.

This extremely flexible wire lends itself to sharp bends thereby eliminating the need for old style harness elbows. No soldered joints in the grounding circuit. Custom made for most 4 & 6 cylinder engines using Bendix or Eisemann magnetos and 4 cylinder engines using Slick magnetos.Cable outlet plates are not furnished for Bendix & Eisemann mags as these are already installed on the magnetos in service. They must be purchased separately for new magneto installations. Harnesses for Slick magnetos are furnished with the backplates installed. Standard harnesses for the Bendix S4/S6 mags are fitted with a male nut which screws into the threaded outlet plate on the back of the mag. Harnesses for old style Bendix SF4 and SF6 magnetos are fitted with female nuts.

ACS Products ignition harnesses can be used on experimental aircraft or on certified aircraft with field approval (FAA Form 337). If FAA/PMA harness is mandatory or if for use with 3/4" spark plugs, use Slick Bendix, Aero-Lite or Champion harnesses.

Made in USA

Eligibility

Engine/Magneto Part No.
VW (M2266) * 12304-32
Lyc 0-235   (M2363) 12304-33
0-290 (M2363) 12304-33
0-320,0-360   (M2363) 12304-33
Cont. 0-200   (1780) 12304-31
C-75 (1780) 12304-31
C-85 (1780) 12304-31
C-90 (1780) 12304-31
Lyc 0-540 12304-34
