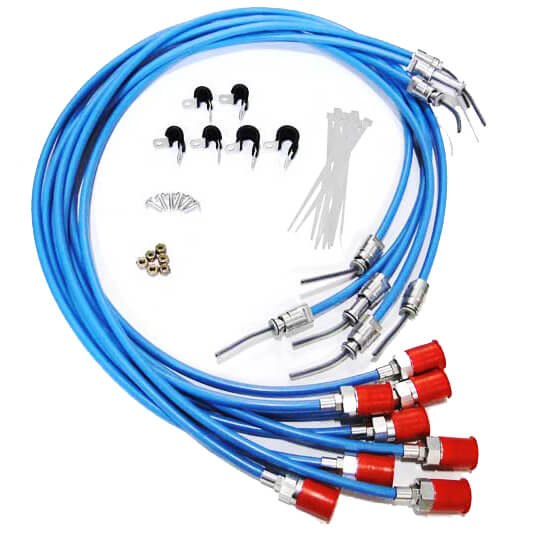

Shielded Ignition Harnesses - For EISemann Mags

From $308.00 to $418.00
Engine/Magneto Part No. Price Buy
Continental A65/LA-4, A75/LA-4
12303-04
$308.00
Quantity
Continental C-85/LA-4
12303-07
$326.00
Quantity
Continental C90/LA4
12303-08
$332.00
Quantity
Continental E-185/LA6
12306-12
$418.00
Quantity
Franklin 150/LA6
12306-40
$393.00
Quantity
Subtotal $0.00
Add to Wishlist

Overview

New production ignition harnesses at remarkably low prices. Late type 5MM wire constructed of 16 strands of tightly braided copper wire impregnated with scuff resistant white silicone. All strands must fracture before a complete open circuit type failure occurs thus extending lead life. Lead flexibility is retained from -65° to 400°F. Moisture & cleaning solvent penetration is eliminated by the impregnated silicone coating.

This extremely flexible wire lends itself to sharp bends thereby eliminating the need for old style harness elbows. No soldered joints in the grounding circuit. Custom made for most 4 & 6 cylinder engines using Bendix or Eisemann magnetos and 4 cylinder engines using Slick magnetos.Cable outlet plates are not furnished for Bendix & Eisemann mags as these are already installed on the magnetos in service. They must be purchased separately for new magneto installations. Harnesses for Slick magnetos are furnished with the backplates installed. Standard harnesses for the Bendix S4/S6 mags are fitted with a male nut which screws into the threaded outlet plate on the back of the mag. Harnesses for old style Bendix SF4 and SF6 magnetos are fitted with female nuts.

ACS Products ignition harnesses can be used on experimental aircraft or on certified aircraft with field approval (FAA Form 337). If FAA/PMA harness is mandatory or if for use with 3/4" spark plugs, use Slick Bendix, Aero-Lite or Champion harnesses.

Made in USA

Eligibility

Engine/Magneto Part No.
Cont A65/LA-4 12303-04
A75/LA-4 12303-04
C-85/LA-4 12303-07
E-185/LA-6 12306-12
Franklin   150/LA-6 12306-40
Continental   C90/LA4 12303-08
Continental   E-185/LA6 12306-12
Franklin   150/LA6 12306-40

Replacement Leads

Replacement Leads For Bendix & Eisemann

Description Part Number Price Buy
Replacement Leads to 48" (Specify Length) (Bendix & Eisemann only) Call for pricing

All Harnesses Furnished with Cable Ties and Clamps
FOR PLUGS WITH 5/8-24 BARREL SIZE ONLY
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Product, ignition wire set for Iceman Magnetos, the items are perfect and the delivery was longer than expected. However, I was delighted with a product.

Fritz J Verified Purchase

SHIELDED IGNITION HARNESS 12303-07

September 14, 2023

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What color are the leads for the 12303-04 ignition harness?

They are blue.

Q: RE PN 12303-04 Is th set for both magnetos? Do the leads come with the nuts for attachment to the magneto outlet plate?

This harness is for both magnetos but it will not come with the outlet plates.
