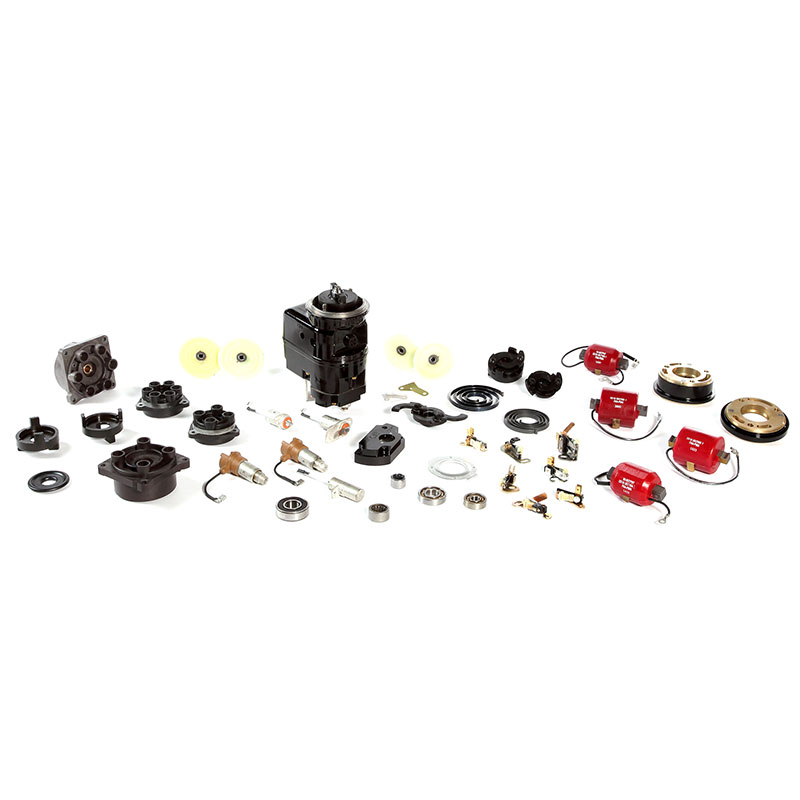

FAA-PMA REPLACEMENT PARTS FOR SLICK TYPE MAGNETOS
| Model No. | Description | Champion PN | Part No. | Price | Buy |
|---|---|---|---|---|---|
| A-13081-8 | Contact Lube | 07-01081 | $2.51 | ||
| AM-3183-1 | Nut | 07-02452 | $1.10 | ||
| AM-3183-2 | Washer | 07-02453 | $1.10 | ||
| AM3611 | Cam | 07-02456 | $1.74 | ||
| ES3307 | Pressure Gasket Kit | K3307 | 07-19939 | $109.90 | |
| ES1077 | Air Vent | M1077 | 07-19931 | $11.90 | |
| AM-2536 | Woodruff Key | M2536 | 07-02446 | $1.75 | |
| AM-2540 | Cotter Pin | M2540 | 07-02447 | $1.46 | |
| AM-3006 | Ball Bearing | M3006 | 07-02448 | $72.75 | |
| AM-3015 | Screw | M3015 | 08-15840 | $2.43 | |
| ES3018 | Bearing Cap Clamp | M3018 | 07-19932 | $3.50 | |
| ES3019 | Nut | M3019 | 07-19933 | $13.65 | |
| AM-3020 | Screw | M3020 | 08-15841 | $2.02 | |
| AM-3021 | Screw | M3021 | 07-02449 | $1.75 | |
| ES3040 | Coil Wedge | M3040 | 07-19934 | $18.90 | |
| AM-3062 | Oil Seal | M3062 | 07-01089 | $20.55 | |
| A-13081 | Contact Assy Kit* | M3081 | 07-02445 | $93.75 | |
| ES3084 | Air Vent w/ Hood | M3084 | 07-19935 | $46.50 | |
| ES3172 | Washer | M3172 | 07-19936 | $11.90 | |
| ES3179 | Vent Plug | M3179 | 07-19937 | $10.50 | |
| ES3180 | Tube Fitting | M3180 | 07-19938 | $24.99 | |
| AK-3984 | Capacitor Assy** | M3183 | 07-02451 | $209.95 | |
| AM-3215 | Brush & Spring | M3215 | 07-02454 | $18.90 | |
| ES3331 | Oil Seal | M3331 | 07-19940 | $23.55 | |
| AM-3485 | Bearing & Cap Assy | M3485 | 07-02455 | $145.75 | |
| ES3637 | Contact Point | M3637 | 07-19941 | $204.95 | |
| ES3740 | Contact Point | M3740 | 07-19942 | $321.00 | |
| ES3826 | Spacer | M3826 | 07-19943 | $5.35 | |
| ES3827 | Rotor Gear | M3827 | 07-19945 | $20.50 | |
| ES3828 | Rotor Gear | M3828 | 07-19946 | $20.50 | |
| AK-3975 | Coil | K3975 | 07-02444 | $524.00 | |
| ES917 | Impulse Spring | M917 | 07-19944 | $44.70 | |
| ES3822 | Distributor Block Assy. - 4 Cylinder | K3822 | 08-16227 | $506.00 | |
| ES510406 | Gear Assy. - 4 Cylinder | K3008 | 08-16232 | $129.85 | |
| ES3007 | Impulse Coupling Assembly | M3007 | 08-17118 | $633.00 | |
| ES3007-1 | Impulse Cam Assembly | 08-17119 | $538.00 | ||
| ES3050 | Impulse Coupling Assembly | M3050 | 08-17120 | $633.00 | |
| ES3050-1 | Impulse Cam Assembly | 08-17121 | $538.00 | ||
| ES3068 | Impulse Coupling Assembly | M3068 | 08-17122 | $653.00 | |
| ES3068-1 | Impulse Cam Assembly | 08-17123 | $556.00 | ||
| ES3089 | Impulse Coupling Assembly | M3089 | 08-17124 | $609.00 | |
| ES3089-1 | Impulse Cam Assembly | 08-17125 | $518.00 | ||
| ES3100 | Impulse Coupling Assembly | M3100 | 08-17126 | $609.00 | |
| ES3100-1 | Impulse Cam Assembly | 08-17127 | $518.00 | ||
| ES3163 | Impulse Coupling Assembly | M3163 | 08-17128 | $632.00 | |
| ES3163-1 | Impulse Cam Assembly | 08-17129 | $538.00 | ||
| ES510404 | Gear Assembly | K3056 | 07-20059 | $143.85 | |
M3040 | Slick Coil Wedge | M3040 | M3040 | $25.90 |
- JUMP TO
- Overview
- Reviews
- Q&A
- View in Catalog
Overview
|
Magneto replacement parts manufactured by Kelly Aerospace are made to specifications dictated by Federal Aviation Administration parts manufacturing approvals. They are the highest quality, direct replacement parts, approved for installation and use on certified aircraft.
Note: Always refer to the parts and service manual of the original equipment manufacturer or to Aircraft Type Certificate Data Sheets or other FAA-approved data to determine eligibility of a part or component for use in any application. *Kit Includes: A13081, A13081-1, -2, & AM3611 **Kit Includes: AM3183-1, AM3183-2, & -3 |
Reviews
A big order for me. Aircraft Spruce processed the order very fast and I received it on the West coast in 4 days with UPS ground shipping.. I needed the Slick Mag Kit to start flying again, so I am very appreciative of their quick service.
What I expected!
The tab for the wire is oriented slightly different than the Slick version. But it fits fine and works well. Slick OEM parts pricing appears to be set so high that a new mag is the best option if more than one major part needs replacement. Glad to have PMA options to keep Slicks going.
Installed the points works perfectly. No issues.
The terminal for the coil lead is in a slightly different location on the Kelly points. It makes it difficult to use the e-gap tool without shorting out the points. When you short the points with the e-gap tool your timing light thinks the points are closed. Next time I will pay a bit more and use the Slick points.
Electrical spade connector is angled differently and the pivot screws have more play than OEM points
Q&A
Per the supplier: Yes, it will.
Per Kelly Aerospace, their parts are not effected by the Slick service bulletin.
