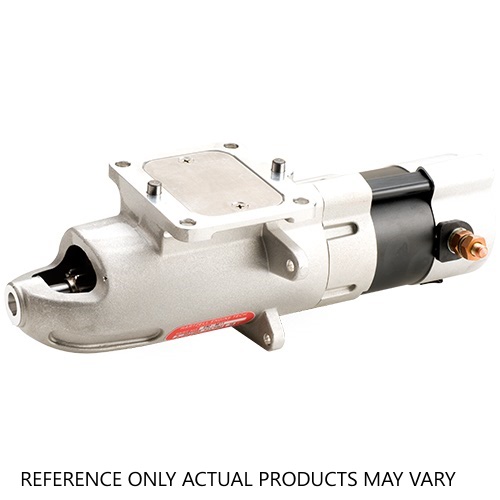

E-Drive Starters From Hartzell Engine Tech

From $2314.00 to $2635.00
Model Description Lycoming Engine Replaces PN Price Buy
ERZ-8011Clockwise rotation, 12 Volt, 149 tooth - 12/14 Pitch Gear235, 290, 320, 340, 360, 540Lycoming 31A21198, Sky-Tec 149-NL,149-12PM, LS, Lamar PM1201, PM1204, MZ-4205 thru -4207,-4217 thru -4219,-4221 thru -4226,-6222,-6224
07-01102
$2314.00
Quantity
ERZ-8012Clockwise rotation, 12 Volt, 122 tooth - 12/12 Pitch Gear235, 290, 320, 360, 540Lycoming 31A21210, Sky-Tec 122-NL,122-12PM, LS, Lamar PM1203, MZ-4204,-6204
07-01103
$2440.00
Quantity
ERB-8011Clockwise rotation, 24 Volt, 149 tooth - 12/14 Pitch Gear235, 320, 340, 360, 540Lycoming 31B21064, Sky-Tec 149-NL, 149-NL/ec, 149-24, Lamar PM2401, MHB-4010,-4016 thru -4020,-6014,-6016,-6018
07-01099
$2329.00
Quantity
ERB-8012Clockwise rotation, 24 Volt, 122 tooth - 10/12 Pitch Gear235, 290, 320, 340, 360, 540Lycoming 31B21211, Sky-Tec 122-NL/ec,122-24PM, LS, Lamar PM2403, MHB-4015,-6001, MMU-4001,-6001, Delco 1109669
07-01101
$2469.00
Quantity
ELB-8011*Reverse/Counter rotation, 24 Volt, 12/14 Pitch GearLTIO-540, LTIGO-540Lycoming 14214, Sky-Tec 149-NLR/ec*, Lamar PM2404, MHB-4014, MHB-6014
07-02665
$2382.00
Quantity
ELZ-8021*Reverse/Counter rotation, 12 Volt, 12/14 Pitch GearLIO-320, LO-360, LTO-360, LIO-360Lycoming 14215, Sky-Tec 149-NLR, Lamar PM1204, MZ-4220, MZ-6220
07-02666
$2635.00
Quantity
Subtotal $0.00
Add to Wishlist

Overview

E-Drive aircraft starters offer industry-leading, robust, high duty cycle starters in a lightweight package. By utilizing a powerful neodymium permanent motor driven though a self-resetting negative torque-sensing device, the E-Drives provides unparalleled kickback protection, preventing hours of down time and replacement costs. The E-Drive aircraft starter is solenoid engaged, eliminating the need for a Bendix drive. Its low current draw helps maintain good battery life.
    Lightweight neodymium permanent magnet motor
    In line design
    Self-resetting torque limiter for kickback protection
    Internal solenoid engagement
    Drive pinion supported by bearings on both ends

Features

  • Suitable for installation on all Lycoming engines without mods
  • Non-cantilevered pinion support
  • New high performance PM motor
  • No mechanical Bendix
  • Only 9.5 lbs.
  • 3,000 maintenance free starts, minimum
  • Same envelope as existing certified starters
  • 3 year / 1000 operating hours. Whichever occurs first.

Core Return Policy

Any unit being returned for core or warranty core credit shall be, as removed from the engine, complete and not disassembled. No core or warranty core credit will be allowed for automotive units. Units that are rusty or cannot be overhauled for any reason will be classified as scrap, having no value. Units which have been weld repaired, as well as units which have been disassembled and then reassembled with old parts, will also be classified as scrap, having no value. A percentage of the core value will be charged for all missing or damaged parts. At no time will the damaged or missing parts charge on any unit exceed the core value of that unit.

1. Core will only be accepted for credit 12 months from date of invoice.
2. Cores returned in excess of cores invoiced will not be accepted.
3. Cores must be of like purchase, a directly superseded unit or replaced unit when installing an STC'd product.
4. Competitive product cores are acceptable returns.
5. Cores must have a legible data tag for part and serial number verification.

Note: Customer will need to provide core for overhaul in the event our supplier does not have cores available to overhaul.

  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Ted H Verified Purchase

ERZ-8011 HARTZELL NEW E-DRIVE STARTER ASSY

February 23, 2024

Cranks much faster than my old starter!

Don C Verified Purchase

ERZ-8011 HARTZELL NEW E-DRIVE STARTER ASSY

October 6, 2022

Works great. Weighs less than original. Draws less current than a Sky-Tec. No shear pin.

Robert B Verified Purchase

ERZ-8011 HARTZELL NEW E-DRIVE STARTER ASSY

May 13, 2022

The product has yet to be installed. It will be done in April some time. I’m recovering from recent knee surgery.

Gary H Verified Purchase

ERZ-8011 HARTZELL NEW E-DRIVE STARTER ASSY

March 5, 2022

I am upgrading to this starter. So don’t have a similar core. I selected noncore and you added it back. Bullshit. When I send you the code I have, I expect you’ll send my $200 back in a week. Well see

Bryan F Verified Purchase

ERZ-8012 HARTZELL NEW E-DRIVE STARTER ASSY

August 2, 2021

10 lbs lighter!! Airplane turns over faster now, so it’s easier to start!

Stan C Verified Purchase

ERZ-8011 HARTZELL NEW E-DRIVE STARTER ASSY

June 8, 2021

Robert probably has a solenoid issue. Change starter solenoid.

Tom
October 28, 2018

I replaced the tired old starter in my 161 Warrior with the ERZ-8011 E-Drive unit. Wow - what a difference! The cranking rpm is vigorous, but not excessive. Starting is now effortless. Its much lighter, beautifully built and fits perfectly. I could have spent less, but I couldnt be happier with my choice.

Richard H
October 8, 2017

The starter fit with no modifications other than sliding the cable back a few inches. Its about nine pounds lighter than the Delco. Spins the engine over quickly and appears to be well made. Nice unit.

Dan
July 15, 2017

Absolutely amazing starter. It required some baffle modification for a 172M, but otherwise fit perfectly. It is very powerful for its size - cranks the engine like it had no compression in it. Great replacement for the old Delco or Prestolite starters. Very impressed.

Jonathan
February 12, 2014

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the warranty for the ERZ8011?

36 months or 1000 hours, whichever occurs first.

Q: What is the actual weight of ERZ 8011 starter?

Approx 9.3 lbs.
