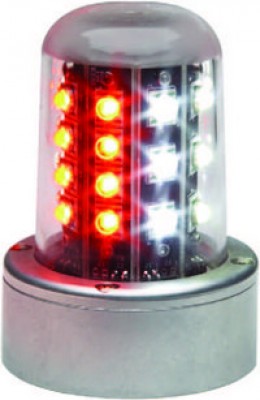

Whelen LED Flashing Beacon Red & White 90520 Series
| Mfg Mode l# | Mfg Part # | Voltage | Mount | Wiring | PN | Price | Buy |
|---|---|---|---|---|---|---|---|
| 9052001 | 01-0790520-01 | 28V | A470A | 12” Flying Leads | 11-07615 | $1142.00 | |
| 9052051 | 01-0790520-51 | 14V | A470A | MateNLock | 11-07616 | $1138.00 | |
| 9052004 | 01-0790520-04 | 28V | 5 Hole | 12” Flying Leads | 11-07617 | $1242.00 | |
| 9052014 | 01-0790520-14 | 28V | 5 Hole | 12” Flying Leads | 11-07618 | $1242.00 | |
| 9052005 | 01-0790520-05 | 28V | 3.75" | 12” Flying Leads | 11-07619 | $1241.00 | |
| 9052055 | 01-0790520-55 | 14V | 3.75" | 12” Flying Leads | 11-09908 | $1241.00 | |
| 9052015 | 01-0790520-15 | 28V | 3.75" | 12” Flying Leads | 11-07620 | $1241.00 | |
| 9052007 | 01-0790520-07 | 28V | 3.75" | MS3102R10SL-3P | 11-07621 | $1242.00 | |
| 9052017 | 01-0790520-17 | 28V | 3.75" | MS3102R10SL-3P | 11-07622 | $1242.00 | |
| 9052008 | 01-0790520-08 | 28V | 5 Hole | MS3102R10SL-3P | 11-07623 | $1242.00 | |
| 9052018 | 01-0790520-18 | 28V | 5 Hole | MS3102R10SL-3P | 11-07624 | $1206.00 |
Overview
|
90520 series LED beacons are FAA TSO compliant self-contained LED anti-collision lights (Ref. Class I - 100 effective candlepower). They are designed to replace strobe lightheads as small as the A470A with available models to replace HR self-contained beacons (HRCFA) or our legacy 70900 LED beacon. Mounting plate included with select assemblies. Refer to models and descriptions below.
ELECTRICAL:
MECHANICAL: |
Specifications
- Current: 0.67 amps Average,
- 3.0 amps Peak
- Weight: 0.65 lbs. (295gm)
- (-01 & -51)
- Lens: Clear polycarbonate
- Dimensions: 2.6” (66mm) Diameter, Exposed Height, 3.74” (95mm)
- (-01 & 51)
Documents
Reviews
This thing is expensive, but its BRIGHT. I lost the lens on our old one and decided to spend the extra money to upgrade. Money well spent. Can put a price on being the MOST visible.
Verified Purchase
Whelen 9052051 Red/White 14VDC
I purchased to replace a broken Whelen Legacy Strobe. My strobe was a split White/Red and I figured it would be a simple install. While the replacement was easy, a few things popped up that were surpising. First, the depth of the light was lower than my old light. I need to add a decent silicone bead to seal the gap between the fin cap and the light. Second, the screw holes that were already in the fin cap did not allow for the perfect alignement of the White/Red split. There is no adjustment to get this aligned perfectly, but it was close enough for now. Third, and most important, I was under the impression that there was no STC and therefore a pilot can replace without IA sign-off and 337. After I received the light I went to Whelen website and found that they had an STC issued for most airframes in 2019. One can argue the regs from there, but it would have been nice to know that there was an STC. Lastly, propbably should have gotten the Orion 360, the light is smaller and seems to use a better lens that disperses the light better.
Well, worth the investment. A lot brighter than my strobe that I had before. And with less noise in my headset, highly recommended
Verified Purchase
Whelen LED Red/White Beacon 14V 9052055
excellent replacement, easy replacement, total satisfaction
Verified Purchase
Whelen LED Red/White Beacon 14V 9052055
Extremely bright and 15 minute install. A bit overpriced but happy with the product.
Verified Purchase
Whelen LED Red/White Beacon 14V 9052055
Verified Purchase
Whelen 9052001 Red/White 28VDC
Drop in replacement for the whelen A470 strobe assembly.
Verified Purchase
Whelen LED Red/White Beacon 14V 9052055
shirring was fast, and the install was easy on my 1968 cherokee
Verified Purchase
Whelen LED Red/White Beacon 14V 9052055
Had a Whelen unit, mfg in 1984, in my C172F. Nearly 40 yrs later the Strobe was inoperative. So ... a search on the Whelen website & an e-mail with photos asking what would work with my system lead me to purchasing the Red/White Beacon from Aircraft Spruce to be used under the fuselage. Easy ordering, sent out virtually the same day and arrived to the wilds of Wyoming within a couple of days. Timed the install with an AP to assist me. Figured out Red to the front White to the back. Then the head scratching deciding how that was accomplished with the (3) hole attachment. Thought the holes would have been drilled symmetrical ... but .... nope. Once figured out then an easy installation. Electrical hookup a breeze ... then ... the test!! All I can say is .... dont look directly at the unit when ON! Its rather blinding. Which is GOOD. So .... an extended 6 week trip will see how it holds up. Should at least be seen @ night.
Verified Purchase
Whelen LED Red/White Beacon 14V 9052055
Oh very impressive lot! Installation was a breeze on my 172. I cannot say anything good about the price though. That price is outrageous.
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Per the supplier: This is a LED replacement but it depends on the aircraft as these are STC'd.
Lower mount has a drain hole in it.
The mount is part of the assembly. Please review the 'Documents' tab. We have posted the dimensional drawing so you can get a better understanding of the assembly.
This unit, p/n 11-09908, does have a 3-3/4" mount that would fit a Whelen A440 style mount, or same size fairing. Base has 3 mounting holes to attach to an A440 or like fairing.
There is no separate power supply required. You can wire this directly from the switch.
The mounting holes are "keyed" so that it can only be mounted red forward.
The STC would cover such an installation.
It is TSO compliant.
The 9052001 comes with a universal mounting adapter plate and will fit the original hole pattern of the 70509 assembly. This should be a very straightforward install.
The max output on the 01-0790520-01 (11-07615) is 2amps. We recommend 1.25 times the max output so a 3 amp breaker should be sufficient. In regards to the wiring the customer can utilize 18 gauge wire 2 conductor.
