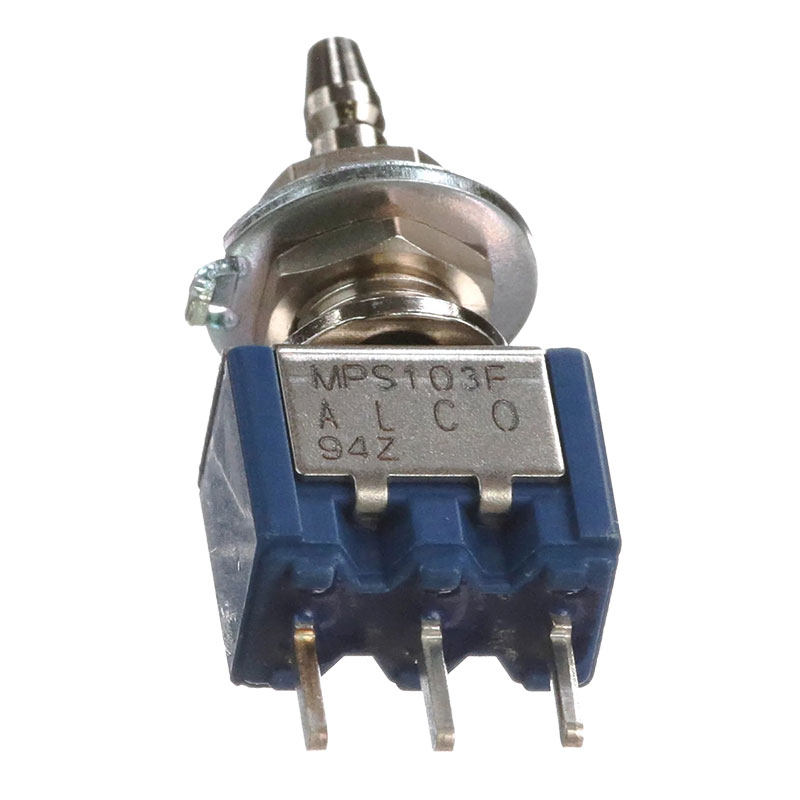

Sub-Miniature Push Button Switch Spdt Mps103Fpc

$37.75/Each
Quantity
Add to Wishlist
Part# 11-18894
MFR Model# MPS103FPC

Overview

This sub-miniature push button switch, with one-piece bushing and case construction, and hex nut. It has a relatively high current carrying capacity (3 amps at 125VAC) and a life expectancy of 25,000 operations at rated current. Momentary type SPDT switch, ideal for use as a mic switch on control wheel.

ON (ON) SPDT Plunger - 3A 250VAC Momentary Contact - .256 inch mounting hole

Specifications

  • Guard Color: Chromed Brass
  • Actuator Material: Nickel-Plated Copper Alloy
  • Actuator Profile: Extended
  • Bushing Style: Threaded
  • Bushing Thread Size: 1/4-40
  • Case Material: Epoxy Resin
  • Ganged: No
  • Number of Actuators: Single
  • Snap Action: With
  • Tactile: No
  • Panel Cutout Size: 6.5 (Diameter) mm / .256 in
  • Actuator Length: 8 mm / .315 in
  • Button Width: 2.8 mm / .11 in
  • Cap Diameter: 10.01 mm / .394 in
  • Cap Height: 8 mm / .315 in
  • Process Sealed: No
  • Low Profile: No
  • Attachment Method: Screw-On
  • Screw & Hole Thread Size: 1/4-40
  • For Use With: C22 Cap
  • Switch Type: Pushbutton
  • Dust Proof: No
