Part# 11-13274
MFR Model# 7025-20

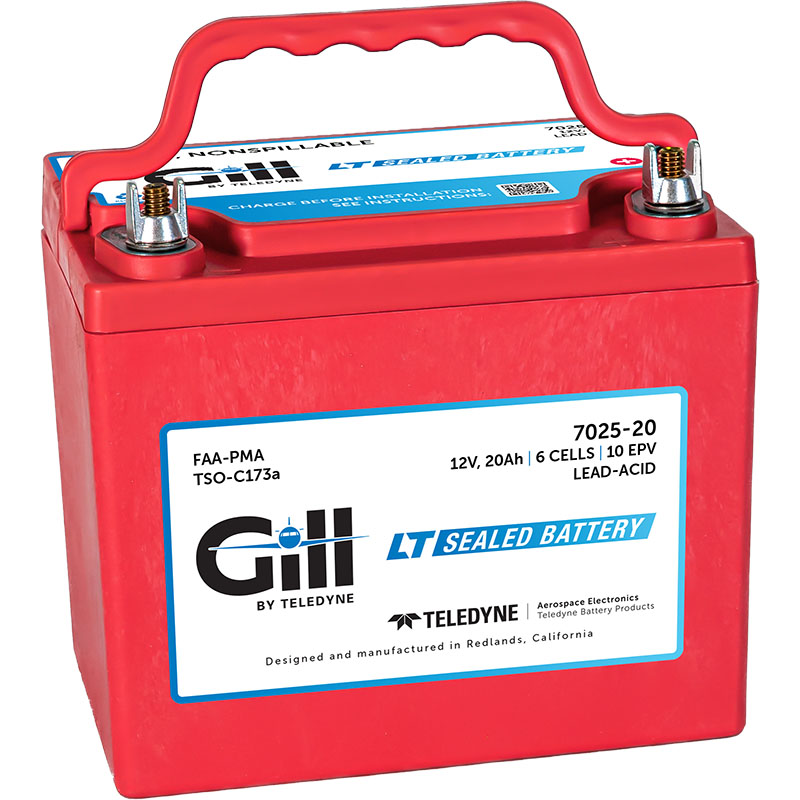

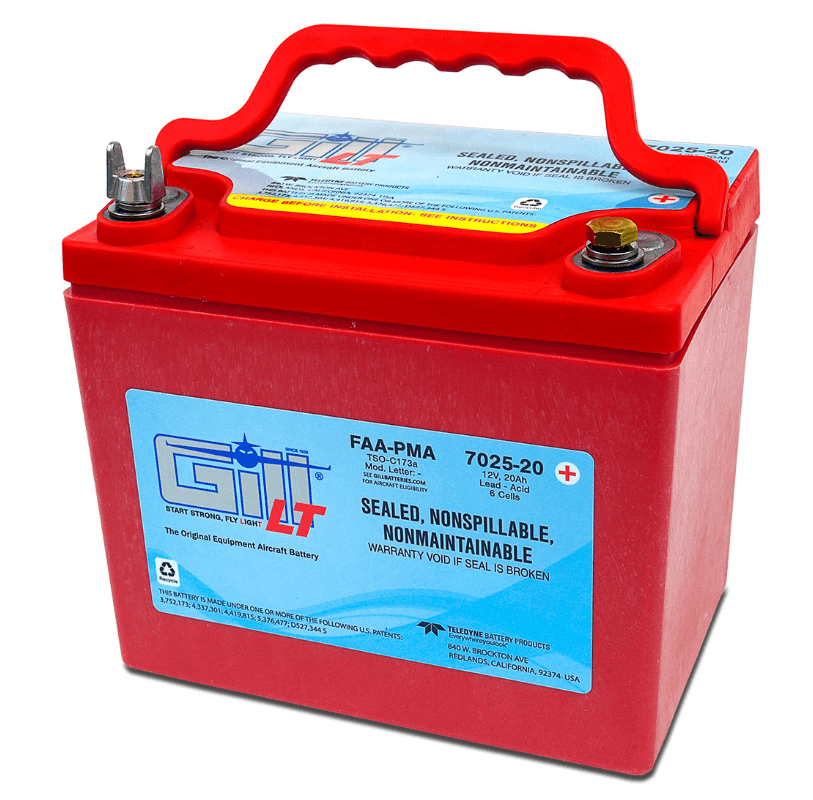

  • The 7025-20 is a “sealed lead acid battery upgrade” to the popular Gill® G-25
  • Maintenance Free – Shipped Fully Charged and No Electrolyte or Water Required
  • Non-Spillable and Proven for Aerobatic Maneuvering
  • 2 Year Factory Warranty After Installation
  • Robust Starts, Higher Residual Power & Faster Re-Charge Times
  • First Capacity Check Not Required Until 18 Months/1800 Hours
  • Cost Competitive and Best Shelf Life in Lead Acid Chemistry
  • Advanced Valve Regulated Lead Acid (VRLA) Design
  • FAA/PMA Approved, TSO Authorized and Tested to DO-160E
  • LT® Series Batteries Are Fully Recyclable
  • LT® Series Batteries Ship Hazmat Exempt
Start strong with the Gill® 7025-20 for your 12V piston powered aircraft. See the application chart to locate your aircraft and review your battery options.

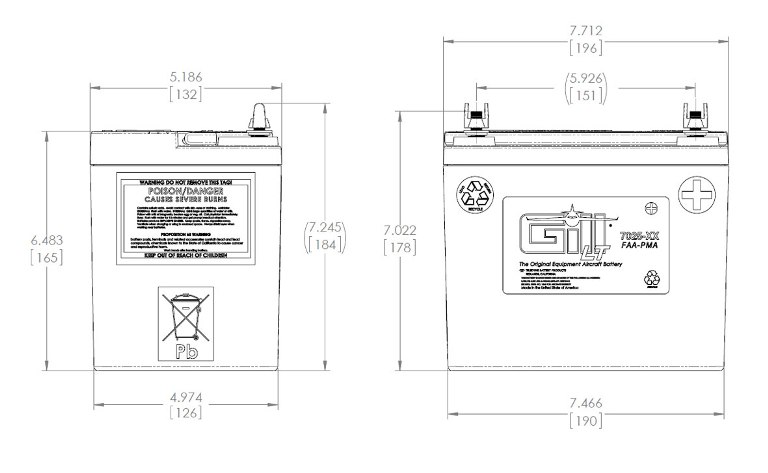

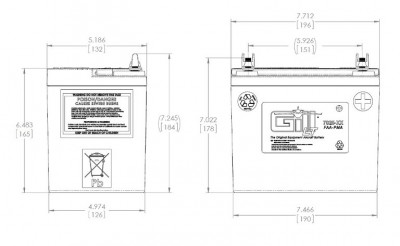

Battery Type Voltage Amp Hours Battery Diagram PDF
Sealed Lead Acid
12 20 Download Full Battery

Application Chart

Manufacturer Model PMA SUP. #
Aerostar PA-60-600, PA-60-601, PA-60-601P, PA-60-602P, PA-60-700P 64
American Champion 7ACA, 7ECA, 7GCBC 64
Beech 19, 23, 24, 55, 58, 77 11, 64
Beechcraft 19A, B19, 23, A23, A23A, B23, C23, A24, A24R, B24R, C24R, E33, E33A, E33C, F33, G33, 35-33, 35-A33, 35-B33, 35-C33, 35-C33A, D55, D55A, E55, E55A, 58, 58A, 58P, 58TC, G58, 77, 95, B95, B95A, D95A, E95, 95-55, 95-A55, 95-B55, 95-C55, 95-C55A 11, 64
Cessna 120, 140, 150, 150A, 150B, 150C, 150D, 150E, 150F, 150G, 150H, 150J, 150K, 150L, 150M, A150K, A150L, A150M, 170, 172, 172B, 172C, 172D, 172E, 172F (USAF T-41A), 172G, 172H (USAF T-41A), 172I, 172K, 172L, 172M, 172 N, F172D, F172E, F172F, F172G, F172 H, F172K, F172L, F172M, F172N, 175, 175B, 175C, P172D, 177, 177A, 177B, 188, 188A, 188B, T188C, 310, 310B, 310C, 310D, 310F, 310G, 310H, E310H, 310I, 310J, 310J-1, E310J, 310K, 310P, 310Q, 320, 340 11, 64
Commander 112, 112TC, 112B, 112TCA 64
Piper (Aerostar 600) PA-60-600, (Aerostar 601) PA-60-601, (Aerostar 601P) PA-60-601P, (Aerostar 602P) PA-60-602P 11, 64
Piper PA-11, PA-36-285, PA-36-300, PA-36-375, PA-38-112, PA-46-350P 11, 64
Piper PA-11, PA-22-108, PA-22-135, PA-22-150, PA-22-160, PA-23-235, PA-23-250, PA-28-140, PA-28-150, PA-28-151, PA-28-160, PA-28-161, PA-28-180, PA-28-181, PA-28-201T, PA-28-235, PA-28-236, PA-28R-180, PA-28R-200, PA-28RT-201, PA-28RT-201T, PA- 32-260, PA-32-300, PA-32R-300, PA-32RT-300, PA-32RT-300T, PA-36-285, PA-36-300, PA-36-375, PA-38-112 11, 64
Socata, S.A. GA- 7 64
True Flight AA-1, AA-1A, AA- 1B, AA-1C, AA-5, AA-5A, AA-5B 64
  • Accessories
  • Customers Also Viewed
  • Frequently Purchased With


Chris W Verified Purchase


September 25, 2021

Jonathan C Verified Purchase


August 21, 2021

Thank for the fast shipping

Ronald R Verified Purchase


August 13, 2021

Good service arrived quickly thanks

Richard S
May 4, 2021

Replaced a battery that was getting tired. Now cranks very strongly. This is my second Gill (different airplane) and I am happy with both.

Scott S
March 29, 2021

Gill-25 battery, good quality and it shipped quickly

Bob K
February 4, 2021

I like the cost and they work great.

June 7, 2020

received promptly and in good shape

Charles L
May 12, 2020

Packaged well, received in a very timely manner. Works great.

Ron P
May 5, 2020

It works!

Joe C
April 30, 2020


Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: How much does the Gill LT 7025-20 sealed battery weigh?

This battery weighs 23 lbs.

Q: Do I need to charge the Gill LT 7025-20 sealed battery before I use the new battery?

These batteries will ship charged and ready to go out of the box.

Q: Is this the replacement battery for the G-25S?

Yes, this is the new LT series Gill that replaces the old G-25S. The applications are the same for both batteries.

Q: Where do I find the voltage for the LT 7025-20 battery?

It is a 12V battery. The information is listed in the application guide tab on our web site.

Q: Is there a maintainer that is recommended to be used on the Gill line of batteries? Particularly this battery, LT 7025-20?

Gill offers a 12V charger. Our part number is 11-09985. See Accessories tab.

Q: What is the CCA for this Gill LT 7025-20 battery?

The Gill batteries are now starting to be changed from CCA to now being rated in IPP and IPR ratings.
IPP:875 amps @ 75 Degrees F / 23 Degrees C | 635 amps @ 0 Degrees F / -18 Degrees C | 440 amps @ -22 Degrees F / -30 Degrees C
IPR: 700 amps @ 75 Degrees F / 23 Degrees C | 430 amps @ 0 Degrees F / -18 Degrees C | 320 amps @ -22 Degrees F / -30 Degrees C

Q: What are the terminal diameters on the Gill LT 7025-20 batteries?

The diameter is 15/16-18.

Q: What is a capacity check at 18 months?

After installation of a new battery, Gill requires a capacity check to be performed at 1,800150 hours or 18 months, whichever comes first, with subsequent capacity checks performed every 900150hours or 9 months. Please refer to aircraft manufacturers guidelines for further clarification.

Q: Can this Gill LT 7025-20 battery be installed on C172A?

Yes, this 7025-20 battery fits the Cessna 172 (172 A - R, 172 S)

Q: Is this Gill LT 7025-20 an AGM or gel cell?

All Gill LT sealed batteries are AGM.
