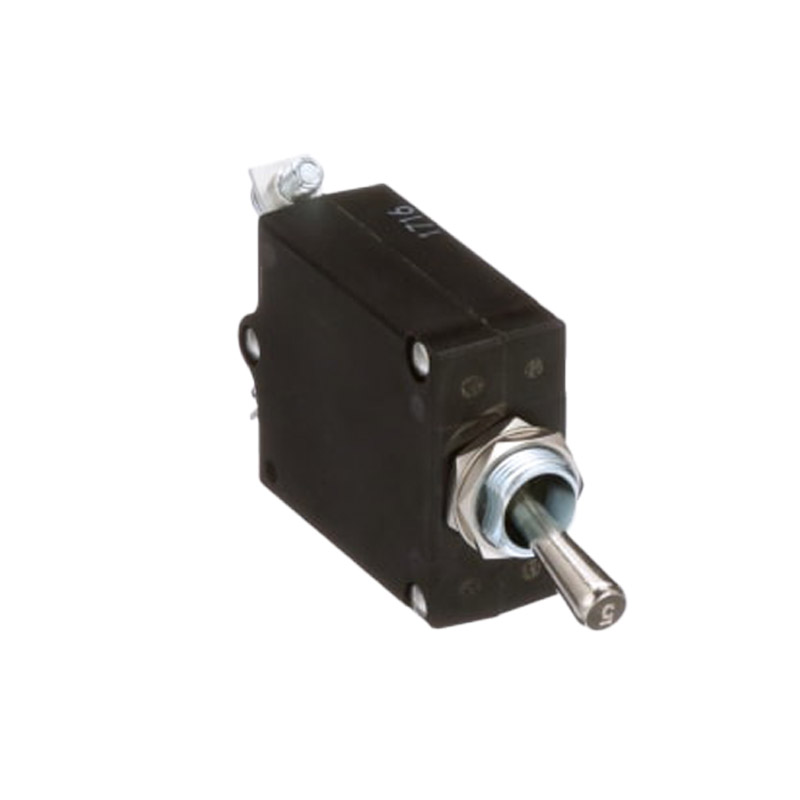

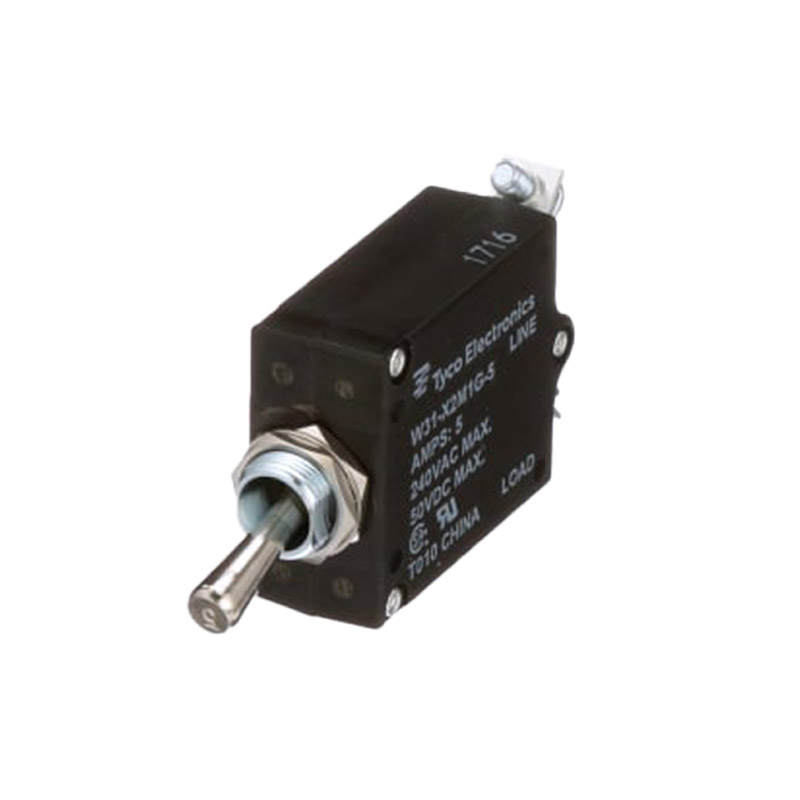

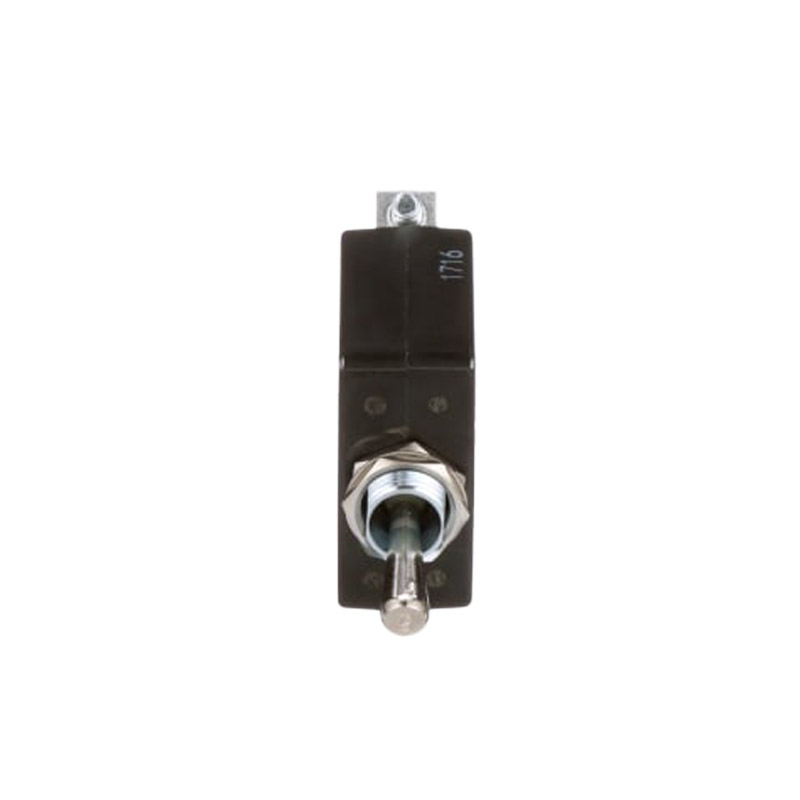

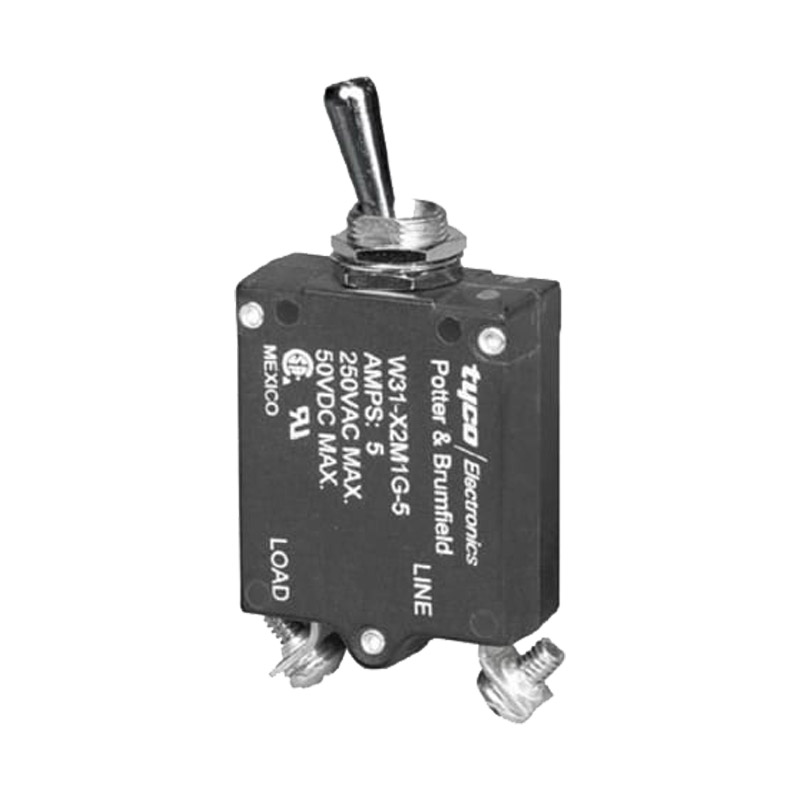

Circuit Breaker W31-X2M1G-5

$119.75/Each
Quantity
Add to Wishlist
Part# 11-20774
MFR Model# W31-X2M1G-5

Overview

W23/W31 Series, Toggle or Push/Pull Actuator Thermal P&B Circuit Breaker: 0.5 amp to 50 amp ratings may be used as on/off switch. Cannot be reset against overload. W23 has visible trip indicator band. Screw termination. Trip-free operation.

Specifications

Product Attribute Attribute Value
Current Rating 5 A
Overload Thermal
Alternate Mfr Part Number 4-1393247-2
DC Voltage 50 V
Number of Poles 1
Maximum Operating Temperature 65 °C
Minimum Operating Temperature -40 °C
Mounting Hole Size Dia. 0.47 x H 0.385 in
Mounting Type Chassis, Rear Mount
Standards UL 1077 Recognized
Termination screw
Trip Time 6 to 22 s
Color Black
Actuator Type Toggle
Button Color Silver
AC Voltage 240 V
Voltage Rating 240 V, 50 V
Manufacturer TE Connectivity
Manufacturer Part Number W31-X2M1G-5
