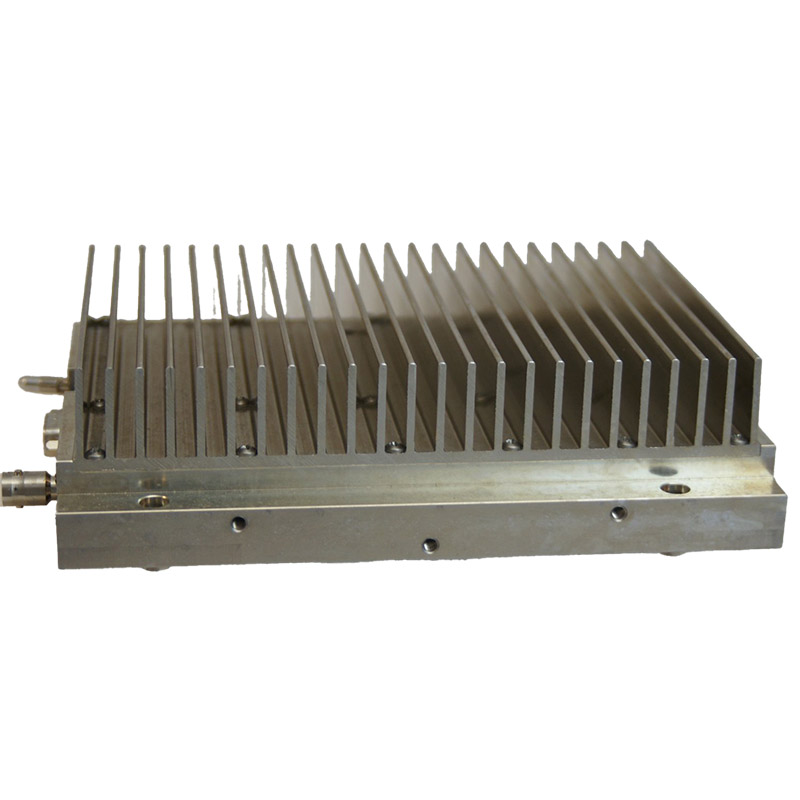

Val Avionics AWOS 2000: VHF Transmitter

$3008.00/Each
Quantity
Add to Wishlist
Part# 11-11459
MFR Model# 0800110-1

Overview

The AWOS 2000 is a 760-channel communication transmitter designed to provide one-way communication within the frequency range of 118.000 MHz to 136.975 MHz in 25 kHz increments.

The AWOS 2000 communication transmitter was designed to conform to FAA Advisory Circular 150/5220-16C for use as a ground-based VHF transmitter for Automated Weather Observing Systems (AWOS).

Specifications

  • Physical dimensions: L: 7.45" W: 5.9″ H: 2.3″
  • Weight 3.00 lbs (1.36 kg)
  • Voltage: 13.75 ± 2.5 Vdc
  • Current: standby 250 mA; Transmit 2.0 A
  • Frequency range: 118.000 to 136.975 MHz
  • Channel spacing: 25 kHz
  • Frequency stability: .001%
  • Modulation adjustable (50 to 95% typical)
  • Temperature range -35 to +60 Degrees Celsius
  • Transmit power: 2.5 watts
  • Duty cycle: 100%
  • Emissions category: 6K00A3E
