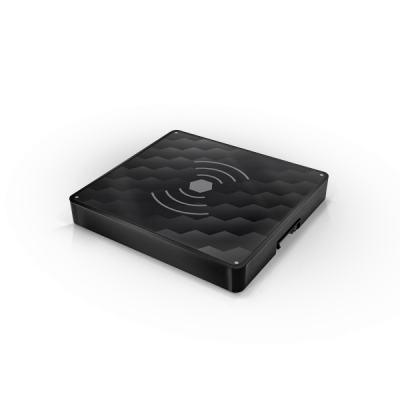

True Blue Power TW15 Wireless Charger 15W - MagSafe Compatible

0 Reviews 0 Answered Questions
$913.00/Each
Quantity
Add to Wishlist
Part# 10-07771
MFR Model# 6430015-22

Overview

Deliver up to 15 watts of power to smartphones, wireless headphones, and other personal electronics with the TWC15 Series Wireless Chargers. The quick-charging 6430015-22 is MagSafe® compatible, Qi/Qi2 compliant, and can be mounted in a variety of locations throughout the aircraft.

Features

  • Output Power: 15 watts (maximum)
  • Input Power: 26 watts (maximum)
  • Input Voltage: 12 – 32 VDC (2.2A at 14 VDC and 0.9A at 28 VDC)
  • Charging Depth: Up to 0.1” (2.5 mm)
  • Charging, Charge Complete and Fault status indication
  • Short circuit, power surges, overload, over-temperature, reverse polarity and foreign object detection protection
  • Ideal for in-seat, cabin and cockpit applications
  • MagSafe® compatible
  • Designed and built in Wichita, Kansas, USA
  • Two-year limited warranty

Specifications

  • Output Power: 15 watts (maximum)
  • Input Power: 26 watts (maximum)
  • Input Voltage: 12 – 32 VDC (2.2A at 14 VDC)(0.9A at 28 VDC)
  • Charging Depth: Up to 0.1” (2.5 mm)
  • Weight: 5.0 ounces (141 grams)
  • Dimensions: 2.28″L x 2.45″W x 0.39″H
  • Mating Connector Kit: P/N 9019739-1 (included)
  • Mounting: (4) #2-56 threaded holes
  • Installation: In-seat, cabin and cockpit
  • Case: Anodized aluminum, black
  • Certification:
  • FAA TSO C71
  • RTCA DO-160G
